Button box with 3-position selector with return NYK3-S34BK| ADAJUSA | price
Button box with 3-position selector with return NYK3-S34BK| ADAJUSA | price

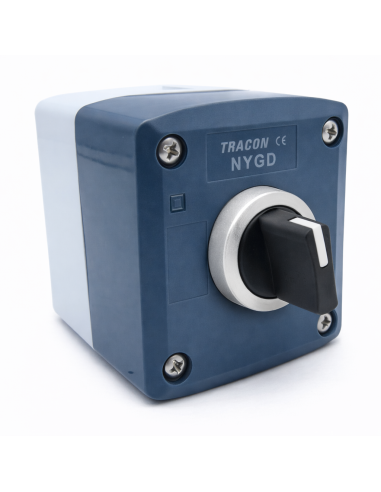

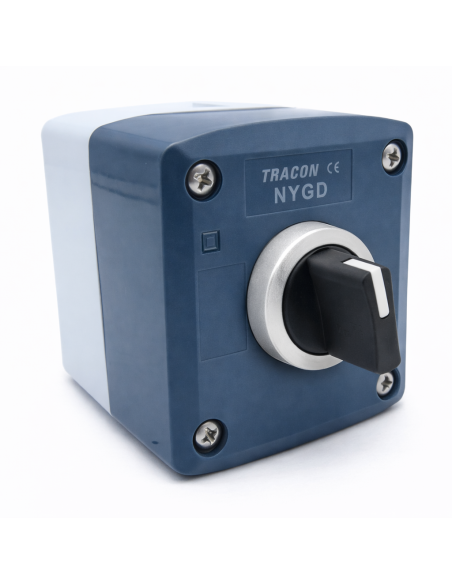

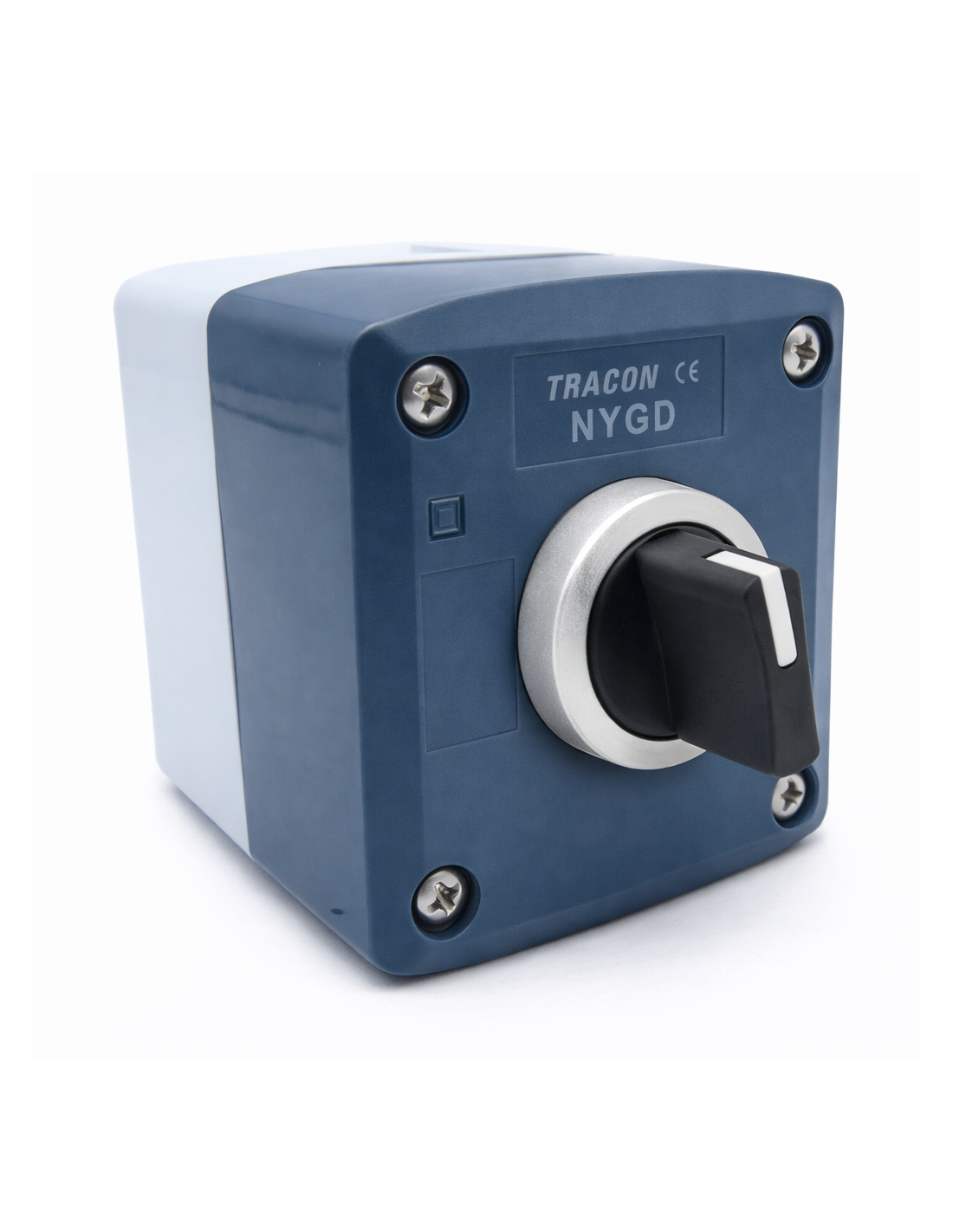

Box with 3-position selector with full return - NYG Series

€10.04 Tax included

8.16 tax excl.

PK-NYK3-S34BK

Box with 3-position selector with full return. Plastic selector three-position selector with return with two open contacts 2(NO), box made of high strength plastic gray and dark gray front.


Ordering Number: PK-NYK3-S34BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with three-position selector with full return. Plastic selector with short three-position handle with return with two open contacts (2NO), the return occurs to the central position both from the left and right side position. Box made of high resistance plastic in gray color and front in dark gray color. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S34BK
  • Pushbutton type: 3-position selector with return
  • Pushbutton Color: Black
  • Inscription: None
  • Contacts2 open (2NO)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.
