Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price
Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price

Box with 3-position selector with full right return - NYG Series

€10.14 Tax included

8.24 tax excl.

Instead of €10.14

PK-NYK3-S32BK

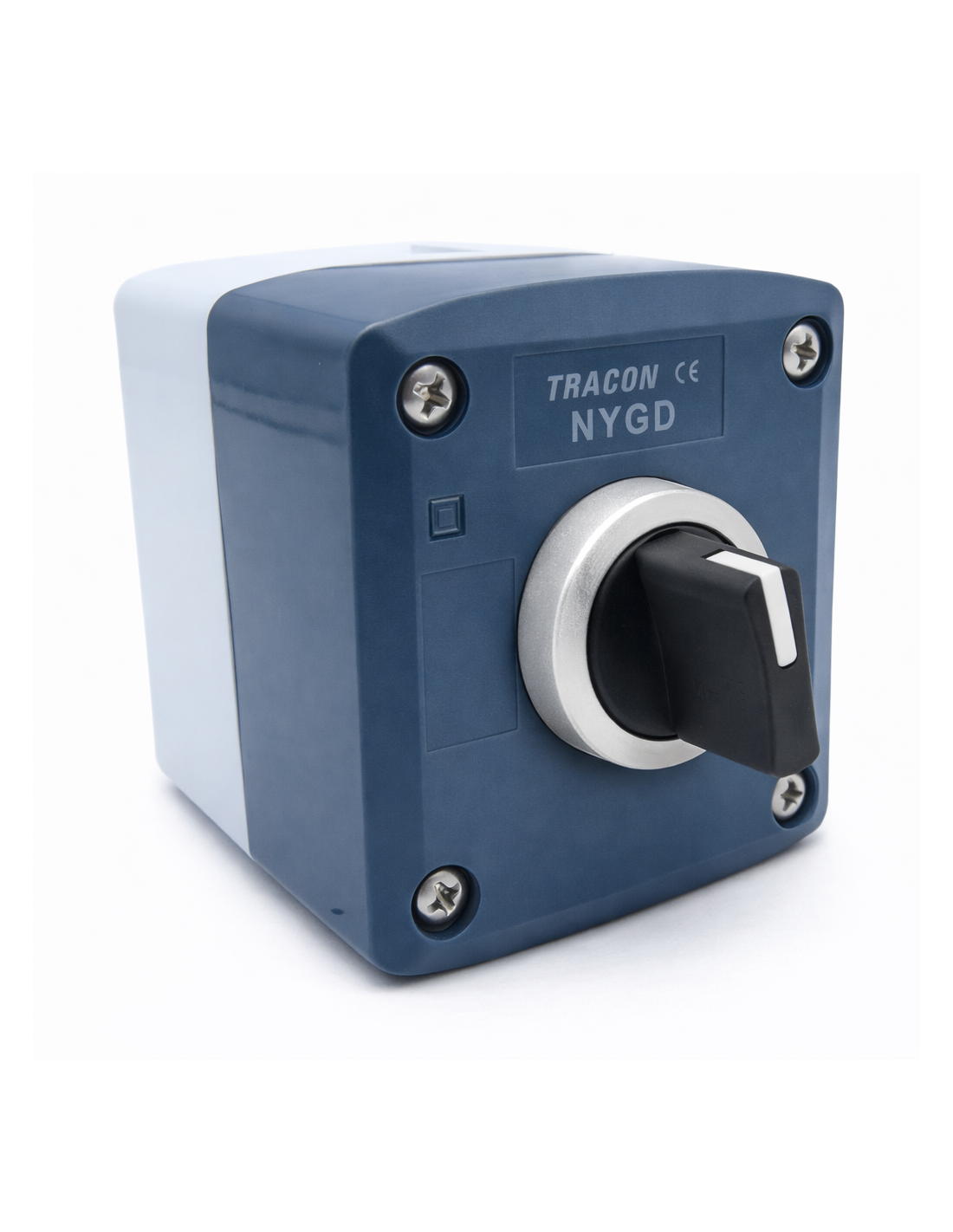

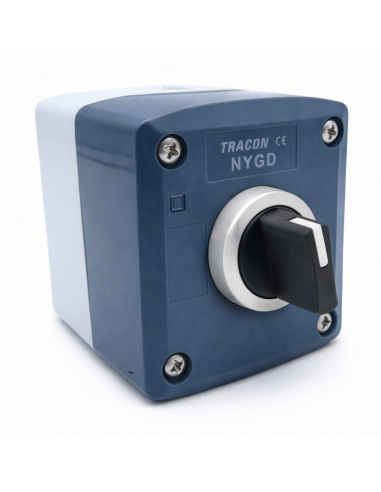

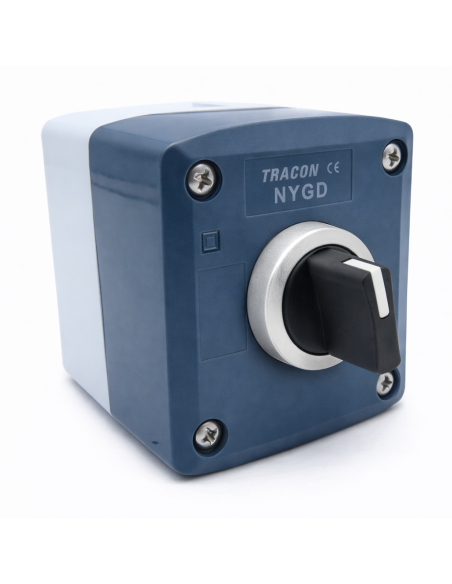

Box with 3-position selector with full return. Plastic selector of three positions with return in the position of the right side remaining fixed in the left and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of gray color and front in dark gray color.


Ordering Number: PK-NYK3-S32BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with three-position selector with full return. Plastic selector with short three-position handle with return with two open contacts (2NO), the return occurs in the position on the right side, remaining fixed in the left and central position. Box made of high strength plastic gray and dark gray front. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S34BK
  • Pushbutton type: 3-position selector with return
  • Pushbutton Color: Black
  • Inscription: None
  • Contacts2 open (2NO)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.
