Button box with stop pushbutton "O" NYG3-P2| ADAJUSA | price
Button box with stop pushbutton "O" NYG3-P2| ADAJUSA | price

Box with stop pushbutton with full "O" inscription - NYG Series

€8.84 Tax included

7.19 tax excl.

PK-NYG3-P2

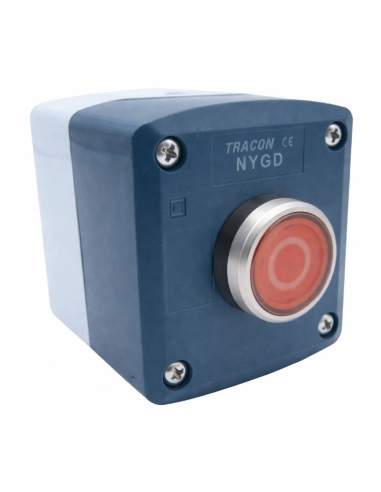

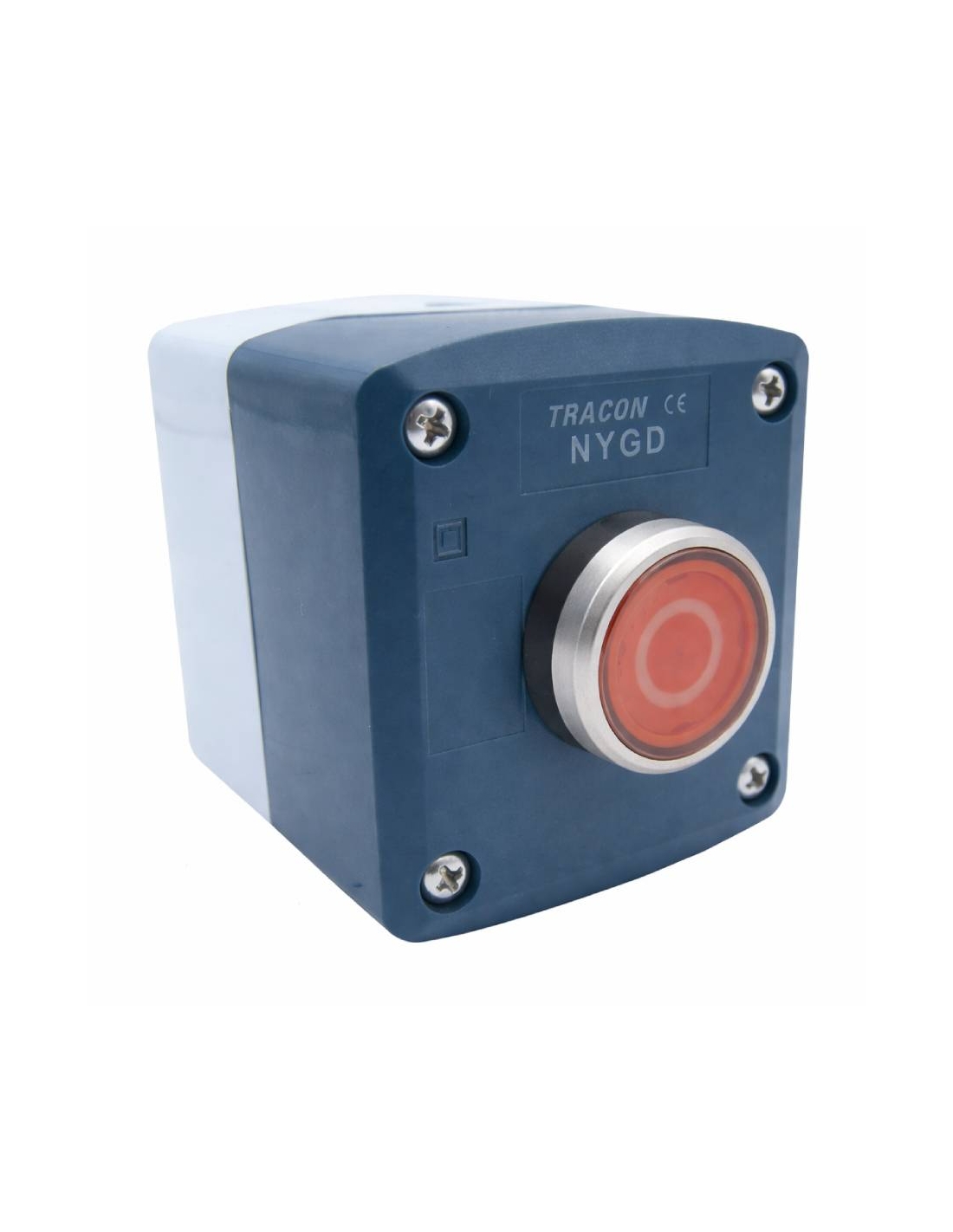

Box with stop push button with full "O" inscription. Red plastic push button with a closed contact (1NC) and case made of high resistance gray plastic and dark gray front.


Part number: PK-NYG3-P2


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with stop push button with full "O" inscription. Red plastic push button with one closed contact (1 NC) and case made of high resistance plastic in grey color and dark grey front. Degree of protection IP65 from the front side.

The enclosure has space for mounting an additional contact, open or closed, on the push button. The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-P2
  • Push button type: Stop button
  • Push button color: Red
  • Inscription: "O"
  • Contacts1 NC. Possibility to mount additional contacts
  • Box in light grey/dark grey plastic
  • Drilling diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.
