Button box with I-O start-stop pushbuttons and red Tracon| ADAJUSA | price
Button box with I-O start-stop pushbuttons and red Tracon| ADAJUSA | price

Box with pilot light and full on-off (I-O) pushbuttons - NYG Series

€18.66 Tax included

15.17 tax excl.

Instead of €18.66

PK-NYG3-P1-P2-AD22/R/230

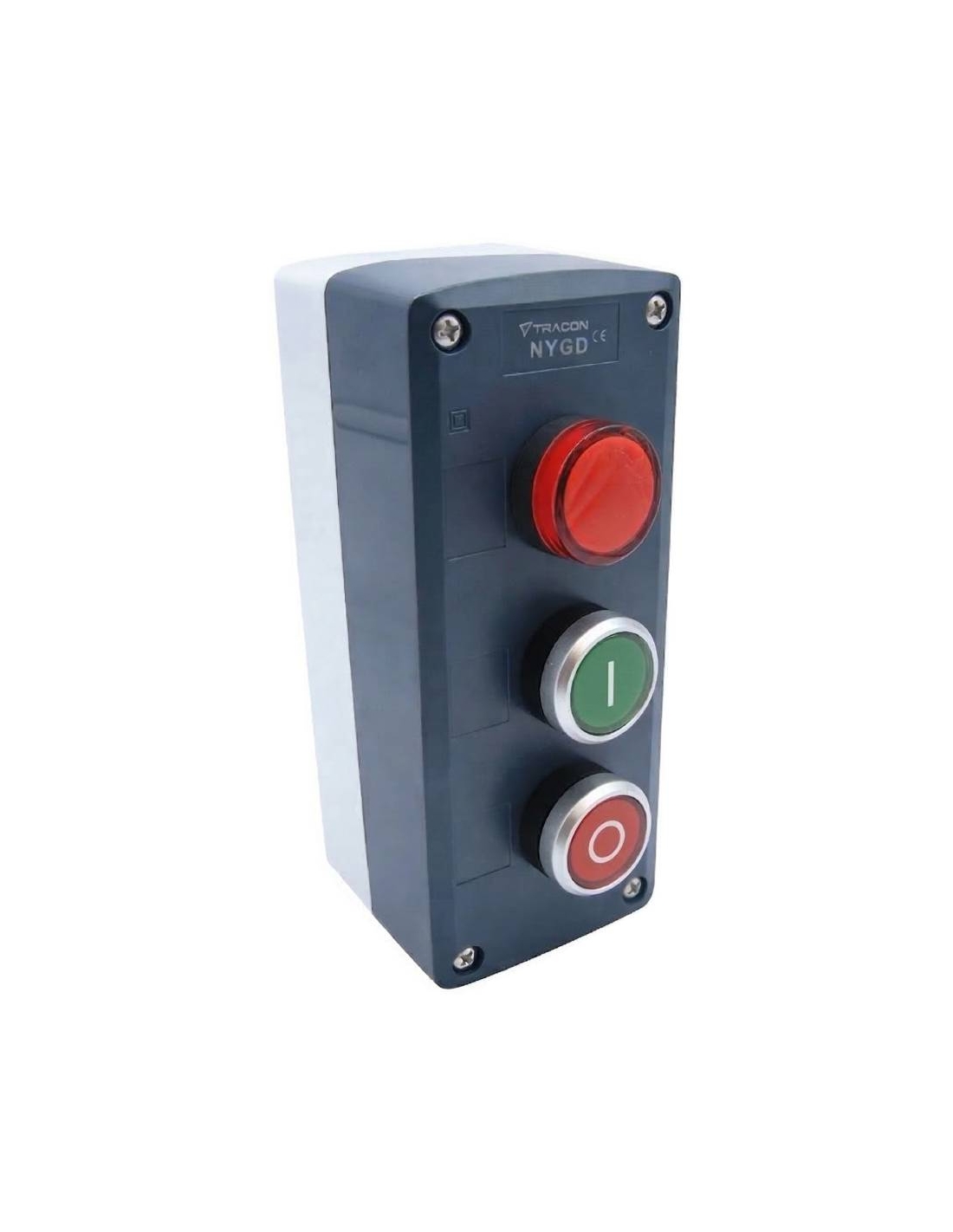

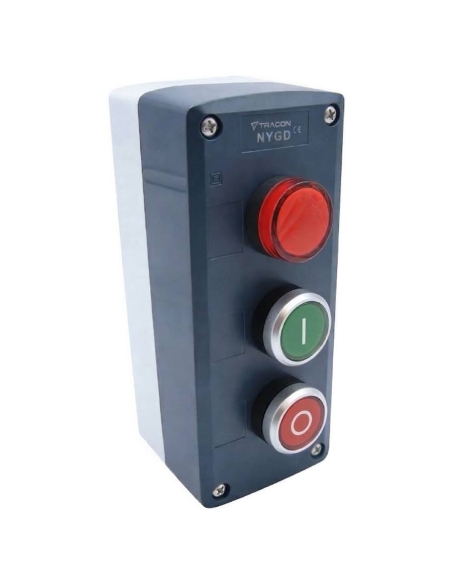

Box with start-stop pushbuttons and complete red pilot light. Green push button with "I" inscription with an open contact (1NO) and red push button with "O" inscription with a closed contact (1NC), luminous red pilot light 230Vac. Box made of high resistance grey plastic and dark grey front.


Referencia: PK-NYG3-P1-P2-AD22/R/230


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with plastic start-stop push buttons with inscription I-O and red pilot light. Green start-stop push button marked "I" with one open contact (1NO) and red stop push button marked "O" with one closed contact (1NC), luminous red pilot light 230Vac. Box made of high resistance plastic in grey color and dark grey front. IP65 protection degree from the front side.

The enclosure has space for mounting additional contacts, open or closed, on the pushbuttons. The maximum number of contacts per element is 2.

The dimensions of the box are: 170x71x65.5mm



The supply does not include the mounting, the box and the push buttons are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Referencia: PK-NYG3-P1-P2-AD22/R/230
  • Pushbutton type: Start-Stop / Pilot red
  • Pushbutton color: Green-Red
  • Inscription: I-O
  • Contacts1 NO + 1 NC. Possibility to mount additional contacts
  • Box in light gray/dark gray plastic
  • Drilling diameter: 22mm
  • Nominal working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • LED pilot voltage: 230 Vac
  • Nominal current (In) Led pilot: ≤16mA
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from the front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.
