Intensity transformer 200/5A size 30

€9.79 Tax included

€8.09 tax excl.

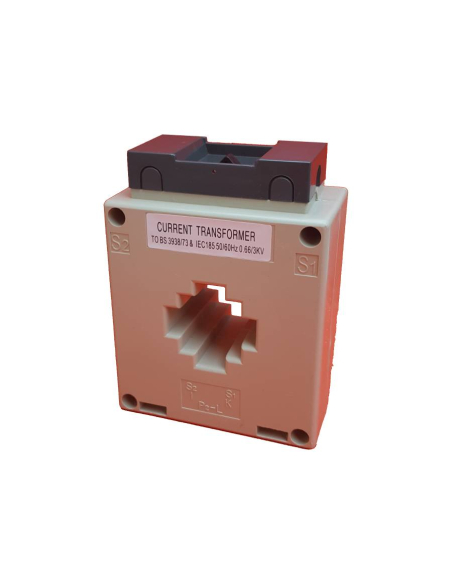

Window typecurrent transformer size 30 for use with measuring and control instruments. Encapsulated in ABS and mounted on screws. Class 1 (Maximum error ±1%). Current transformer ratio 200/5A.

. Reference: MSQ-30 200/5A

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Current transformer, with 200/5A ratio, to be used with measurement and control elements. Encapsulated on plastic material (ABS) for indoor mounting.

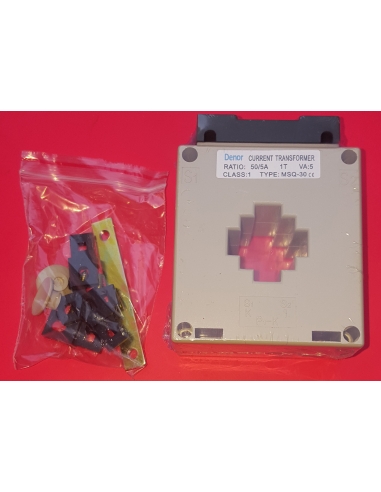

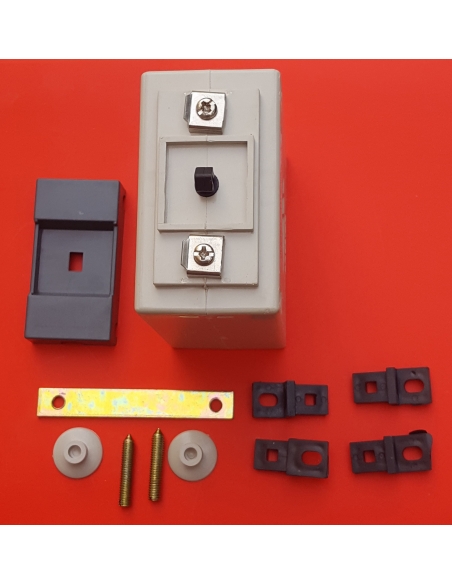

This transformer is window type, the conductor passes through the central hole, it can be cable or rod. It is supplied with accessories for mounting on mounting plate.

The usual application is for measuring and control instruments, providing a transformer ratio of 200/5A, i.e., when a current of 200A circulates through the central conductor, 5A will circulate through its secondary.

This current transformer is not valid for safety applications.

Instalación de transformador de intensidad

It is advisable to connect one of the output terminals to ground to avoid the appearance of high voltages in the secondary.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Type: MSQ-30.
  • Ref: MSQ-30 200/5A
  • Ratio: 200/5A.
  • Type: Window.
  • Class 1 (Maximum error ±1%).
  • Current through primary (conductor): 0 to 200A.
  • Secondary current: 0 to 5A.
  • Secondary power: 5VA.
  • Maximum voltage: 600Vac.
  • Frequency: 50/60Hz.
  • Enclosure: on fire retardant ABS.
  • Mounting: On brackets (included) for M4 screws.
  • Degree of protection: IP-40.
  • Insulation grade: Class E.
  • Temperature range: -20ºC to 70ºC.
  • Weight: 600g.

Dimensiones transformador de intensidad MSQ-30

Material for professional use, install in compliance with the regulations in force at the place of installation.
