Digital Ammeter 48x48 DP-48A

€43.06 Tax included

€35.59 tax excl.

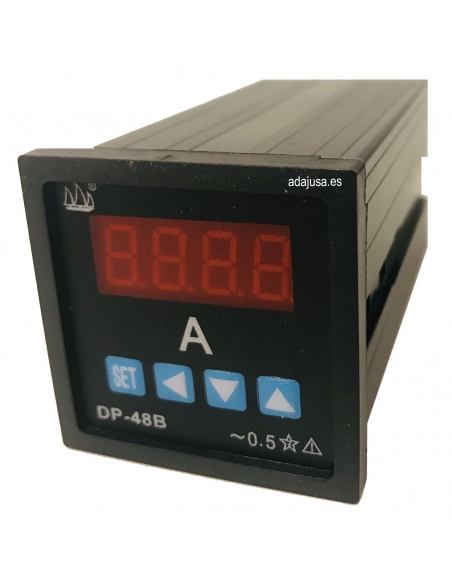

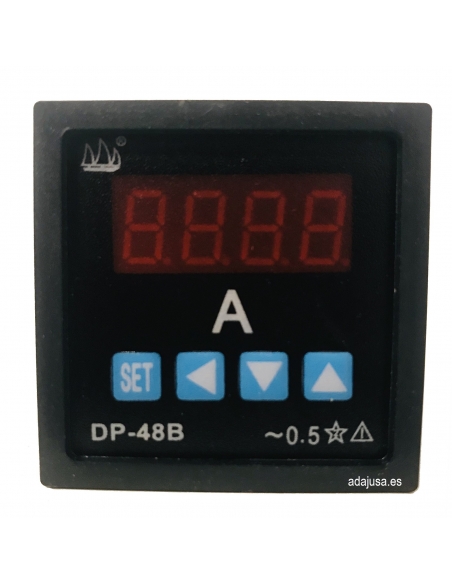

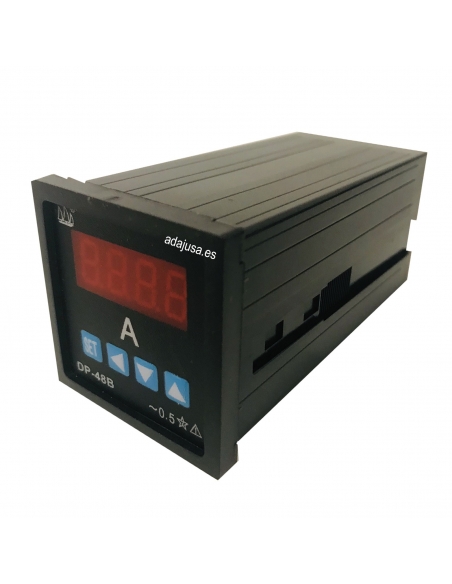

48x48mm panel mount digital ammeter for panel mount AC, large LED display for easy reading. Easy parameterization from the front keyboard.

Direct measurement between 0 and 5A. Expandable by using intensity transformers.

Ref: DP-48A

simbolo eléctrico amperímetro

No queries yet, leave the first!
Privacy
Shipments
Returns


AC measuring instrument (Ampmeter), for panel mounting. With large display and illuminated in red.

Configurable directly from the front keys.

The instrument can directly measure intensities between 0 and 5A. and higher using an intensity transformer. The scale background can be adjusted directly from the keys on the front.

specifications:

  • Manufacturer/Supplier: Denor
  • Ref: DP-48A
  • Measurement type: AC current current.
  • Direct measurement: 0 ÷ 5 A.
  • Indirect measurement (via intensity transformers): xA/5A; xA/1A.
  • Supply voltage: 230Vac ± 10%, 50/60 Hz.
  • Consumption:
  • Reading: Using red LED display:
  • Number of digits: 4 (9999).
  • Measurement type: Class 0.5.
  • Accuracy: ±0.5% ±2 digits.
  • Dielectric resistance: Insulation voltage: 1.5kV ac between measurement terminal and power supply.
  • Insulation resistance: ≥ 100M. (500Vdc).
  • Working temperature: -10oC ÷ 50oC.
  • Storage temperature: -20oC ÷ 70oC.
  • Humidity level: 5% ÷ 80% RH non-condensing.
  • Connection type: screw connector.
  • Dimensions: 48x48x90mm.

Typical installation with or without intensity transformer.

Instalación eléctrico amperimetros

Typical intensity transformation ratios (most common):

  • Measured up to 50A. 50/5 intensity transformer.
  • Measured up to 100A. 100/5 intensity transformer.
  • Measured up to 200A. 200/5 intensity transformer.
  • Measured up to 400A. 400/5 intensity transformer.
  • Measured up to 600A. 600/5 intensity transformer.
  • Measured up to 1000A. 1000/5 intensity transformer.
  • Measured up to 2000A. Intensity transformer 2000/5.
