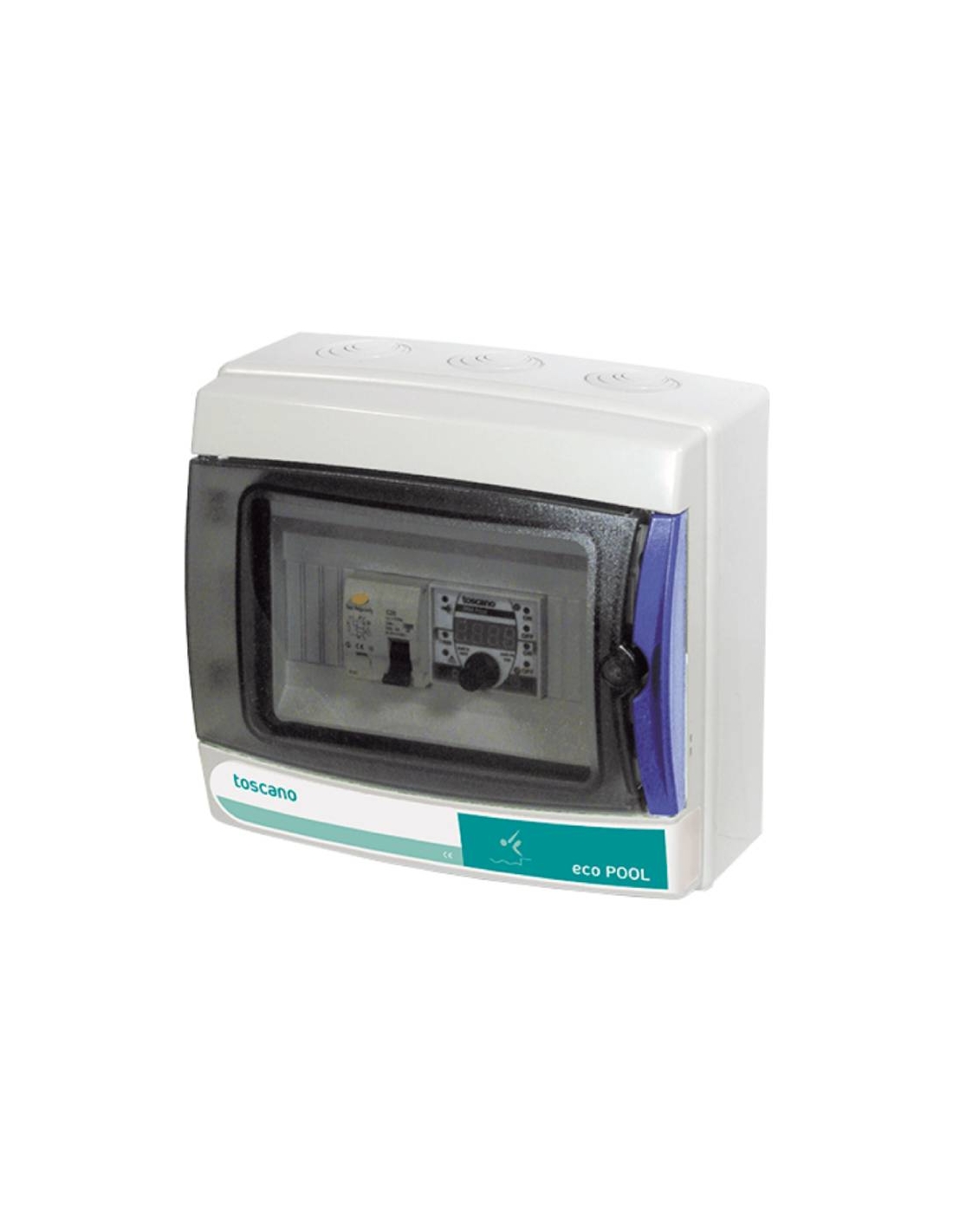

Pool control panel ECO-POOL single-phase pump - Toscano

€173.64 Tax included

€143.50 tax excl.

Protection and control panel for swimming pool purifiers, 1 single-phase pump up to 14A. The panel includes the TPM-POOL module that has two time programs for filtering control and a program for lighting control, includes all the necessary protection for the proper protection of the pump (overload and anti-blocking), manual control on/off of the pump, manual control on/off of the spotlights and change of RGB scenario and integrated frost protection by probe (not included in the scope of supply). Degree of protection IP65.


Possibility of remote control via Bluetooth or Wifi. These accessories must be purchased separately, Bluetooth control (TPOOL-B), Wifi control (TPOOL-W).


Part number: ECO-POOL-230

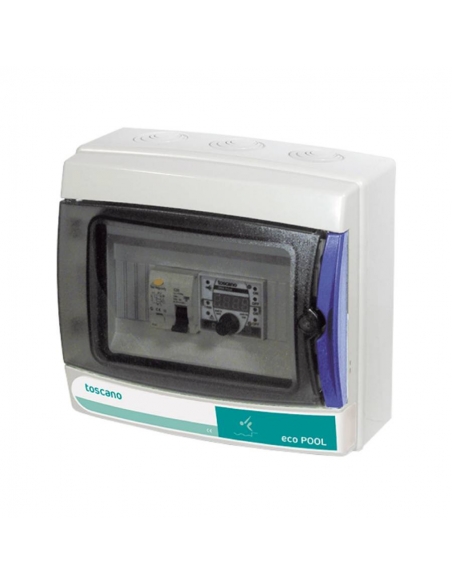

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated .

No queries yet, leave the first!

Modular protection and control panel for swimming pool purifiers with pump single-phase up to 14A. Its IP65 degree of protection allows its installation outdoors guaranteeing the maximum protection of its elements.


The panel includes the TPM-POOL digital control and protection module that has multiple functions for the adequate and safe protection of the pump. Its operation is intuitive and has the following functions: two time schedules for filtering and one schedule for the control of lighting or spotlights and RGB scenario change (both totally independent), manual on/off forced control of the pump and lighting. It incorporates complete protection for the safety of the pump: self-calibration test to set the limit of protection against overload (20% above calibration), preventive system of blocking the shaft of the pump (anti-blocking protection) and failures in the suction.


It also has a voltage free contact 250V / 5A max. for uses such as alarm, low flow, cleaning robot, dosing pumps, electrolyzer, UV lamps, heat pump, etc.. The connection of an external temperature probe (not included in the scope of supply) will allow the possibility of starting the treatment plant when the ambient temperature is very low (frost protection).

The ECO-POOL control panels not only allow and guarantee the complete safety and protection of the pump, but also offer safety to the users in charge of handling the control elements as well as to the bathers.


The control panel is supplied already pre-wired and with all the elements already assembled.

Possibility of remote control via Bluetooth or Wifi. These accessories must be purchased separately, Bluetooth control (TPOOL-B), Wifi control (TPOOL-W).


Technical characteristics :

  • Manufacturer: Toscano
  • Reference: ECO-POOL-230
  • Supply voltage: 230VAC+N - 50/60Hz
  • Output pump: 14A
  • Spotlights output: 230VAC / 5A (*)
  • LED lights: Filtering programs 1/2, Pump running, Spotlights program, Auxiliary output, Current time, Alarm
  • Protections: Overload, Anti-blocking pump
  • Overload protection: 20% above calibration
  • 4-digit LED display: Current time, Filter 1/2 programming, Spotlight programming, Auxiliary output status, Alarms
  • Auxiliary output: contact voltage free 250V / 5A max. (alarm, low flow, cleaning robot, dosing pumps, electrolyzer, UV lamps, pump heat, etc.)
  • Minimum intensity of the pump: 0,5A
  • Operating temperature: -10º...+55ºC
  • Degree of protection: IP65
  • Optional Bluetooth control accessory: TPOOL-B
  • Optional Wifi control accessory: TPOOL-W



Connection:



(*) NOTE: ECO-POOL-400 control panels do not include a toroidal transformer for spotlight control. These panels do not have space for subsequent installation, the transformer must be installed outside the panel.

We have other models of ECO-POOL panels with toroidal transformer included for lighting control .



Dimensions (mm):






For more information you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation .
