€42.63 Tax included

€35.23 tax excl.

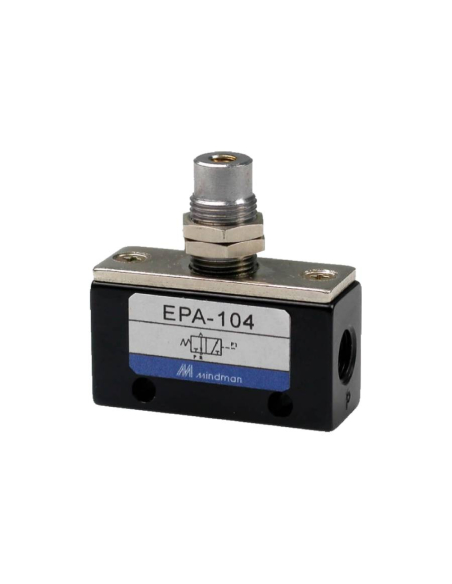

Pneumatic button , mechanically actuated pneumatic valve , 1/8 3-way thread. The limit switch is activated by a manual button with 2 fixed positions.

Reference: 281EPA104



Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Pneumatic limit switch, pneumatic valve with mechanical actuation by means of a metallic button. The limit switch connections are by means of a 1/8” thread. The valve is 3-way normally closed (NC), when it is not actuated there is no pressure at the outlet and the outlet remains connected to the exhaust, when it is actuated air pressure appears at the outlet.

Technical characteristics:

  • Manufacturer: Mindman .
  • Manufacturer reference: EPA-104.
  • valve type: 1/8-3/2 bistable.
  • Thread type: G 1/8".
  • Type of activation: Manual button 2 fixed positions.
  • number of lanes: 3.
  • Fluid type: Air pressure, with or without lubrication.
  • Working pressure: 0÷9 Kgr/cm².
  • Maximum pressure: 9 Kgr/cm².
  • Working temperature: -5 to 60ºC.
  • Material: Aluminum and steel.
  • Weight: 71g.



Material for professional use, install in compliance with the regulations in force at the place of installation.


For more information, you can download the technical sheet by clicking on the "Annexes" tab.
