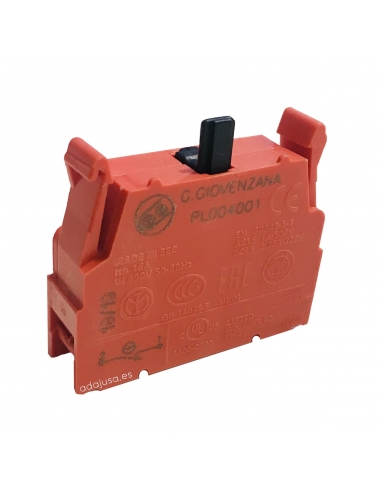

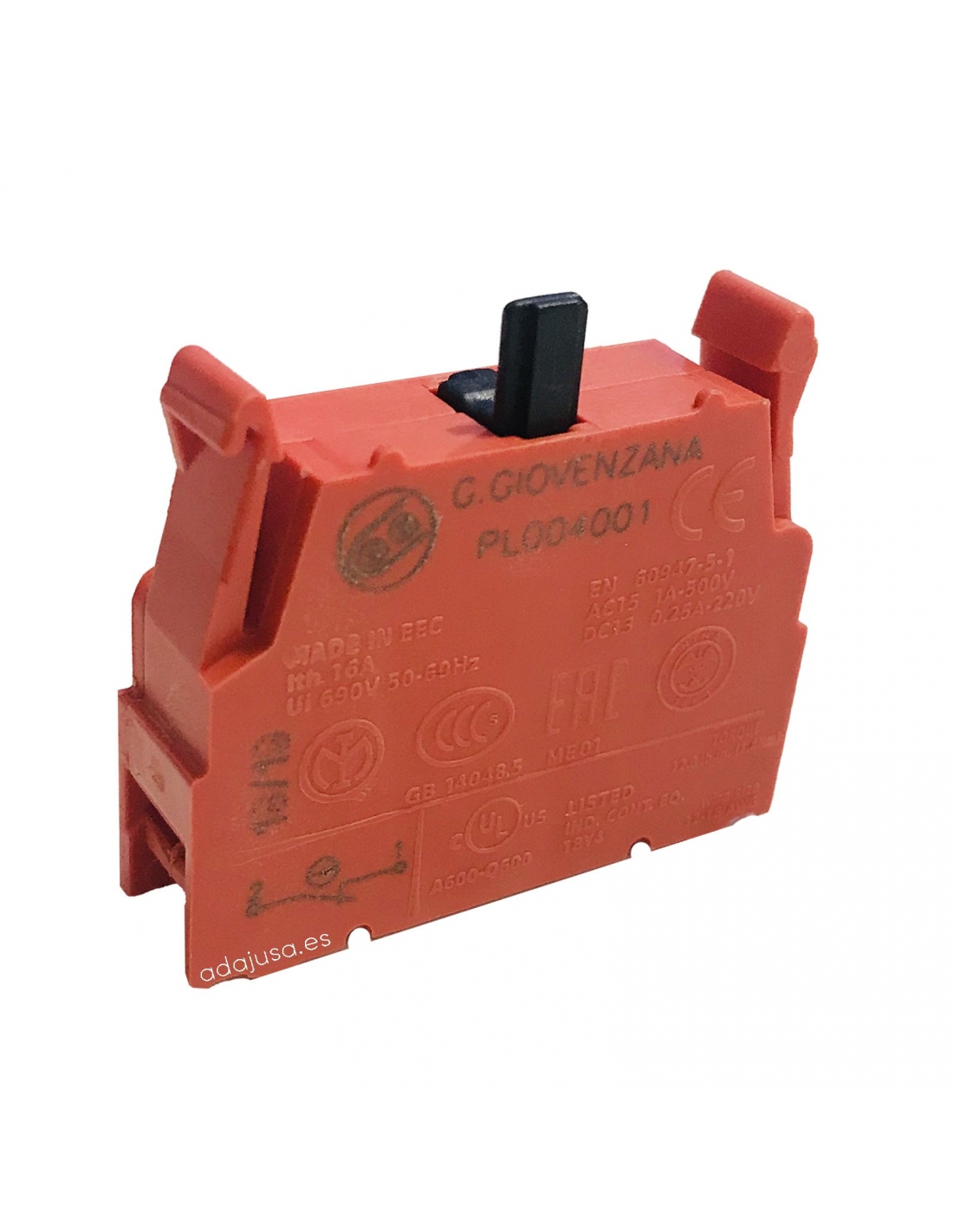

Closed contact NC spring connection - Giovenzana
Closed contact NC spring connection - Giovenzana

Closed contact NC spring connection - Giovenzana

€2.23 Tax included

€1.84 tax excl.

Block of nc (NC) to be installed in pushbuttons and control of the giovenzana brand.

Contact connection by spring, green color.

Reference: PCW01

simbolo contacto abierto Adajusa

Logotipo normativa botoneras serie HP resumidoLogotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Block of nc (NC) for command assistants of the Giovenzana brand. narrow profile, easy and strong fastening on the control element.

Connection of the electrical cable by spring, Contact of high current capacity (16a).

specifications:

  • Manufacturer: Giovenzana.
  • Reference: PCW01.
  • Type of action: Normally closed contact (NC).
  • Color: Red.
  • Isolation nomila voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 10A.
    • 60Vca: 8A.
    • 110Vac: 6A.
    • 240Vac: 5A.
    • 400Vac: 4A.
    • 500Vac: 4A.
    • 690Vac: 2A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 2A.
    • 60Vcc: 1A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0.4A.
  • Contact resistance:
  • Contact operation: Slow double contact rupture, positive opening.
  • Drive force: 4N.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Standard: IEC/EN60947-5-1.

dimensions:

Diagrama de tiempos contacto PCW10 Giovenzana

Diagrama de tiempos contacto cerrado Giovenzana PCW01

Connection mode:

modo conexionado contacto abierto Giovenzana Adajusa

Imagen conexionado contacto abierto PSC01 Giovenzana adajusa

Modo de montaje bloques de contactos Giovenzana Adajusa

Note: This contact block is only valid for items manufactured by Giovenzana
