Vandal-proof pushbutton Ø19mm 1 NO stainless steel
Anti-vandal pushbutton 19mm 1 NA stainless steel
Anti-vandal pushbutton 19mm 1 NA stainless steel
Vandal-proof pushbutton Ø19mm 1 NO stainless steel
Anti-vandal pushbutton 19mm 1 NA stainless steel
Anti-vandal pushbutton 19mm 1 NA stainless steel

Anti-vandal pushbutton 19mm 1 NA stainless steel

€2.79 Tax included

€2.27 tax excl.

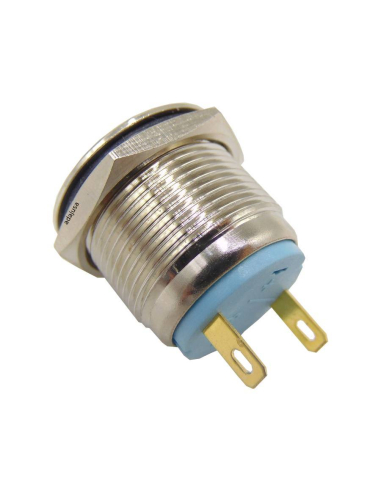

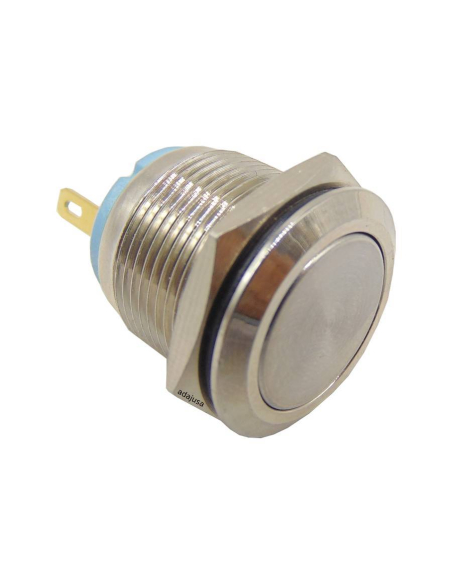

Vandal-proof flush pushbutton 1 NO open contact, Ø19mm, made of stainless steel. Very suitable for adverse conditions of use, perfectly adapted to industrial systems, machines and equipment where high robustness and reliability are required.

simbolo pulsador eléctrico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Vandal-proof flush pushbutton with 1 NO open contact, Ø19mm in stainless steel. High robustness and reliability.

They are very suitable to be installed in environments of adverse use, on industrial systems, machines and equipment where high robustness and reliability are required.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: TY19-211P.
  • Type of material: stainless steel SS304.
  • Panel drilling: Ø19 mm.
  • Signaling type: none.
  • Contact type: Push button 1 NO (open).
  • Maximum current (Ith): 2 A.
  • Maximum voltage (Ui): 250Vac/dc.
  • Minimum voltage: 5Vac/dc.
  • Minimum current: 1mA.
  • Terminal size: 2.8x0.5m for soldering or quick connection.
  • Contact resistance: ≤50mᾨ.
  • Resistance of isolation. ≥1000MὨΙ.
  • Voltage of isolation: 2000Vac.
  • Working temperature: -25ºC to 55ºC.
  • Mechanical life: 1,000,000 minimum.
  • Electrical life: 100,000 at full load.
  • Degree of watertightness: IP67.

Dimensiones pulsador antivandalico no luminoso

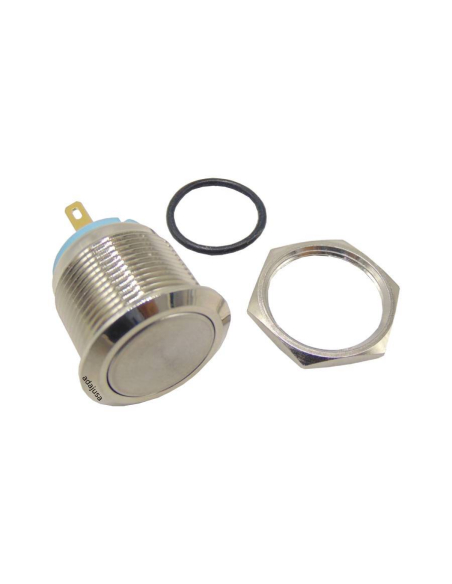

Note: to achieve IP67 degree of watertightness, it must always be installed using the O-ring included in the supply.
Material for professional use, install in compliance with the regulations in force at the place of installation.
