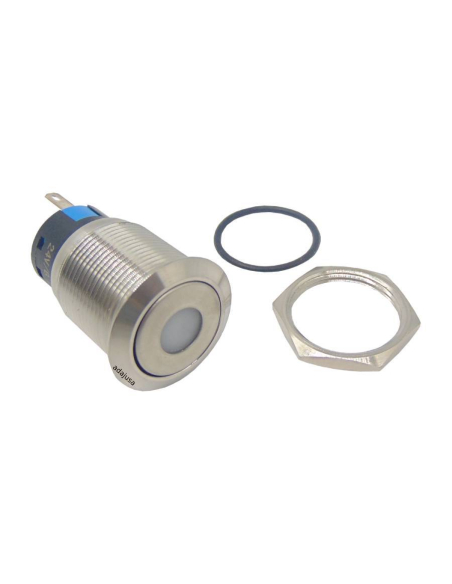

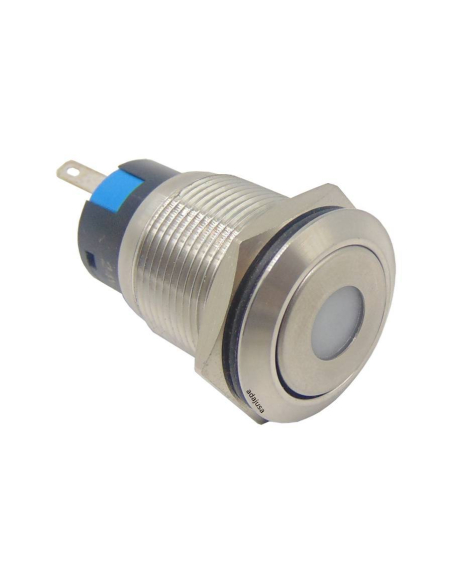

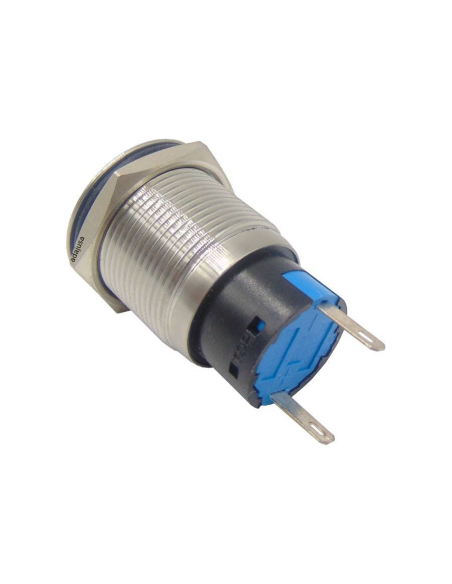

Anti-vandal pilot 19mm white 220V stainless steel
Anti-vandal pilot 19mm white 220V stainless steel
Anti-vandal pilot 19mm white 220V stainless steel
Anti-vandal pilot 19mm white 220V stainless steel
Anti-vandal pilot 19mm white 220V stainless steel
Anti-vandal pilot 19mm white 220V stainless steel

Anti-vandal pilot 19mm white 220V stainless steel

€8.93 Tax included

€7.26 tax excl.

Pilot color anti-vandal white flush, voltage 220 - 230 Vac. 19mm. made of stainless steel. They are perfectly adapted in industrial systems, machines and equipment where high robustness and reliability are required.

Ref: ANTPILB220

Esquema eléctrico piloto luminoso

No queries yet, leave the first!
Privacy
Shipments
Returns


Anti-vandal pilot white,1 led point, flush. Pilot operating voltage 220Vac or 220 Vdc. High robustness and reliability.


Technical details:

  • Manufacturer/Supplier: Denor
  • Ref: ANTPILB220
  • Panel drill: 19 mm.
  • Signalling type: white LED dot.
  • Signalling voltage: 220 Vac/cc.
  • Intensity: 15mA.
  • Material type: Stainless steel.
  • Terminal size: 2.8x0.5m
  • Working temperature: -20oC to 55oC.
  • Panel thickness for recessing: 1 x 10 mm.
  • Degree of sealing: IP67.
