Valves 5/3 pressure centers on base series 70 -...
Valves 5/3 pressure centers on base series 70 - Metal Work

Valves 5/3 pressure centers on base series 70 - Metal Work

€48.72 Tax included

€39.61 tax excl.

70 pneumatic series valves on 5/3 monostable pressure center base

Reference: 7011012300

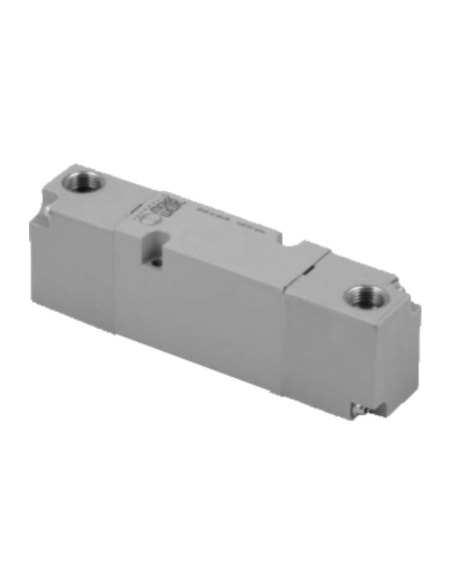

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

70 pneumatic series valves on 5/3 monostable pressure centers base

Features:
  • Manufacturer: Metal Work
  • Reference: 7011012300 - PNV B6 PNS PC
  • Operating pressure (bar): Empty ÷ 10
  • Minimum drive pressure: • monostable (bar): 2.5
  • Operating temperature (°C): -10 ÷ +60
  • Nominal diameter (mm): 5
  • Conductance C (Nl/min · bar): 107.69
  • Critical ratio b (bar/bar): 0.29
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 320
  • Flow rate at 6 bar ΔP 1 bar (Nl/min): 450
  • Monostable TRA/TRR at 6 bar (ms): 6/15


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
