Valves 5/2 differential on 70 series base - Metal Work

Valves 5/2 differential on 70 series base - Metal Work

€36.83 Tax included

€29.94 tax excl.

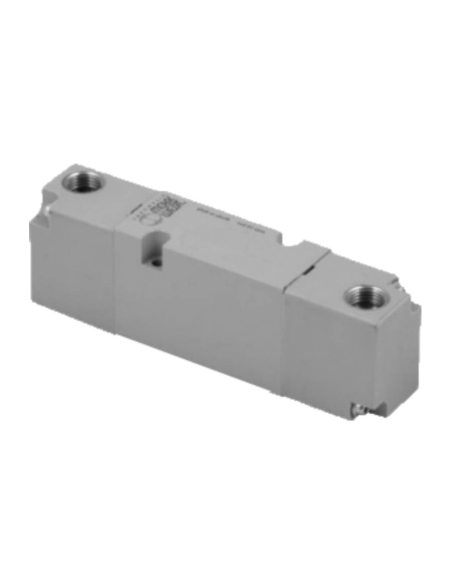

70 pneumatic series valves on 5/2 bistable differential base

Reference: 7011011300


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

70 pneumatic series valves on 5/2 differential bistable base

Features:
  • Manufacturer: Metal Work
  • Reference: 7011011300 - PNV B5 PND OO
  • Operating pressure (bar): Empty ÷ 10
  • Minimum drive pressure: • bistable (bar): 1
  • Operating temperature (°C): -10 ÷ +60
  • Nominal diameter (mm): 5
  • Conductance C (Nl/min · bar): 107.69
  • Critical ratio b (bar/bar): 0.29
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 320
  • Flow rate at 6 bar ΔP 1 bar (Nl/min): 450
  • BIStable TRA/TRR at 6 bar (ms): 7/7


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
