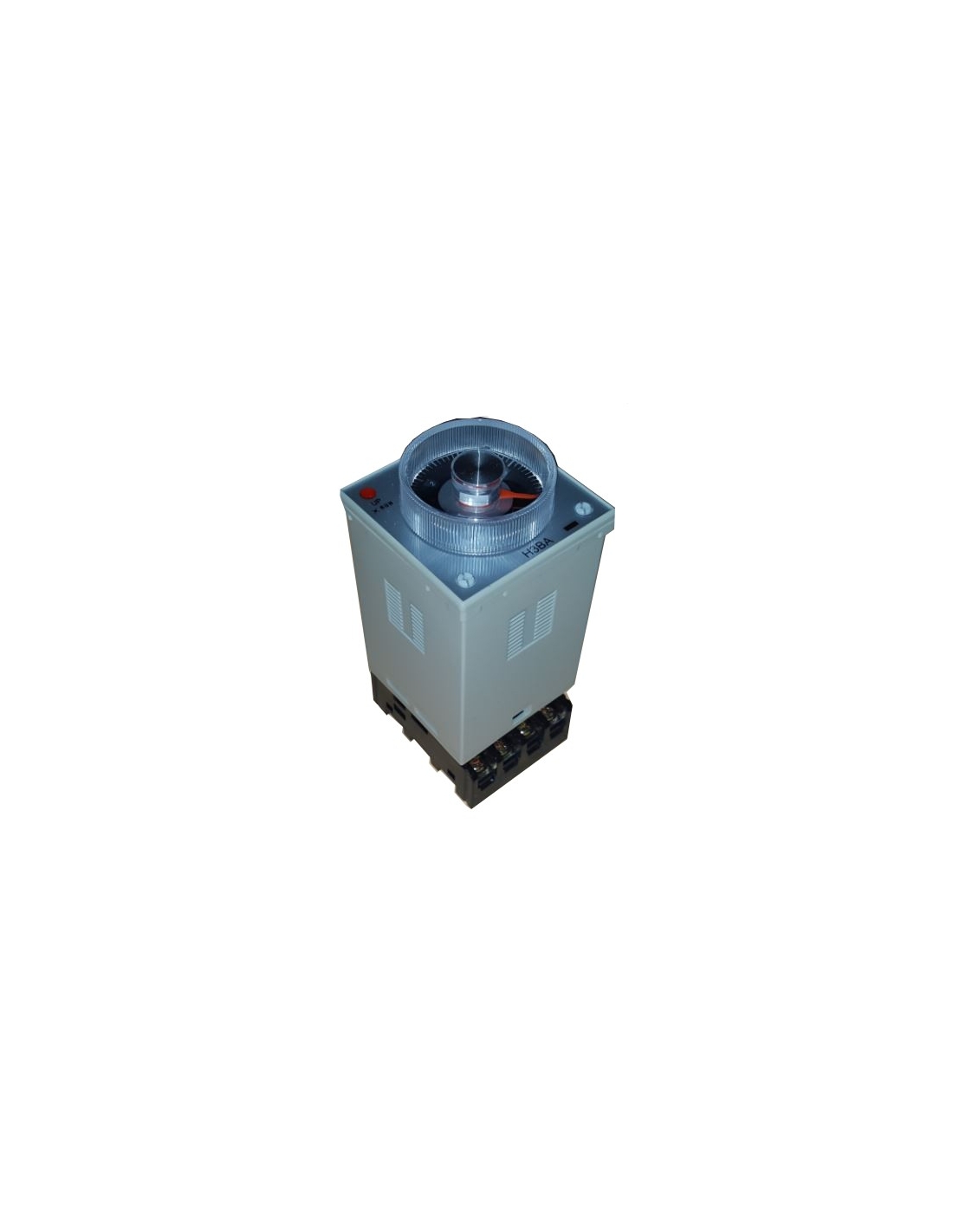

Multi-speed timer 48x48 pluggable 230Vac (on connection)

€17.01 Tax included

€14.06 tax excl.

48x48 pluggable 230Vac multi-bar timer, on-connection timer for general and industrial applications, octal base pluggable, 2 switch contacts, 1 instantaneous and another timed.

Size 48x48mm.

Adjustable between 0.05 sec to 100 hours (in various ranges).

NOTE: The plug-in mounting base is not included in the scope of delivery and must be purchased separately.



Ref: H3BA-8H 230Vac

Rele 2 contactos conmutados

No queries yet, leave the first!


Multi-wire timer to the connection, pluggable on octal base (8 pins). The timer has 2 switched contacts, one instantaneous and one timed. Large regulation control.

The range of timing times is from 0.05 sec to 100h on several scales, selectable by selectors located on the front of the timer.

Equipped with electronic circuits that give it high operating stability. Compact and standardized design, 48x48 mm., status indication by LED.

The operating mode is "timer to connection", that is, after receiving a signal (voltage) between terminals A1 and A2, timing begins, and upon reaching the adjustment time, the output timed contact is activated.

Diagrama de tiempos temporizador a la conexión

Instant contact is activated when the timer is pressed.

Specifications:

  • Manufacturer/Supplier: Denor
  • Ref: H3BA-8H 230Vac
  • Working voltage:230Vac
  • Operating mode: timer to connection
  • Regulation margin: 0.05s to 100 h
  • Type of contacts: 2 switched contacts (1 instant and one timed)
  • Output contact capacity: 3A (250Vac, cosφ=1)
  • Dimensions: 48x48mm
  • Status indication: Red LED
  • Degree of protection: IP20

Time ranges:

Tabla rango de tiempos H3BA-8

Connection scheme:

Conexionado temporizador H3AB-8H

Time diagram:

Diagrama de tiempos temporizador H3BA-8H

Dimensions:

Dimensiones temporizador H3BA-8

Material for professional use, install in compliance with the regulations in force at the place of installation.
