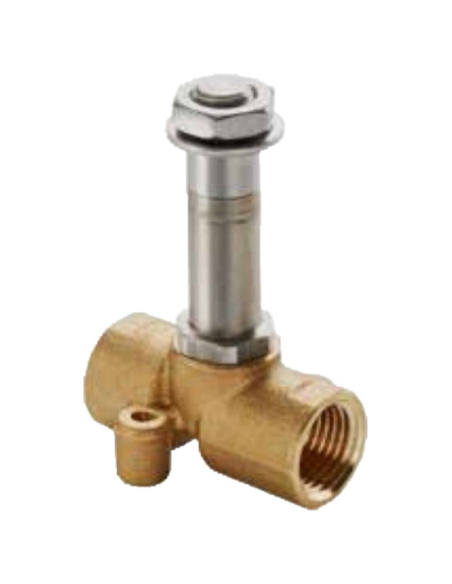

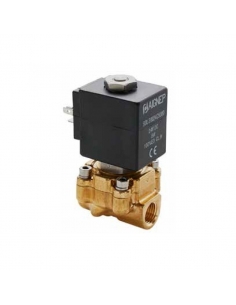

Solenoid valve 1/8"direct drive, 2 way, normally open (NO), for use with fluids or air, indirect drive. Brass body and stainless steel spool handle.
Pitch diameter: 4 mm
In this type of valve, the mobile core, mounted with a sealing gasket, opens and closes directly on the solenoid valve orifice. When the coil is not active, the plunger is closing the passage of the solenoid valve, preventing the flow of fluids. When we energize the coil we create a magnetic field and cause the moving core to open the orifice, allowing the fluid to pass through. When we stop exciting the coil, the moving core, by means of the spring it has, returns to the initial position.
This type of solenoid valves can open from 0 bar.
The working pressure ranges are:
- Minimum pressure differential between inlet and outlet (ΔP bar): 0 bar.
- Maximum pressure differential between inlet and outlet (ΔP bar):
- With coil size 22mm of 6.5W: 2.4 bar.
- With coil size 22mm of 7.5VA: 2.4 bar.
- With coil size 30mm of 8W: 2.4 bar.
- With coil size 30mm of 11VA: 2.4 bar.
- Maximum admissible pressure: 2.4 bar

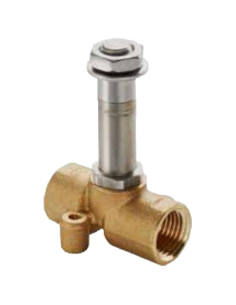

Compatible coils for this type of solenoid valve are range SOL10 (22 mm) and SOL11 (30mm) for cores of diameter 10 (Coil not included)
The solenoid valve is normally open, that is to say, without tension in the coil, the fluid or air will pass through the solenoid valve, when the coil is put in tension the passage of the fluid or air will be interrupted.
The fluids with which this solenoid valve can work are:
- Air.
- Inert gases.
- Water (maximum temperature 75ºC).
- Mineral oils.
- Gas oil.
- Fuel oil.
Technical characteristics:
- Manufacturer: Aignep
- Part number: 01F02203N0
- Type of control: direct drive.
- Thread size: 1/8".
- number of way: 2.
- number of positions: 2.
- Configuration: 2/2 open (NO).
- Operator shaft diameter (for coil): 10mm.
- Body: Brass.
- Guide tube, cores and spring: Stainless steel.
- Type of seal: NBR.
- Type of fluids: Pressurized air, water (max. 75ºC), mineral oils, diesel oil, fuel oil.
- Maximum pressure: 2.4 bar.
- ISO 228 size: 1/8".
- flow diameter: 4 mm.
- Maximum fluid viscosity (cSt): 53.
- Valve coefficient (Kv): 0.30 m³/h.
- Minimum pressure differential (ΔP bar): 0-1.3 bar depending on coil power.
- Maximum pressure differential (ΔP bar): 2.4 bar
- Solenoid valve working temperature: -10ºC to +80ºC.
- Fluid temperature: -10ºC to +90ºC.
Material for professional use, install in compliance with the regulations in force at the place of installation.
For further information you can download the technical data sheet by clicking on the "Attachments" tab
