Solenoid valve 1/4 5/2 ways monostable 230 Vac on plate - Mindman - ADAJUSA

Solenoid valve 1/4 5/2 ways monostable 230 Vac on plate - Mindman

Name: Solenoid valve 1/4 5/2 ways monostable 230 Vac on plate - Mindman
Brand: Mindman
SKU: MVSC220M4E11
Price: 47.4288 EUR
Availability: InStock

€47.43 Tax included

€38.56 tax excl.

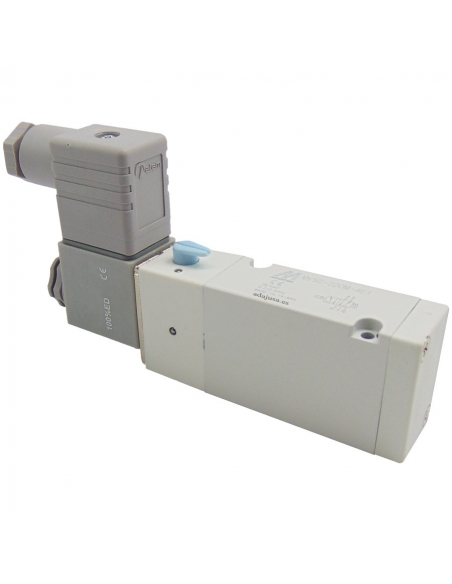

Pneumatic solenoid valve of 1/4 5 ways monostable for mounting on base plate. With conetor and 230Vca coil

Reference: 281MVSC220M4E11

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 1/4 of 5 monostable ways, to be mounted on base plate. For general and industrial applications.

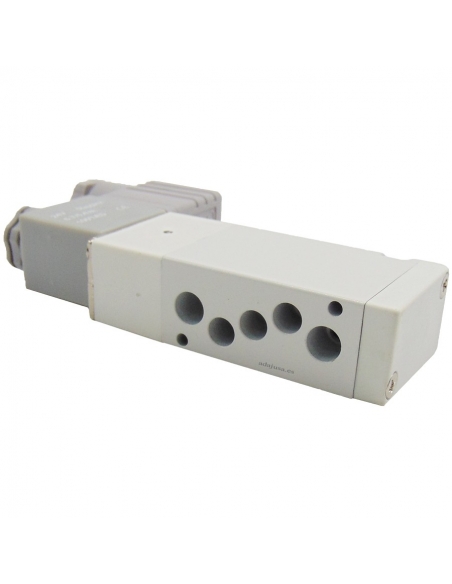

The solenoid valve is fixed on the motherboard by 4 screws, no connection is on the body of the electric valve, which facilitates the cleaning of the installation and easy maintenance.

The supply includes:

Electrovalvula 1/4 5/2 monostable
220Vac-240Vac 6VA voltage coil
Connector size 22

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: MVSC-220M-4E11
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 7 bar.
Minimum working pressure: 2 bar
Working temperature: -5ºC to 50ºC.
Effective surface: 18mm².
Flow: 799 Nl/min.
Manual drive: Yes.
Voltage: 220-240 Vac
Power: 6VA

Dimensiones válvulas sobre placa base Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valves on base plate

Solenoid valve catalog on base plate

Download (673.64KB)
