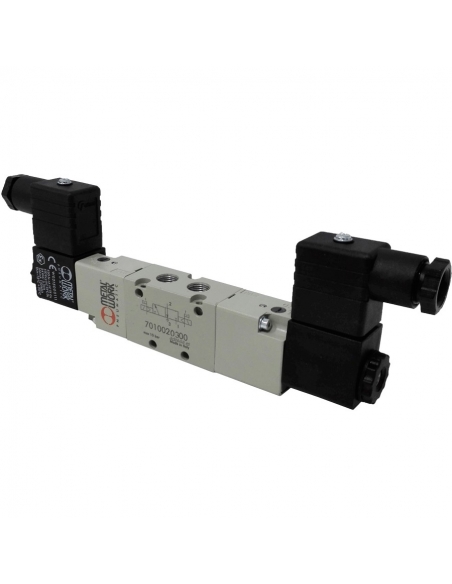

Electrovalvula 1/8 5-way bistable assisted 24Vdc - Metal Work - ADAJUSA

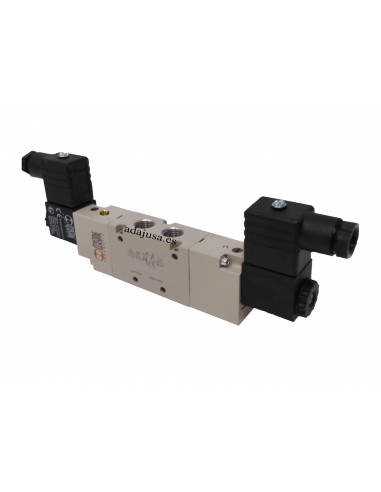

Solenoid valve 1/8 5 bistable roads assisted 24Vcc 2.5W - Metal Work - adajusa.es

Coil solenoid valve 24Vcc 2.5 W T22 '8 - Metal Work - adajusa.es

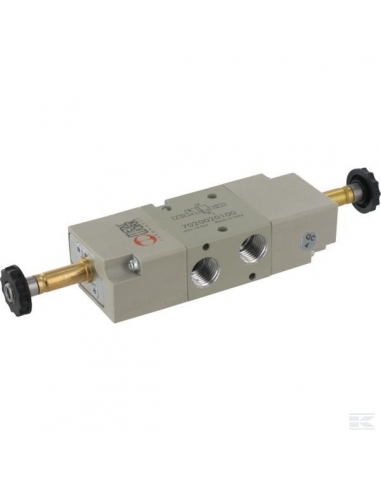

Bistable assisted 1/8 5-way solenoid valve - Metal Work - adajusa.es

Solenoid valve 1/8 5 ways bistable assisted 24Vdc 2 W - Metal Work

Name: Solenoid valve 1/8 5 ways bistable assisted 24Vdc 2 W - Metal Work
Brand: Metal Work
SKU: PK-185BA24C
Price: 111.86 EUR
Availability: BackOrder

€111.86 Tax included

90.94 tax excl.

PK-185BA24C

1/8" 5-way, 2-position assisted solenoid valves for pneumatic industrial or general applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm. Connector 22 mm

ESquema electrovalvula 5 vias biestable asistida

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.45

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.92

Assisted 1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA

Solenoid valve 1/8 5-way assisted bistable - Metal Work

€91.12

No queries yet, leave the first!

Privacy

Shipments

Returns

1/8" 1/8" 5-way, 2-position pneumatic solenoid valves. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm.

Plastic connector 22 mm

The supply includes:

1 Solenoid valve 1/8 5/2 bistable assisted
2 Coils 24Vdc 2 W
2 x 22mm connector

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010021600
Voltage: 24Vdc
Consumption: 2 W
Solenoid valve working pressure: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
