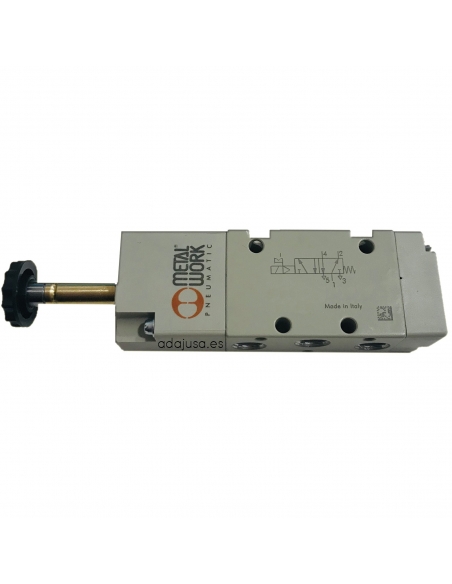

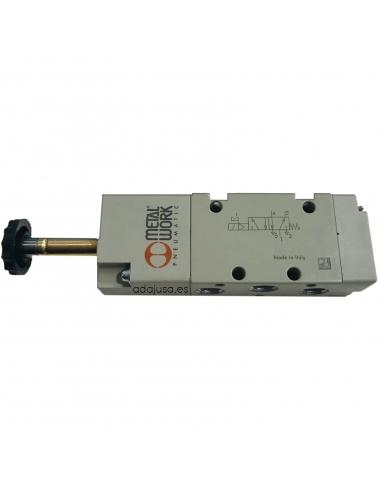

1/4 5-way monostable electrovalve assisted without coil - Metal Work - adajusa.es

Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work

Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work

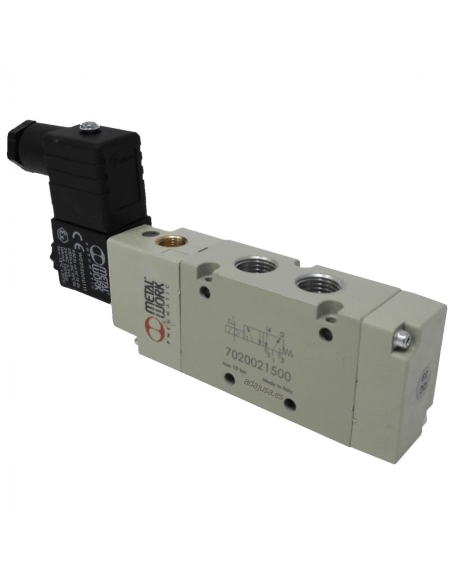

Name: Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-E145A110M
Price: 79.2243 EUR
Availability: InStock

€79.22 Tax included

€64.41 tax excl.

1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.39

1/4 5-way monostable assisted solenoid valve - Metal Work - ADAJUSA

Solenoid valve 1/4 5 ways monostable assisted without coil - Metal Work

€69.34

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.50

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/4 5 ways monostable assisted, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

Plastic connector 22 mm

Supply includes:

Solenoid valve 1/4 5/2 monostable assisted
Coil 110Vac 3.5VA
Connector 22 mm

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020021600 - SOV 35 SEB OO
Type: 1/4-5/2 Assisted monostable
Thread: G 1/4"
Voltage: 110Vac
Consumption: 3.5VA
Operating pressure: 0 bar÷10 bar
Minimum working pressure for the pilot: 2.5 bar
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.242kg.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
