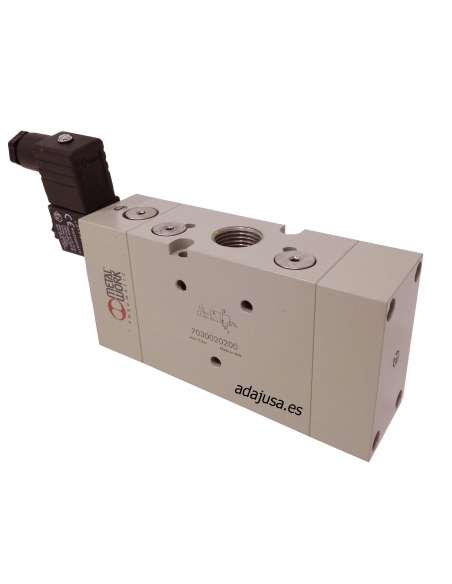

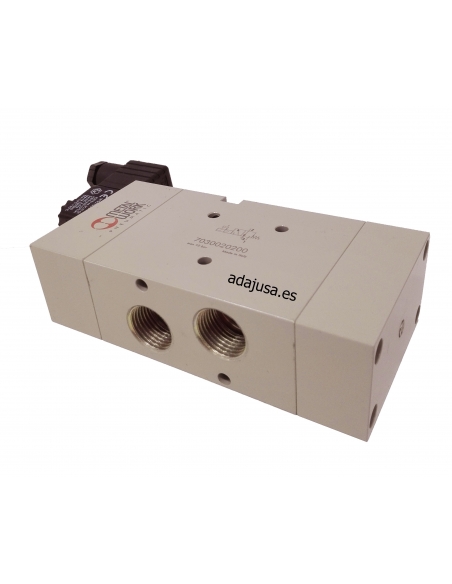

Solenoid valve 1/2 3-way monostable 110Vac 5VA - Metal Work

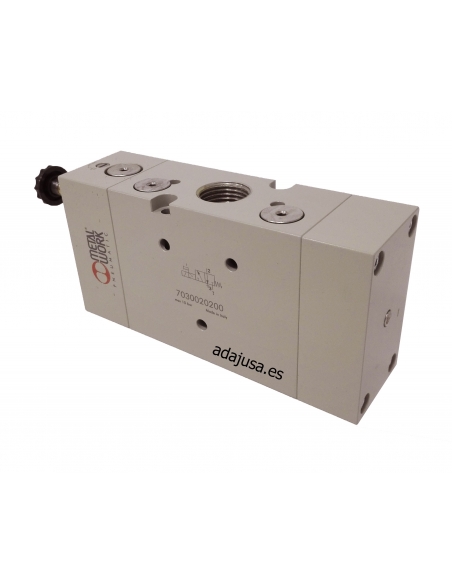

1/2 3-way monostable single-stable pneumatic solenoid valve without coil. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic connector

Supply includes:

• Solenoid valve 1/2 3/2 monostable
• Coil 110Vac 3.5VA
• 22mm connector

specifications:

• Manufacturer: Metal Work.
• Electrovalve Reference: SOV43SOSNC Code: 7030020200
• Working pressure of the solenoid valve: 2.5 to 10 bar.
• Minimum working pressure: 2.5 bar.
• Voltage: 110Vac
• Consumption: 3.5VA
• Working temperature: -10oC to 60oC.
• Nominal diameter: 15mm.
• Flow rate at 6 bars p 1 bar: 4600 Nl/min.
• Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
