Transformer 160VA E:230/400V S:115/230V IP20 TF Series
Transformer 160VA E:230/400V S:115/230V IP20 TF Series
Transformer 160VA E:230/400V S:115/230V IP20 TF Series
Transformer 160VA E:230/400V S:115/230V IP20 TF Series

Transformer 160VA E:230/400V S:115/230V IP20 TF Series

€53.68 Tax included

€43.64 tax excl.

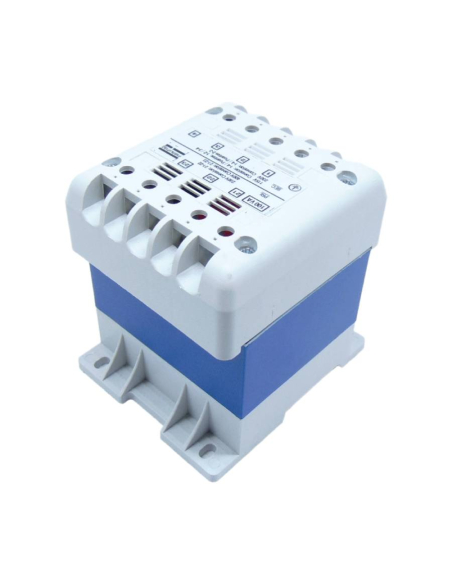

Single-phase control, maneuvering and isolation transformer for general uses, power 160VA. Transformer with galvanic isolation in a highly resistant polymer case that gives it an IP20 protection rating. This range of transformers has two output voltages, 115Vac or 230Vac, each of which can be selected by means of jumpers.

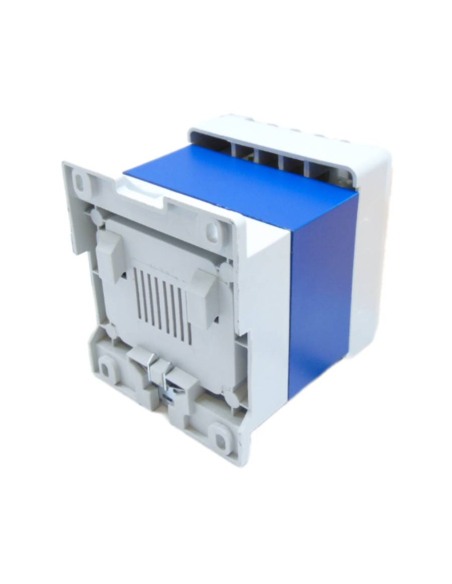

Generally intended for control and operation, but also for isolation in order to supply electrical devices that require separation of the input circuit from the output circuit. Fixing by screws or DIN rail.


Reference: TF041163201

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

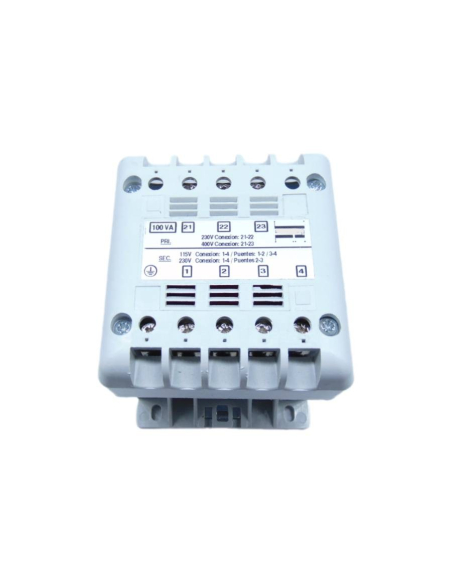

Single-phase isolation transformer for control and operation of 160VA; 230/400Vac input and 115V/230Vac output, each of them selectable by means of jumpers. with galvanic isolation in a highly resistant polymer case that gives it an IP20 protection rating. Depending on the connection method of the two output secondaries, the transformer can supply 115Vac with an intensity of 1.39A (apparent intensity), or 230Vac with an intensity of 0.70A (apparent intensity).

This type of transformer is specially designed for the protection and electrical separation of the input circuit (primary) from the output circuit (secondary) by means of galvanic isolation. Suitable for the protection of electrical and electronic equipment against voltage peaks or interference, reduction of electrical noise in sensitive systems and separation of circuits in industrial installations to prevent discharges. Fixing by screws or DIN rail.

These types of transformers are reversible .





Technical characteristics:

  • Manufacturer: Generico -MANU
  • Reference: TF041163201
  • Transformer power: 160VA
  • Primary voltage: 230/400Vac
  • Secondary voltage (output): 115/230Vac (selectable by jumpers)
  • Maximum current (output): 1.39A (115Vac) / 0.70A (230Vac) (selectable by jumpers)
  • Frequency: 50/60Hz
  • Dielectric strength between primary and secondary: 4900V
  • Dielectric strength between primary and ground: 3500V
  • Winding: copper wire, class H. Primary and secondary separated (galvanic separation)
  • Protection class: IP20
  • Protection class: I
  • Insulation class: T40/F
  • Connection: Screw-faston terminals
  • Weight: 5.68Kg
  • Standard: EN 61558-2-4



IP-TF




Electrical connection:



The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.

The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.



Professional use material, install in compliance with the regulations in force at the installation site.
