Transformer 160VA E:230/400V S:12/24V IP20 TS Series
Transformer 160VA E:230/400V S:12/24V IP20 TS Series
Transformer 160VA E:230/400V S:12/24V IP20 TS Series
Transformer 160VA E:230/400V S:12/24V IP20 TS Series

Transformer 160VA E:230/400V S:12/24V IP20 TS Series

€53.62 Tax included

€43.59 tax excl.

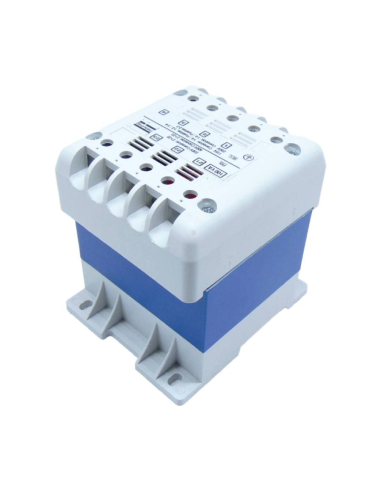

Single-phase safety transformer with galvanic isolation, power 160VA. Transformer in a highly resistant polymer case that gives it an IP20 protection rating. This range of transformers has two output voltages, 12Vac or 24Vac, each of which can be selected by means of jumpers.

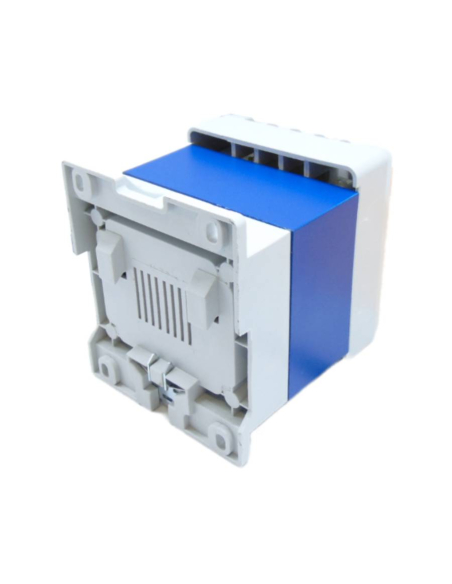

 Mainly intended to provide a safe and reduced voltage to avoid electrical risks to people and equipment, but also for isolation in order to supply electrical devices that require separation of the input circuit from the output circuit. Fixing by screws or DIN rail.


Reference: TS041163201

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

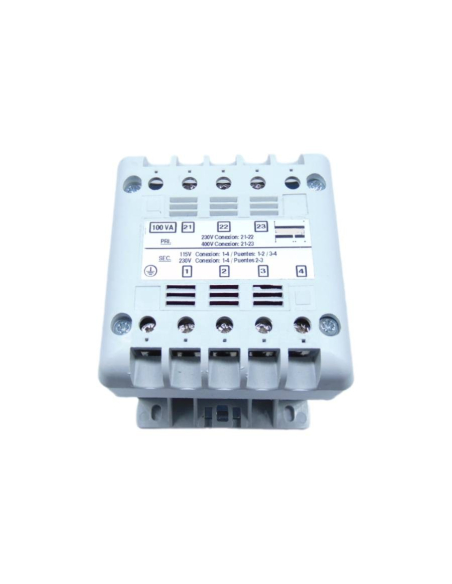

160VA single-phase safety transformer , 230/400Vac input and 12V/24Vac output, each of which can be selected by means of jumpers. with galvanic isolation in a highly resistant polymer case that gives it an IP20 protection rating. Depending on the connection method of the two output secondaries, the transformer can supply 12Vac with an intensity of 13.33A (apparent intensity), or 24Vac with an intensity of 6.67A (apparent intensity).

This type of transformer is specially designed to provide a safe and reduced voltage avoiding electrical risks to people and equipment, as well as to provide electrical separation of the input circuit (primary) from the output circuit (secondary) by means of galvanic isolation. Suitable for the protection and supply of control circuits in industrial machinery and electrical systems in environments where a safe voltage is required to avoid dangerous discharges. Fixing by screws or DIN rail.

These types of transformers are reversible.





Technical characteristics:

  • Manufacturer: Generico -MANU
  • Reference: TS041163201
  • Primary voltage: 230/400Vac
  • Transformer power: 160VA
  • Secondary voltage (output): 12/24Vac (selectable by jumpers)
  • Maximum current (output): 13.33A (12Vac) / 6.67A (24Vac) (selectable by jumpers)
  • Frequency: 50/60Hz
  • Dielectric strength between primary and secondary: 4600V
  • Dielectric strength between primary and ground: 3500V
  • Winding: copper wire, class H. Primary and secondary separated (galvanic separation)
  • Protection class: IP20
  • Protection class: I
  • Insulation class: T40/F
  • Connection: Screw-faston terminals
  • Weight: 5.61Kg
  • Standard: EN 61558-2-6


IP-TF



Electrical connection:



The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.

The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.



Professional use material, install in compliance with the regulations in force at the installation site.
