Transformer 630VA E:230V S:230V IP-00

€92.02 Tax included

€74.81 tax excl.

Single-phase switching transformer for command, control and general uses, input voltage 230Vac and output voltage 24Vac. The transformer power is 630VA, protection degree IP00.

Reference: TA001633200

transformer symbol 230-230

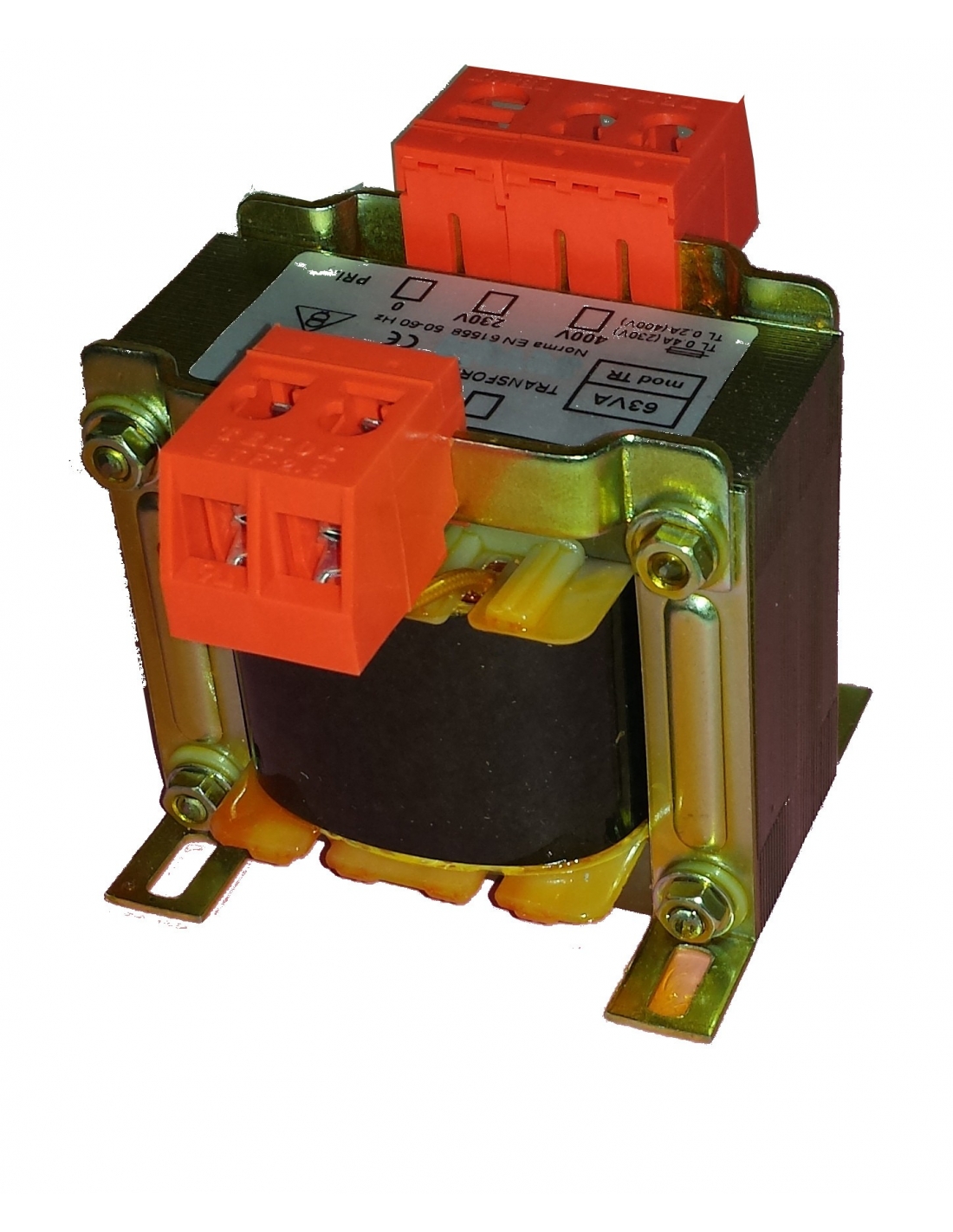

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase transformer, 230Vac input and 230Vac output, power 630VA. Varnished transformer, with IP00 protection grade. The maximum intensity supplied is 2.73A (apparent intensity).

The main application of this type of transformer is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits is required. They are protected against humidity by resin impregnation.

These types of transformers are fully reversible.

Technical characteristics of the transformer:

  • Reference: TA001633200
  • Transformer type: Single-phase
  • Primary voltage: 230Vac
  • Secondary voltage: 230Vac
  • Rated power: 630VA
  • Maximum intensity in the secondary (In): 2.734A
  • Frequency: 50/60 Hz
  • Dielectric strength between primary and secondary: 3500V
  • Dielectric strength between primary and ground: 3500V
  • Winding: copper wire, class H. Primary and secondary separated (galvanic separation)
  • Protection class: IP00
  • Protection class: I
  • Insulation class: Tª 40ºC/F
  • Connection: Screw-faston terminals
  • Weight: 6.35kg
  • Transformer encapsulation: Varnishing
  • Mounting: By screws or DIN rail fixing
  • Standard: EN-61558-2-3



The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.

The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.



Professional use material, install in compliance with the regulations in force at the installation site.
