Tube quick coupling with spring 10/8 universal series - Aignep

Name: Tube quick coupling with spring 10/8 universal series - Aignep
Brand: Aignep
SKU: 193108
Price: 8.9782 EUR
Availability: InStock

€8.98 Tax included

€7.42 tax excl.

Quick coupling with spring for Ø10x8mm tube , Multipresa series. Universal profile plug, interchangeable with all the different types of adapters approved in the European market, guaranteeing perfect tightness for all of them. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.

Compatible and interchangeable with profile adapters European, Swedish, Italian, UNI ISO 6150 B-12.

Series: Multidam
Reference: 193 10/8

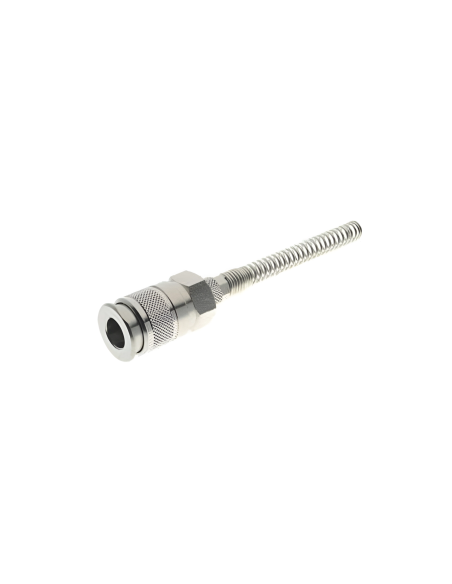

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Quick connection plug with stainless steel protective spring for flexible tube or hose measuring Ø10x8mm. Universal type plug, interchangeable with all adapters approved in the European market; a single plug that fits the following adapter profiles: European, Swedish, Italian, UNI ISO 6150 B-12. This type of plug provides a high flow rate and low pressure drop, avoiding air loss between the plug and the tool. They are widely used in applications that require frequent and quick connections and disconnections, such as industrial facilities, workshops or garages.

The use of quick couplings in pneumatic installations provides a quick and easy method of connecting tools, machinery and other elements to the installed pneumatic distribution network. The Multipresa series quick plugs are a practical and economical solution for interchangeability with different types of adapters, both in shape and dimensions, which generally require specific plugs that are not interchangeable between them.

The body is made of nickel-plated brass, the spring and dial are made of stainless steel and the gaskets are made of NBR. AISI 304 Stainless steel spiral spring - EN 1.4301.

Main technical characteristics:

Manufacturer: Aignep
Reference: 193 10/8
Type: Tube with spring
Tube dimensions: Ø 10x8 mm
Compatible fluid: Compressed air
Gaskets: NBR
Spring: AISI 304 Stainless Steel - EN 1.4301
Working pressure: 0 to 16 bar
Maximum static pressure (without pulsations): 35 bar
Working temperature range: - 20ºC to +80ºC
Adapter compatibility: European, Swedish, Italian, ISO 6150 B-12

Flow rate depending on the type of adapter: Series 260 - European Profile, Series 270 - Swedish, Series 250 - Italian, Series 220 - ISO 6150 B-12

Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.
