Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep
Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep

Black-white-red pneumatic pushbutton and Limit switch servo-piloted strut 1/8 3/2 NC with spring return - Aignep

€53.22 Tax included

43.27 tax excl.

PK-PUL32NC02

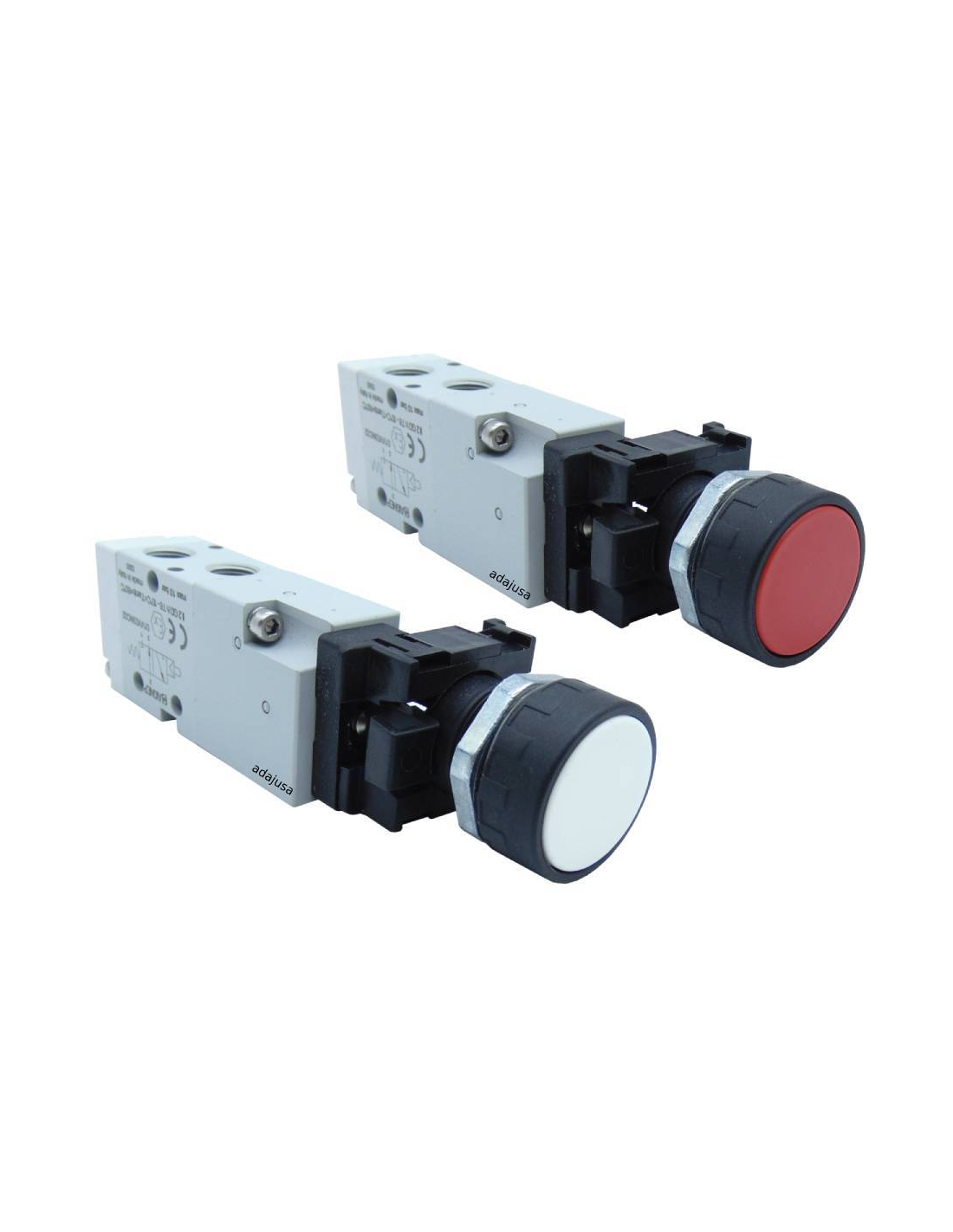

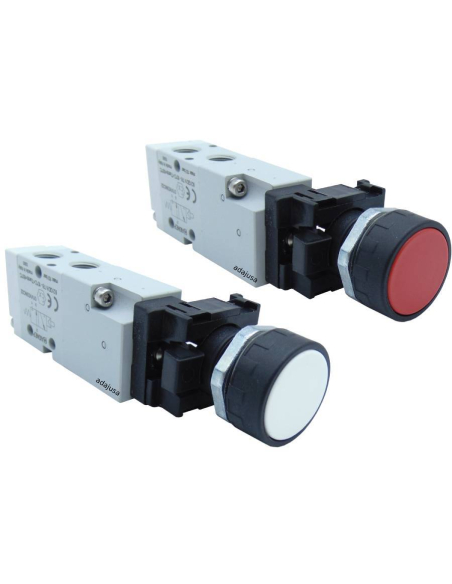

Push button with protection for discs standard colors: red, black and white, and pneumatic limit switch valve 1/8 3 way and 2 positions, the actuation is by servo-piloted strut, for mounting with emergency push button or similar by means of the adapter.

32ESQUEMASERVO

Logotipo Aignepiconos-válculas aignep
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

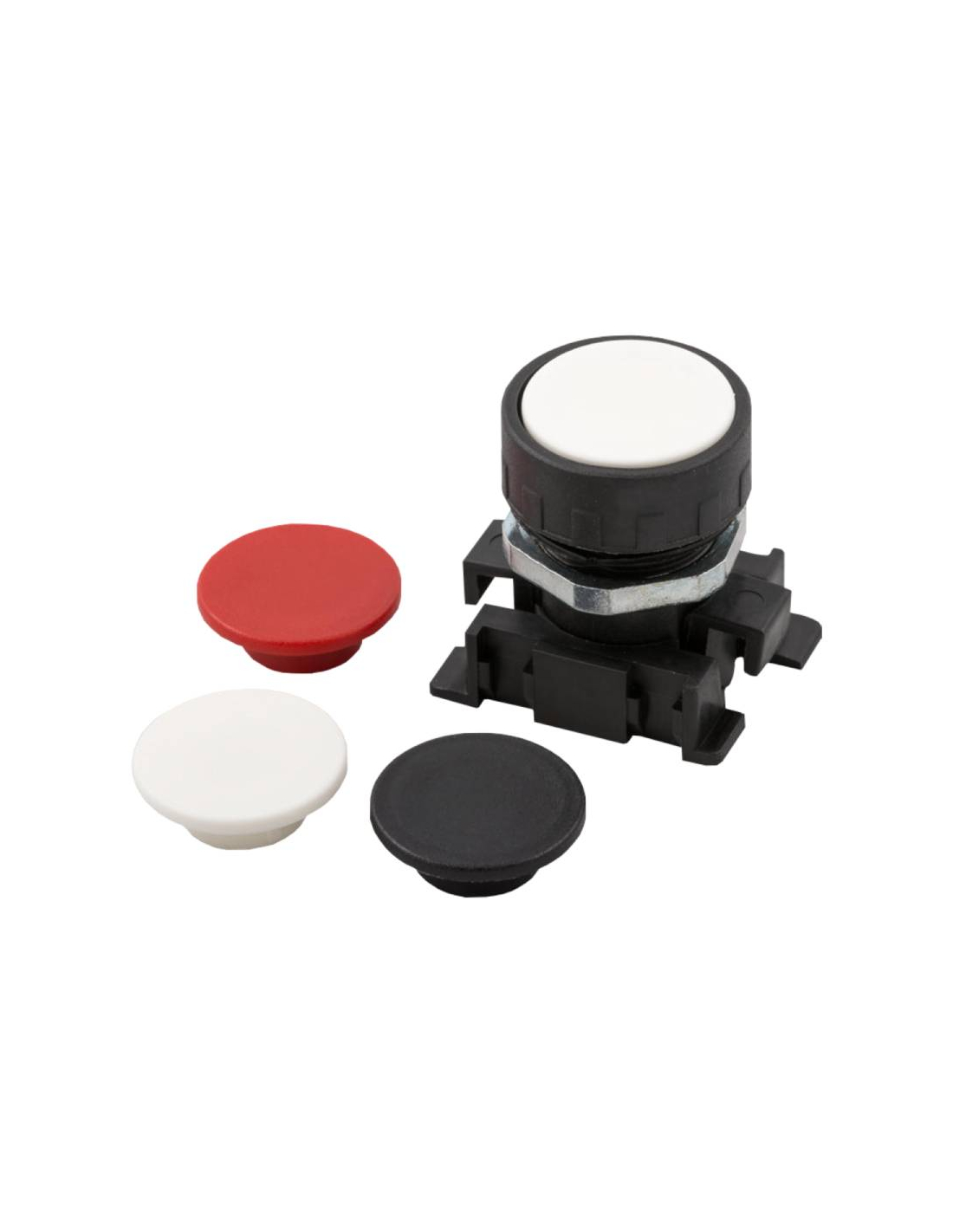

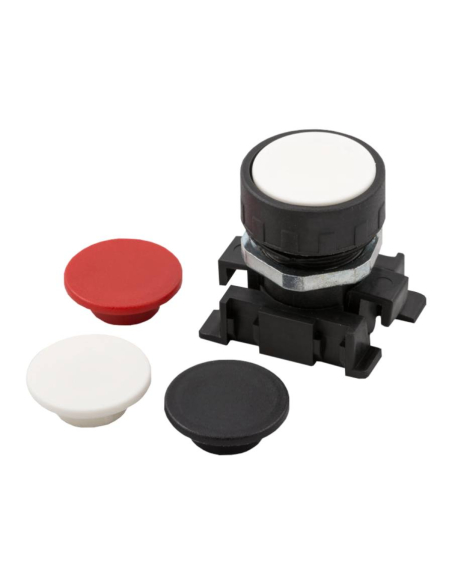

Protected pushbutton monostable for use with pneumatic limit switch valves with pushbutton actuation and incorporates standard color caps: red, black and white.

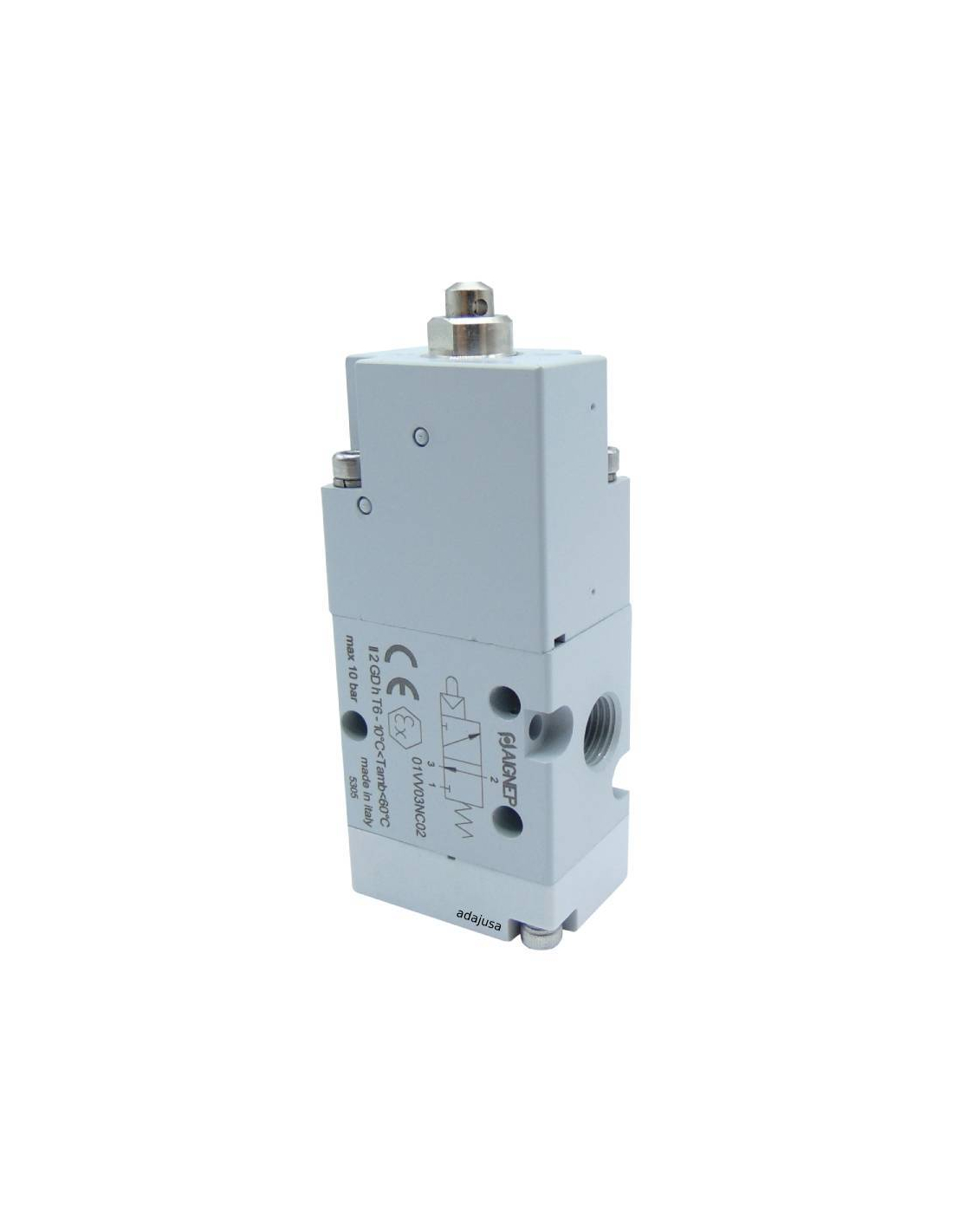

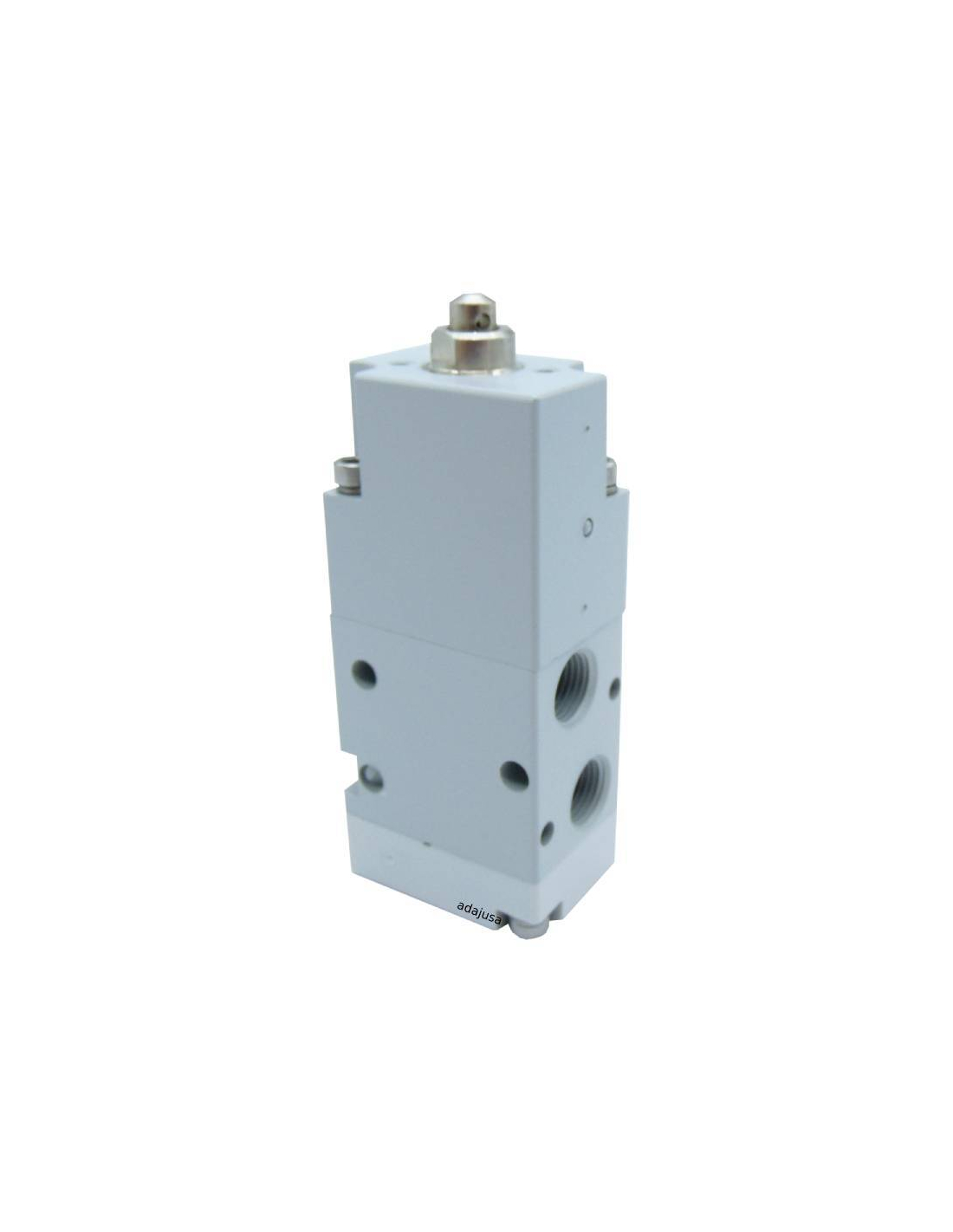

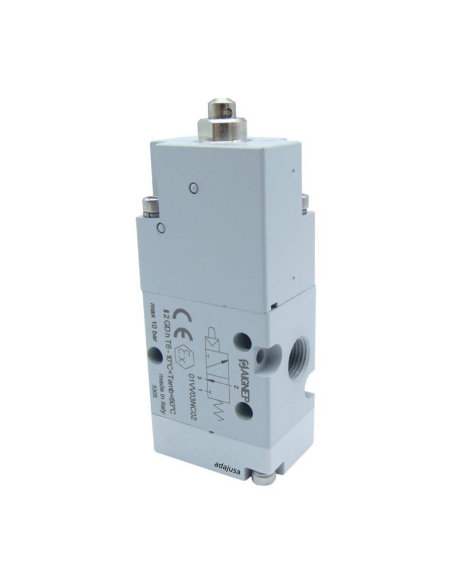

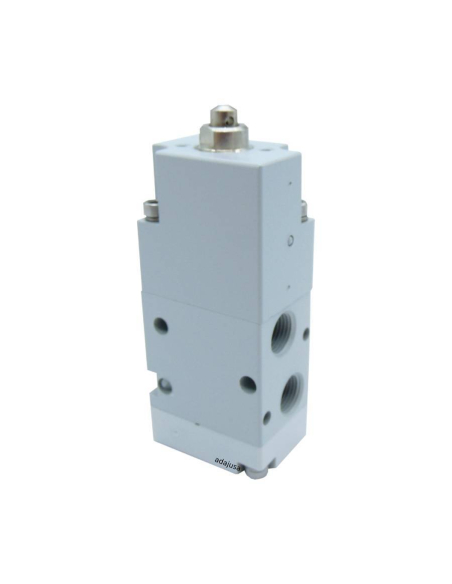

Limit switch 1/8 3 way and 2 positions pneumatic, normally open closed (NC), monostable with spring return with servo-piloted strut. Servo-piloted valves are predisposed for panel actuators. At rest state of the limit switch valve is normally closed (NC), i.e. without pressing there is no air at the outlet as air cannot pass through and when actuated it lets air pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

    • Push button body

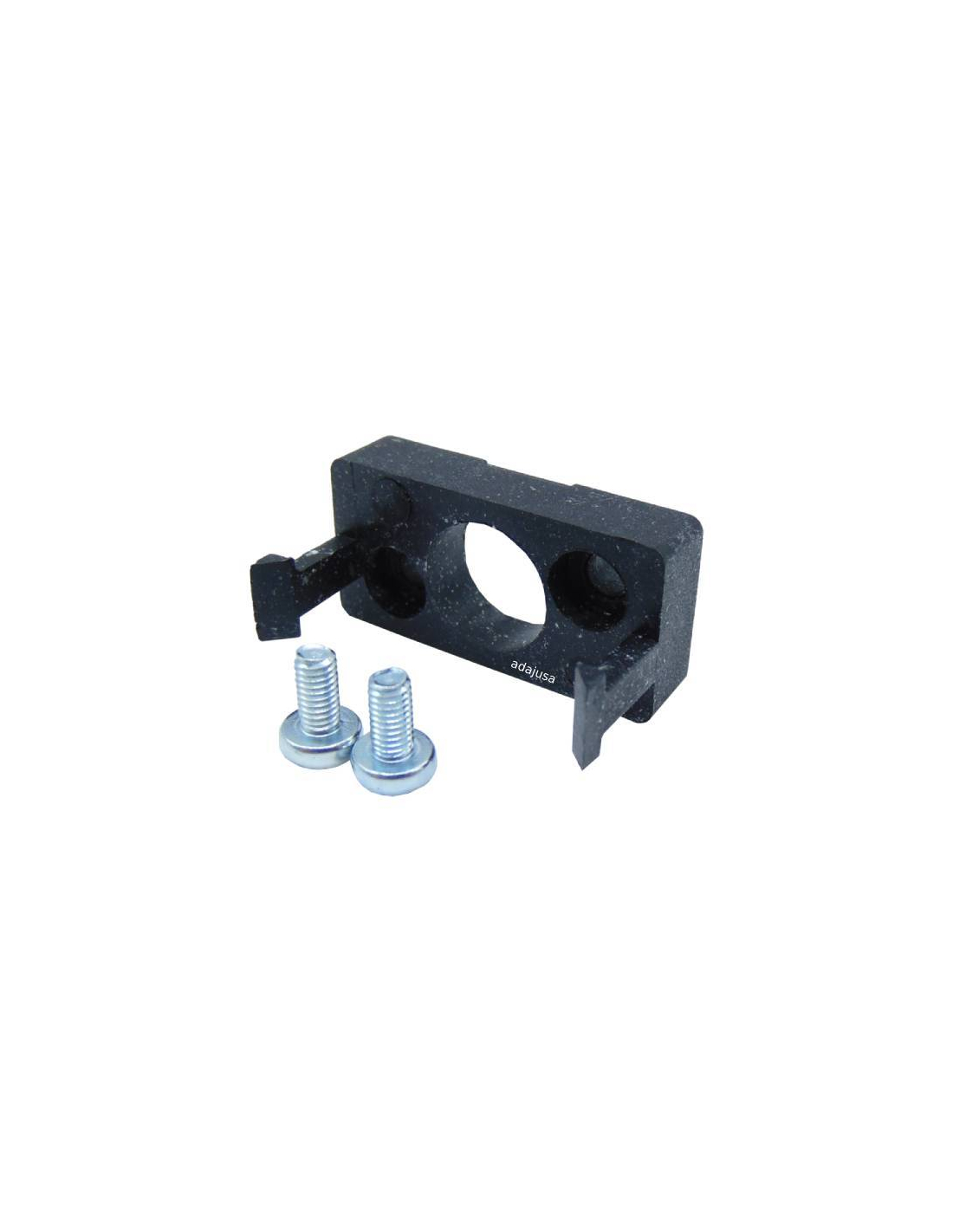

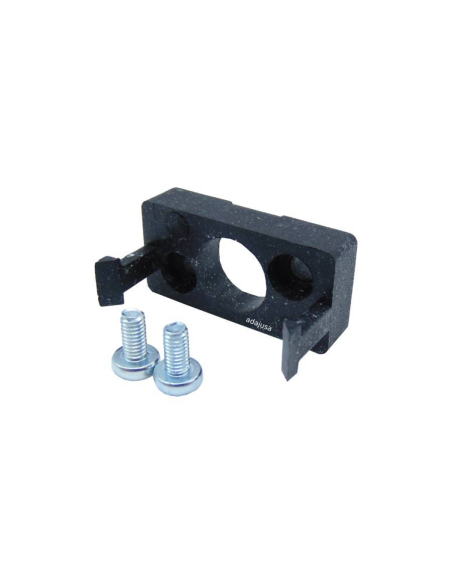

    • Valve adapter
    • 3 discs (red, black and white)
    • Limit switch pneumatic 1/8 3 way and 2 positions, usually closed (NC), monostable with spring return with servo-piloted strut

Valve characteristics:


  • Part No.: 01VVV03NC02
  • Valve body: anodized and varnished aluminum
  • Slide material: Nickel-plated aluminum
  • Seals: NBR
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740
If you wish to fit another valve to be added to the push button you can purchase separately the double adapter (040600002). Only one type of valve is included in the scope of supply.



32DIMENSIONESSERVO

Captura de pantalla 2023-06-01 181847

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
