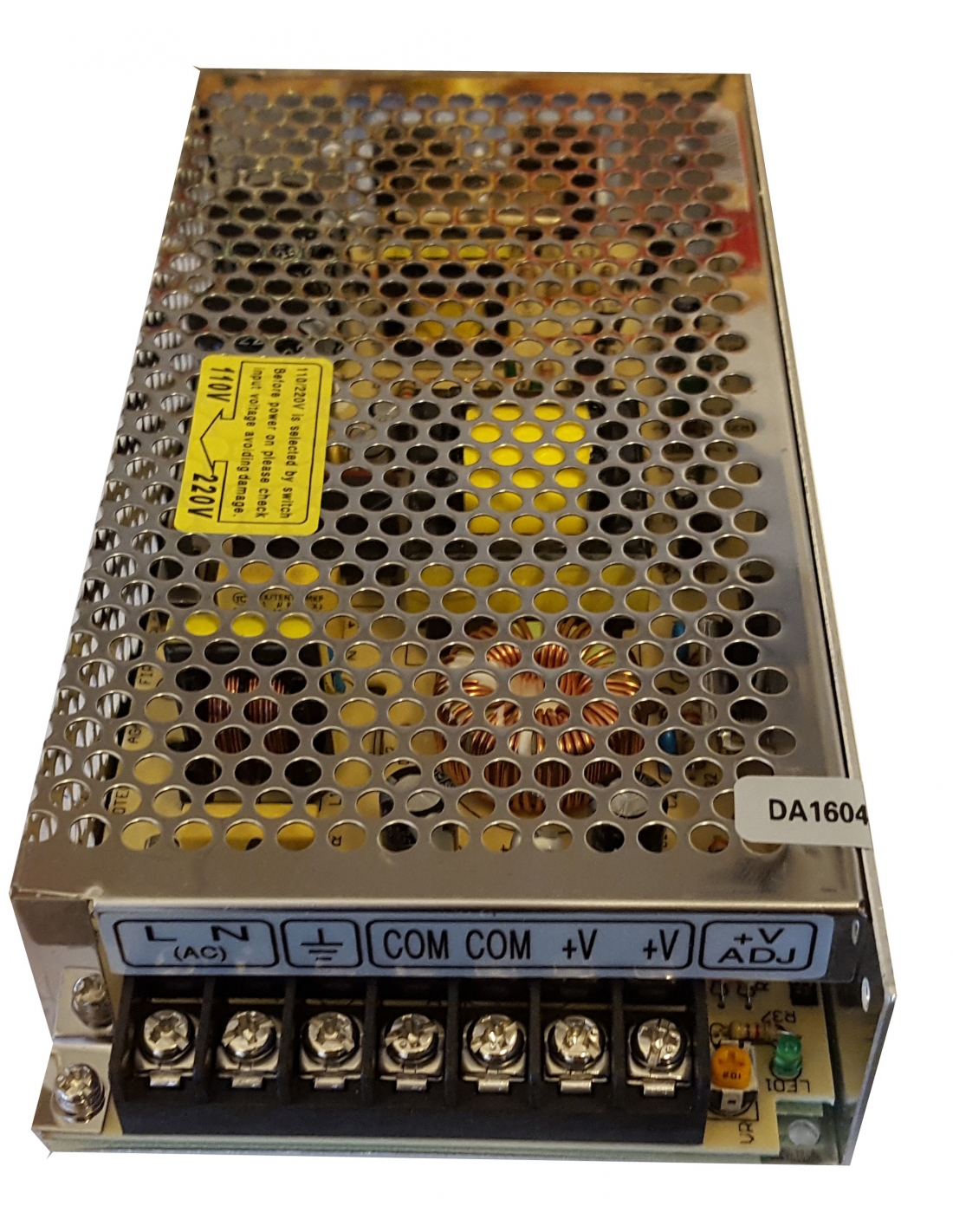

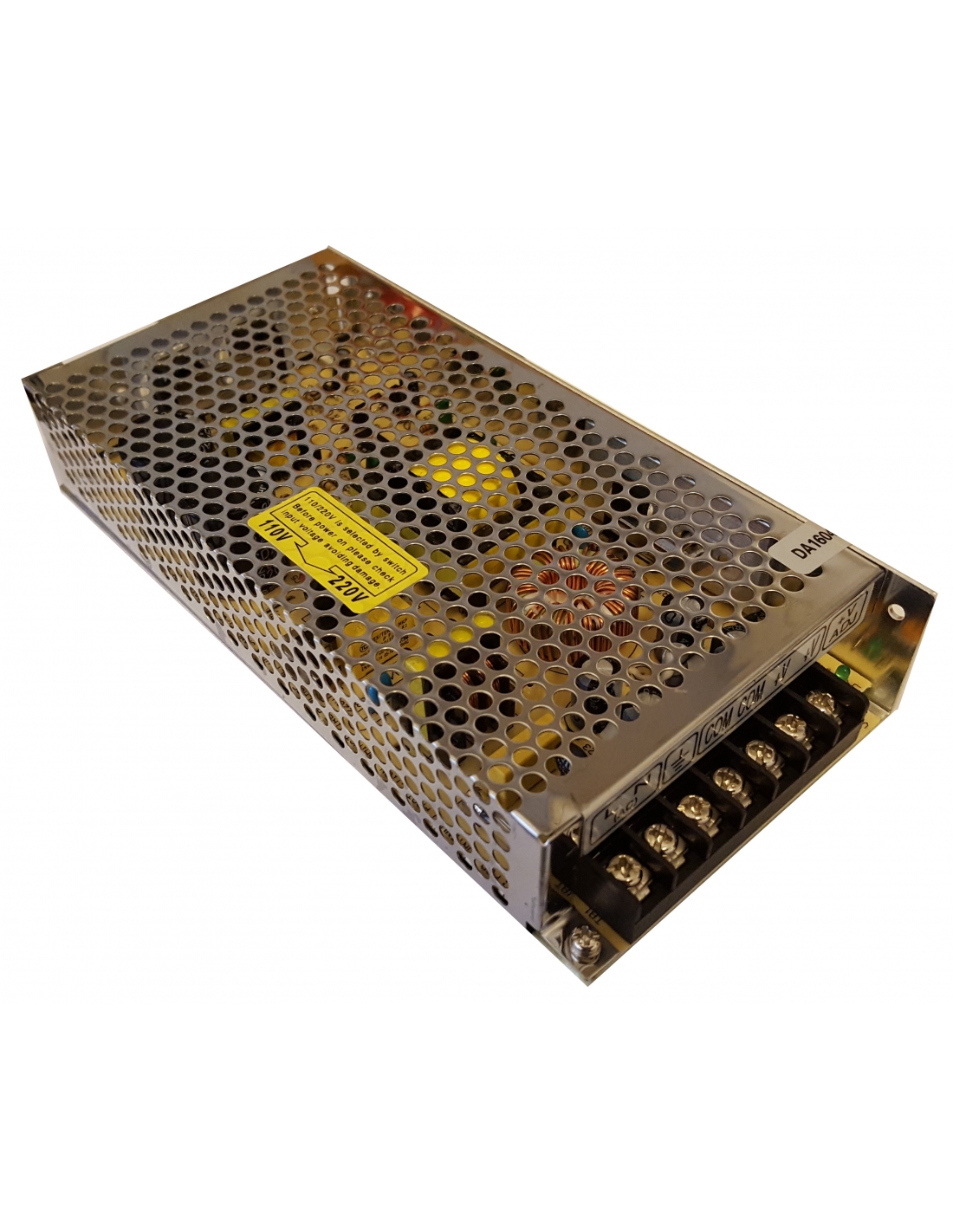

Power supply 24Vdc 5A 120W

€31.23 Tax included

€25.81 tax excl.

Stabilized industrial power supply, single output of 24Vdc, 5A., switched type of 120W power. Supply voltage 230Vac., protected against overloads and short circuit

Metal box for industrial use, for mounting on bottom panel by screws. High performance and reliability required in industrial use.

Reference: S120 24Vcc

No queries yet, leave the first!
Privacy
Shipments
Returns


24Vdc single output stabilized industrial power supply, 5A rated intensity, and 120W power. Supply voltage 230Vac.

The power supply is mounted on a very robust metal box for industrial use, for mounting on bottom panel by screws. High performance and reliability required in industrial use.

With a high overload capacity and protected against short circuits in the output. Automatic reset to overloads and short circuits.

specifications:

  • Manufacturer/Supplier: Denor
  • Reference: S120 24Vcc
  • Operating mode: switched.
  • Mounting: cabinet or frame background. Fastening by screws.
  • Input voltage: 230Vac (170-264Vac).
  • Frequency: 47.. 63Hz.
  • Output voltage: 24VDC (+/- 1%).
  • Output voltage adjustment range: 24±10%.
  • Nominal output current: 5 A.
  • Rated output power: 120W.
  • Maximum commissioning time: less than 1 sec.
  • Curling and noise: Below 100mVpp.
  • Yield: 85%.
  • Overcurrent and short-circuit limitation: Yes, self-alarming.
  • Switching frequency: 37Khz.
  • Working temperature: -10oC.. 60oC temperature.
  • Safety standards: EC, EN60950-1; EN61347; EN61347-2.
  • EMC compliant— EN55015; EN55022; EN55024; EN61000-2; EN61000-3; EN61547.
  • CE ROHS Standard.
  • Dimensions: 199x98x38mm.
  • Weight: 0.6Kg.

Dimensiones fuente de alimentación conmutada S-120-24 120W 24V 5A
