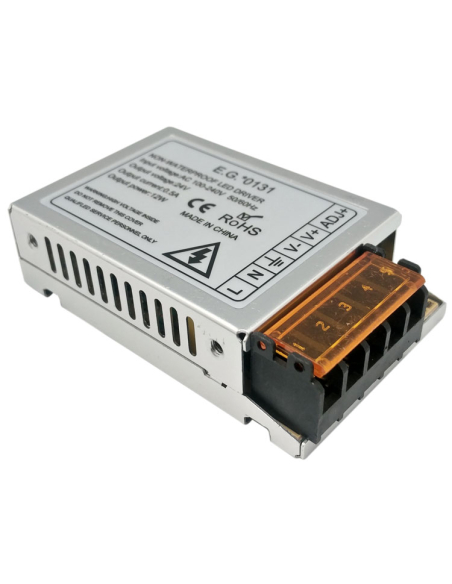

Power supply 24Vdc 0.5A 12W

Power supply stabilized industrial single output 24Vdc, rated current 0.5A, and 12W power. Supply voltage 100-230Vac.

The power supply is mounted in a very robust metal box for industrial use, for mounting on panel bottom by means of screws. High performance and reliability required for industrial use.

With a high overload capacity and protected against short circuits at the output. Automatic reset against overloads and short circuits.

Technical characteristics:

• Manufacturer/Supplier: Euroconnex
• Operating mode: Switched
• Mounting: Cabinet bottom or frame. Fastening by means of screws

• Output voltage: 24Vdc
• Rated output current: 0,625 A
• Output current range: 0 - 0,625A
• Rated output power: 12W (this model can give 15W output with an input power of 170-240Vac)
• Ripple and noise: 120mVpp
• Configuration, rise time: 100ms, 50ms/230Vac 100ms,50ms/115Vac at full load
• Standby time: 20ms/230Vac 10ms/115Vac at full load

• Input voltage: 100 - 240Vac (170-264Vac)
• Frequency range: 47 - 63Hz
• Efficiency: 80% efficiency
• Current: 0.3A 230Vac 0.5A/115Vac
• Input current: Cold start 30A 230Vac
• Leakage current

• Overload: Above 105% of rated power. Automatic reset
• Short circuit: Automatic reset

• Air convention cooling
• Power LED indicator
• No load power consumption
• Operating temperature: 0℃ to +40℃
• Operating humidity: 20% to 90% RH
• Operating conditions: -20℃ to +85℃，10% to 95%RH
• CE ROHS standard
• Dimensions: 78x47x22mm
• Protection degree: IP00

Professional use material, install in compliance with the regulations in force at the place of installation.
Attention: This item is not waterproof, keep away from water or wet surfaces.
