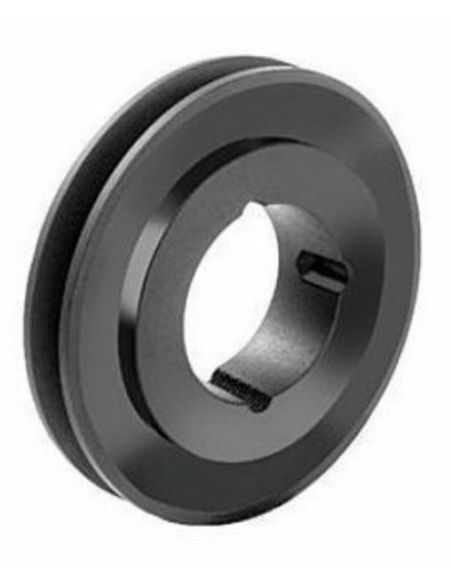

Pulley V-belt SPA 71x1 slot taper T1108

€14.24 Tax included

€11.77 tax excl.

Pulley for trapezoidal belts Ø71mm, 1 slot. Machined for conical bushing - taper lock T1108. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-71X1-T1108

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter. 71 mm.
  • number of strap slots: 1.
  • Taper: T1108

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 71mm.
  • Number of slots: 1.
  • Type of conical bushing - taper: T1108
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 71
  • (Od): 76.5
  • (F): 20
  • (L): 22
  • (M): 2
  • (N): 62
  • Taper: 1108



Material for professional use, install in compliance with the regulations in force at the place of installation.
