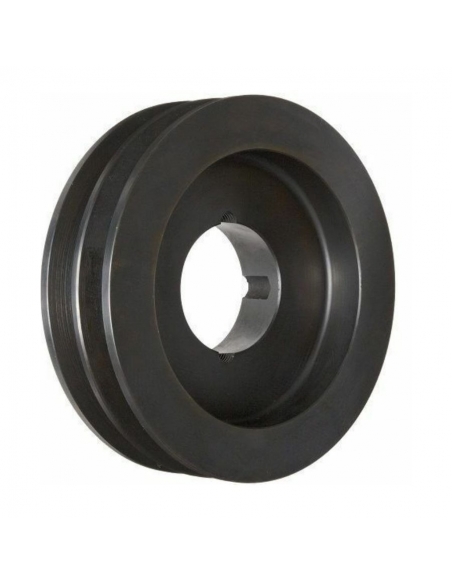

Pulley v-belt SPZ 63x2 taper slot T1108

€13.92 Tax included

11.32 tax excl.

PSPZ63X2T1108

Pulley for trapezoidal belts Ø63mm, 2 slots. Machined for conical bushing - taper lock T1108. Made of cast steel and valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPZ-63X2-T1108

Type of straps: Profile in "V" type Z and SPZ.
Diameter. 63mm.
Number of strap slots: 2.
Taper: T1108

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

Type: trapezoid profile in "V".
Models: Z and SPZ.
Material: cast steel.
Primitive diameter: 63mm.
Number of slots: 2.
Type of conical bushing - taper: T1108
Manufacturing standard: DIN2211 - ISO4183.

Note: The taper (conical bushing) is not included in the supply.

Dimensions:

(Dp): 63
(Od): 67
(F): 28
(J): 40
(K): 6
(L)22
Taper: 1108

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question

buenos días, me he pasado de medida y quiero acoplar un tuper lock a una polea. no encuentro las medidas en las que tengo que hacer los taladros a la polea para luego acoplar el tuper. el diámetro y el ángulo entre ellos. gracias asensio

Answer

Estimado cliente,

No hay que hacer taladros para el taper lock, el taper lock tiene que ser del tamaño del eje del motor y compatible con la polea. La polea tiene que ser especial para taper lock, a no ser que sea ciega, si es ciega, en este caso se taladra del tamaño del eje.

Un Saludo

ADAJUSA

asensio larrañaga on 02/13/2022 12:10:10
