Cylinder 40x80 double effect - Mindman

€67.90 Tax included

€55.20 tax excl.

MCQI21104080

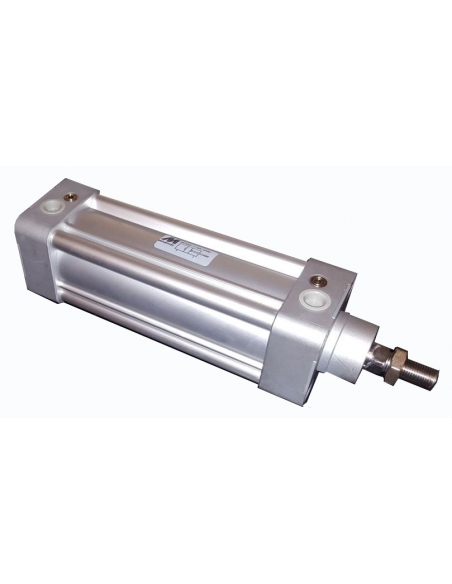

Pneumatic cylinder Ø40x80 double magnetic effect. With pneumatic cushioning, aluminum jacket and chromed steel vastago.
Reference: 281MCQI2110400080M

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

Pneumatic cylinder diameter 40 mm stroke 80mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

Manufacturer: Mindman.
Ref. 281MCQI2110400080M
Diameter and stroke: 40x80 mm.
Type: Double-effect pneumatic cylinder.
Damping: pneumatic.
Fluid type: Air with or without lubrication.
Manufacturing standard: ISO 6431.
Maximum operating pressure: 10 Bar.
Type of gaskets: NBR.
Operating temperature: -10oC to +80oC.
Type of construction: Chromed steel shank, aluminum shirt.

Dimensiones cilindros ISO Mindman
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Cylinder catalog

Download (1.1MB)

Technical data sheet cylinders

Information on cylinder characteristics

Download (1.02MB)

Questions

Question

Qual a pressão minima para um cilindro pneumático 40x75 duplo efeito - Mindman.
Obrigado pela atenção.
Cordialmente
José Correia

Answer

Bom dia.

Estimado cliente, de um modo geral, os cilindros pneumáticos funcionam normalmente bem com pressões mínimas que podem ser tão baixas como 0,2 a 0,3 bar (2 a 3 kPa) para aplicações de baixa carga e movimentos suaves. Para aplicações mais exigentes, a pressão mínima pode ser mais elevada, até 1 a 2 bar (10 a 20 kPa) ou mais.

Os nossos cumprimentos.

Adajusa.

jose correia on 06/14/2024 14:08:07
