Cylinder 40x50 double effect - Mindman

€64.64 Tax included

52.55 tax excl.

MCQI21104050

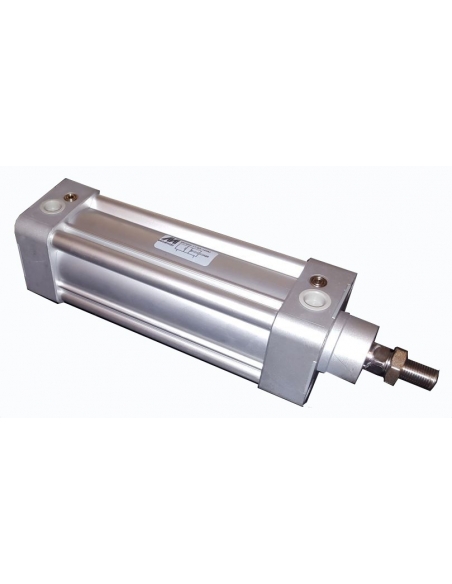

Pneumatic cylinder diameter 40x50 double magnetic effect. With pneumatic cushioning, aluminum jacket and chromed steel vastago.
Reference: 281MCQI2110400050M
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 40 mm stroke 50mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Ref. 281MCQI2110400050M
  • Diameter and stroke: 40x50 mm.
  • Type: Double-effect pneumatic cylinder.
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 6431
  • Maximum operating pressure: 10 Bar.
  • Type of gaskets: NBR.
  • Operating temperature: -10oC to +80oC.
  • Type of construction: Chromed steel shank, aluminum shirt.

Dimensiones cilindros ISO Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
Hola muy buenas tarde mire queria informacion referente a: El piston q necesito es para una plegadora de chapa y tengo un hueco de de 300mm mas cierre seria 100mm mas cual me recomendais
Answer

Buenos días,

Lamento indicarle que no conocemos la aplicaciones en concreto y los datos aportados no son suficientes para recomentar algun tipo de componentes. Lo mas adecuado es que contacto con personal técnico que le pueda calcular el cilindro en su aplicación en concreto.

Saludos

Cristobal on 09/14/2018 16:06:15
