Square joint ISO full diameter 100

Name: Square joint ISO full diameter 100
Brand: Generico-AIR
SKU: PK-CFPCAS100
Price: 60.4299 EUR
Availability: InStock

€60.43 Tax included

€49.13 tax excl.

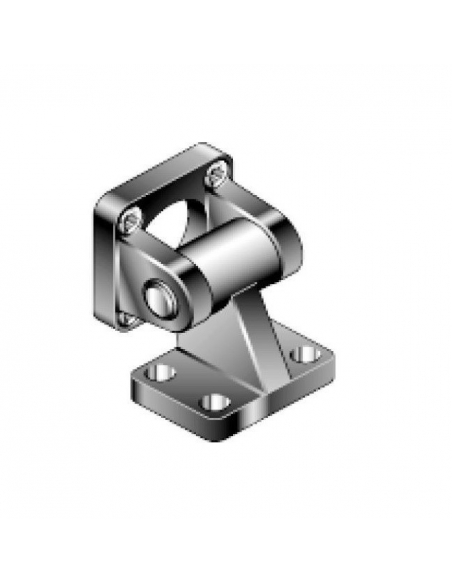

Full square artifice (tray, shaft and back cover) in aluminium for ISO cylinder of Ø100

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

100 diameter axis for ISO joint - ADAJUSA

Diameter axis 100 for ISO joint

€4.15

Aluminum counter-plate for cylinder -100 AIRON - adajusa.es

Countercharnela aluminum cylinder diameter 100

€32.52

Charnela female rear diameter 100 - adajusa.es

Charnela female rear cylinder diameter 100

€23.76

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Full square artifice in aluminium for ISO cylinder of Ø100
Manufacturer: Airon

The supply includes:

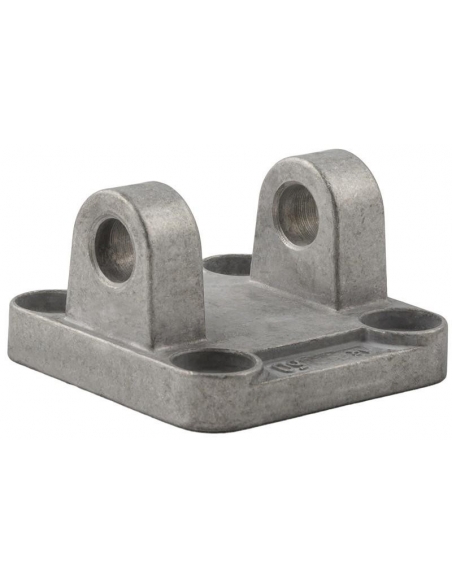

1 Hind female Charnela

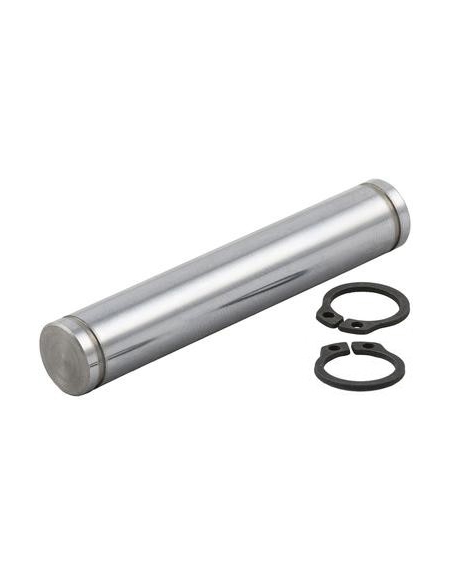

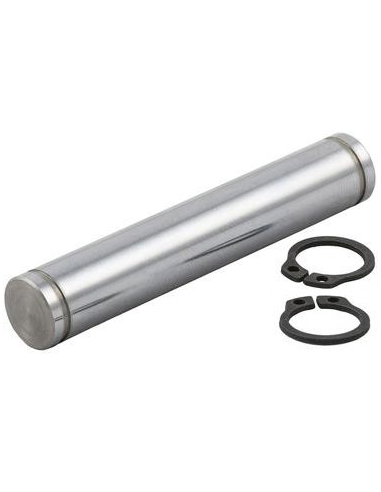

1 Shaft (bolt)

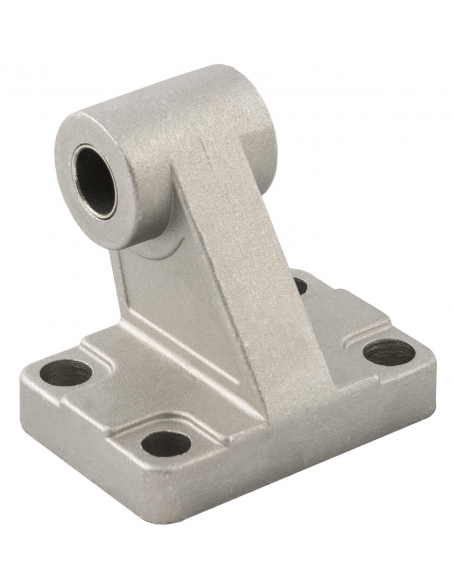

1 Countercharnela squad
8 Screws

Material for professional use, install in compliance with the regulations in force at the place of installation.
