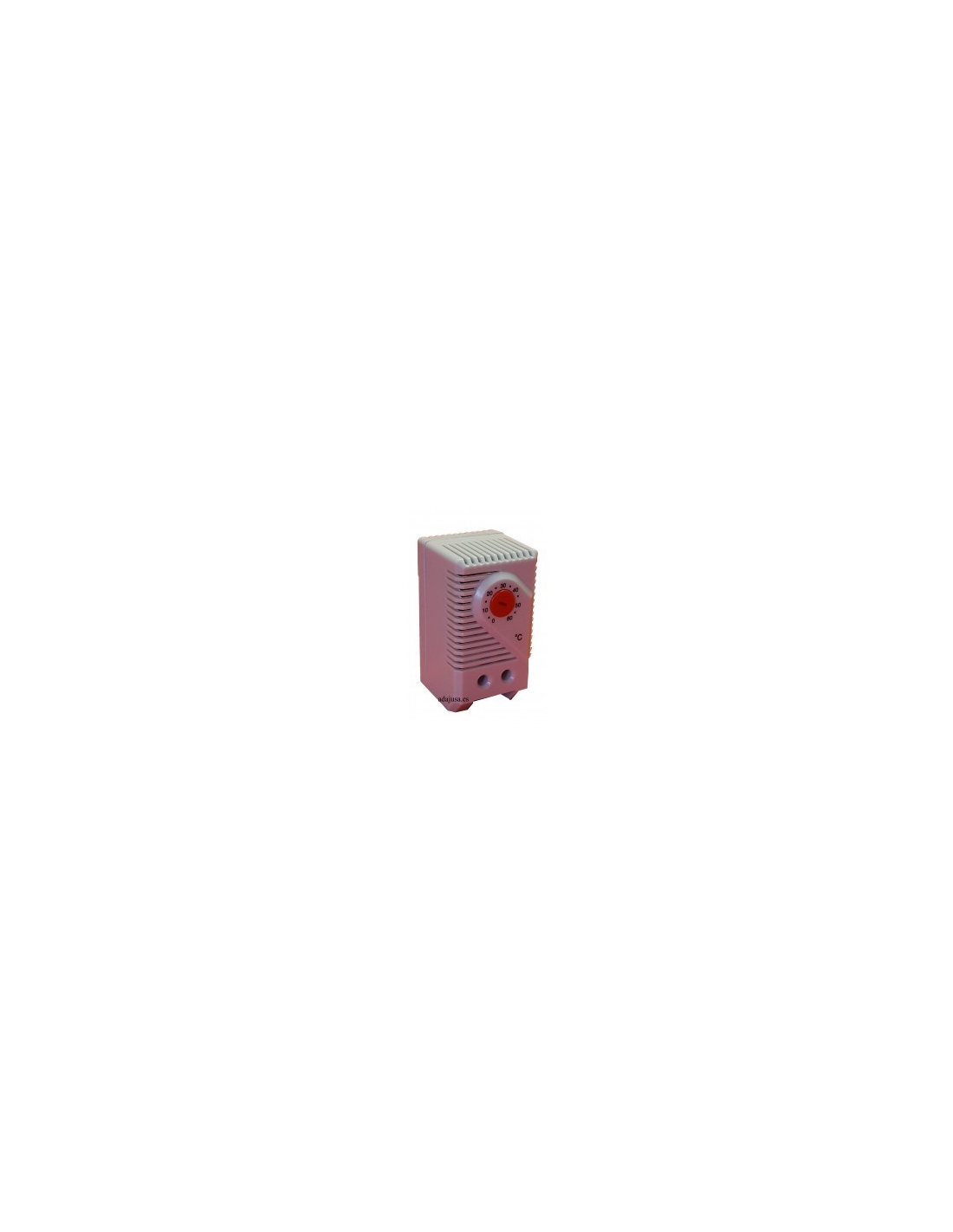

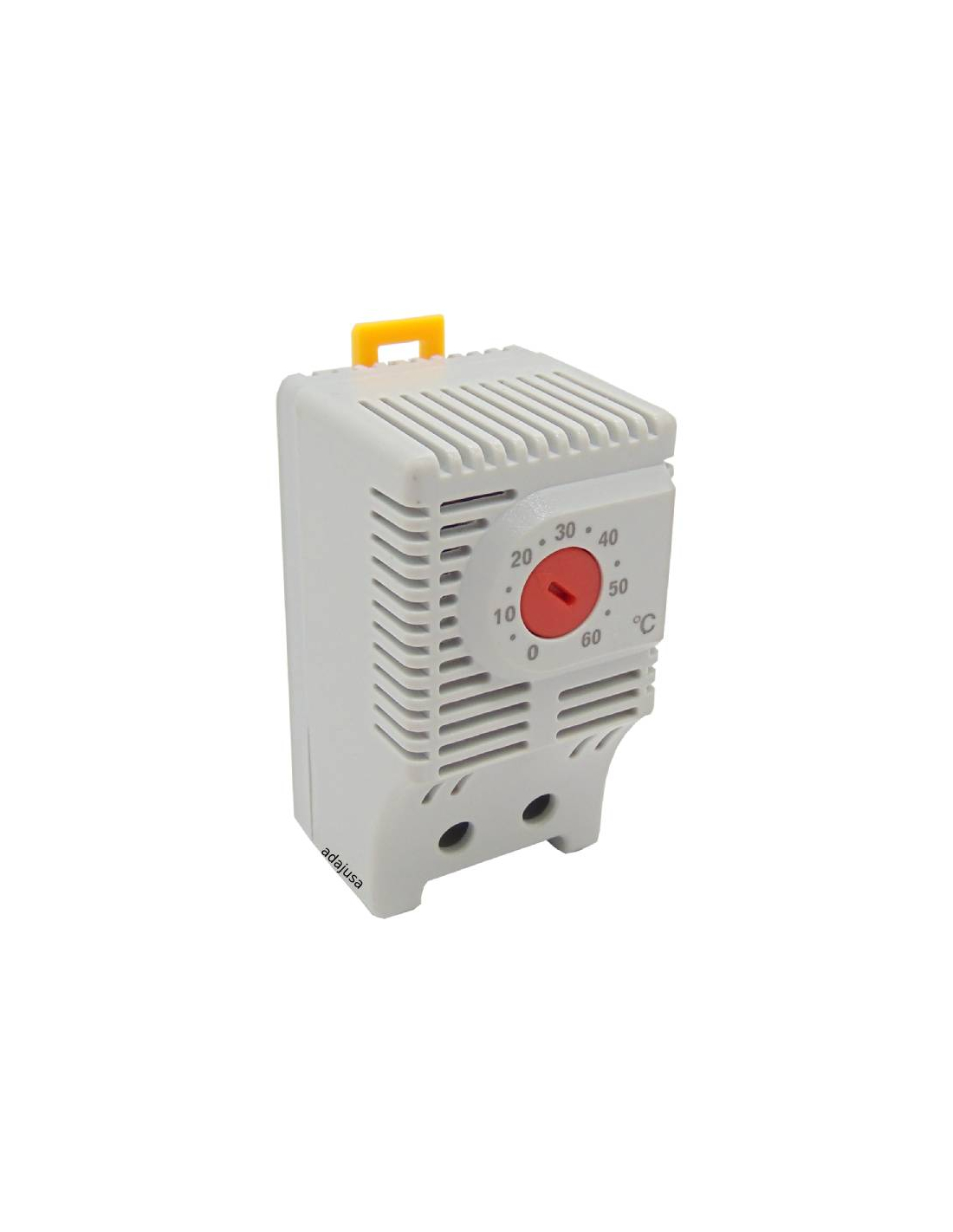

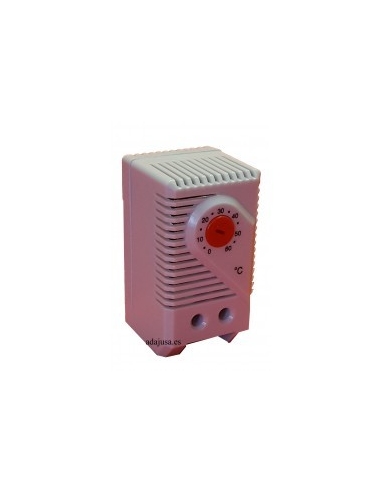

Analog thermostat closed contact

€9.73 Tax included

€8.04 tax excl.

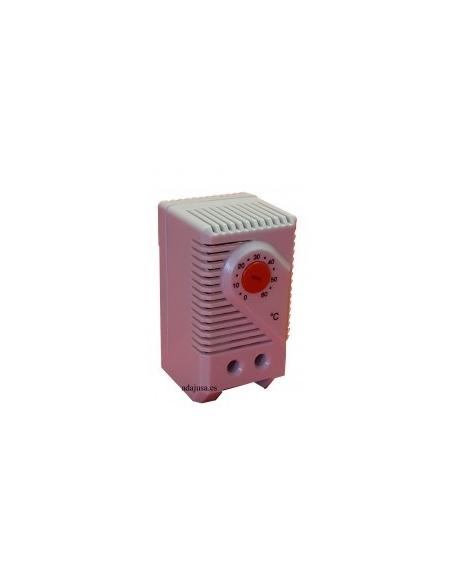

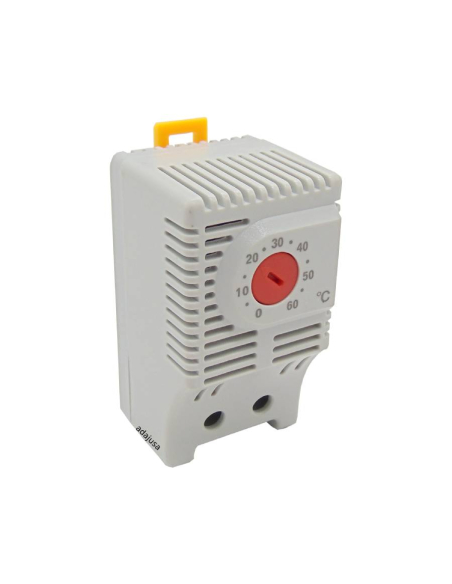

Analogthermostat with closed contact, DIN rail mounting, suitable for temperature regulation inside electrical cabinets and similar. Wide temperature range, between 0º and 60ºC. Very compact size and simple installation. Very good switching characteristics.

Part number: NTF


Esquema electrico termostato NC


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Simple thermostat for temperature control in electrical cabinets or similar environments, with a closed contact. Analog temperature control and bimetallic sensor element.

The contact will open when the set temperature is exceeded. Typical use is the control of heating elements.

Manufactured in ABS plastic material, very compact size and very easy installation on DIN rail.

They should be located in the upper area of the electrical cabinet, with the greatest possible distance from heating elements or other elements that generate heat. The ventilation openings of the thermostat must not be obstructed.

Pay special attention to the power of the load to be connected to the thermostat as this must never be exceeded; the thermostat will be irreparably damaged by overload. Install suitable protection devices and in the case of needing to use loads exceeding those that the thermostat output contact can withstand, install relays or contactors suitable for the load to be connected.

Technical specifications:

  • Manufacturer/Supplier: OMU/Mixvil
  • Part number: AKTO011NC60 / NTF
  • Contact type: 1 NC closed
  • Max. switching capacity 10 (2)A, 230Vac
  • Maximum input current: AC 16A (max. 10 seconds)
  • Temperature regulation range: 0º ~ 60ºC
  • Switching sensitivity: +/- 5°C
  • Control color: red
  • Sensor type: bimetal
  • Contact type: snap action
  • Service life: >100,000 cycles.
  • Electrical connection: two-pole screw terminal
  • Material: UL94 V-0 compliant plastic

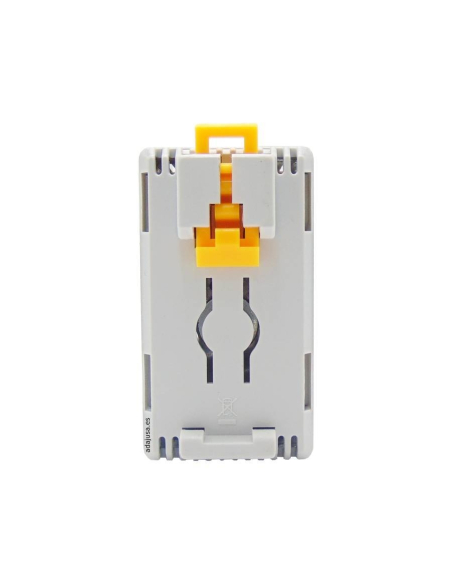

  • Mounting: 35mm DIN rail, EN 60715
  • Mounting position: any
  • Weight: 90g
  • Operating temperature: -20°C to +80°C (-4°F to +80°C)
  • Operating humidity: max. 90% RH (non-condensing)
  • Degree of protection: IP-20

Connection diagram:

Termostato AKTO ASJD

Connection example:

Note: the contacts of the bimetal element are subject to environmental influences so the contact resistance may vary. This may result in voltage drop and/or heating of the contacts.

Dimensiones termostados AKT ASJD


Professional use material, install in compliance with the regulations in force at the place of installation.
