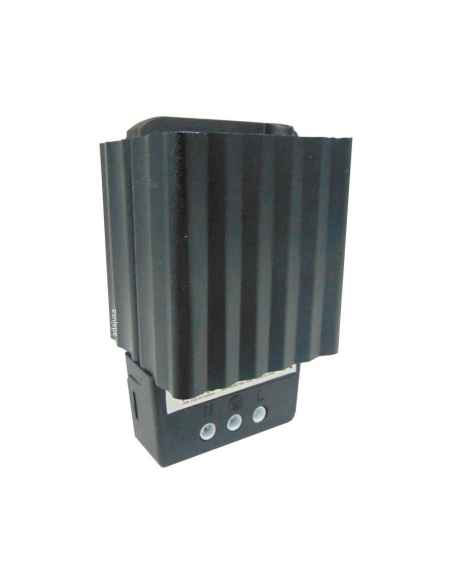

Heating resistor for electrical cabinets 30W 230V
Heating resistor for electrical cabinets 30W 230V

Heating resistor for electrical cabinets 30W 230V

€16.00 Tax included

€13.22 tax excl.

30W heating resistor suitable for regulation, temperature and humidity control inside cabinets and electrical panels.

PTC resistor with temperature limiter. Quick connection by means of snap terminals, with DIN rail mounting clip.

Part number: FT151-30

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Heating resistor that ensures rapid and homogeneous heating inside electrical panels and cabinets. Mainly used to heat the panel when the ambient temperature is too low and thus ensure the proper functioning of its components or to prevent condensation from forming inside the panel which can cause undesirable effects on its components, such as short circuits, oxidation of the contacts and reduction of the service life of the components.

It should be installed in a vertical position (connection terminal downwards) to favor convention and combined with a thermostat or hygrostat, to avoid low temperatures or excess humidity and to maintain a minimum distance from adjacent components. As far as possible, it should be located in the lower part of the box or cabinet.

In large enclosures the best way to achieve uniform heat distribution is to incorporate several small power resistors.

The connection cables should not be in contact with the body of the heater nor should they be in direct contact with the hot air outlet.

  • Manufacturer/Supplier: OMU/Mixvil
  • Part number: FT151-30
  • Supply voltage: 230Vac
  • Heating power: 30W
  • Heating element: PTC resistor, temperature limiter
  • Heater body: Extruded aluminium profile, anodized
  • Connection: 3 push-in terminals for stranded cable 0.5 to 1.5 mm2 and solid wire 0.5- 2.5mm²
  • Connection housing: Plastic according to UL94 V-0, black
  • Mounting: Clip for 35mm DIN rail, EN 60715
  • Mounting position: Vertical air flow (air outlet upwards)
  • Operating/storage temperature: -45 to +70oC
  • Humidity: Max. 90% RH (non-condensing)
  • Degree / Class of protection : IP20 / I (grounded)
  • Heater body dimensions: 65x61x64 mm (without junction box)
  • Weight: 0,25kg










Material for professional use, install in compliance with the regulations in force at the place of installation.
