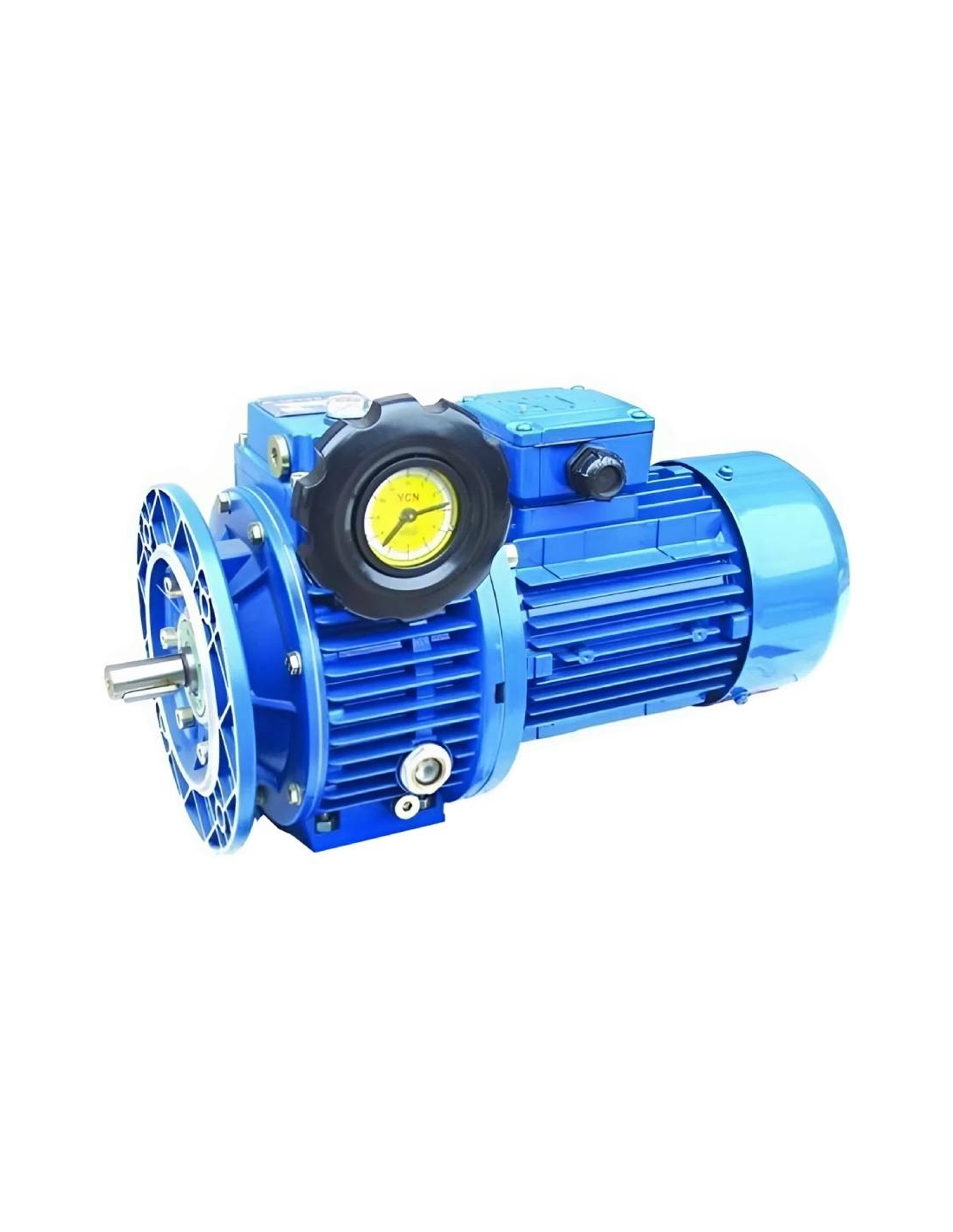

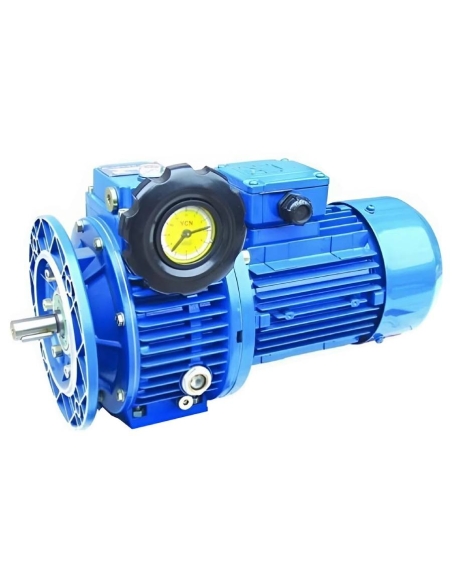

Mechanical motorboat composed of planetary disc drive size 80, with output flange PAM 19/200, and three-phase motor of 1HP (0.75kw) 230/400Vac 1500 rpm.
The variation of the turning speed of the output shaft is continuous in a speed range between 950 and 190 rpm, this is achieved by acting on a steering wheel, the regulation of the steering wheel is continuously, silent and uniform thanks to the high and symmetrical number of contact points of the variation mechanism. It stands out for its ease of adaptation and assembly, coaxial shape, compact and small dimensions.
Technical details:
- Type: VTF 0.75B5.
- Engine type: Three-phase asynchronous.
- Voltage: 230/400V. III. 50 Hz.
- Power: 0.75Kw (1HP).
- Intensity (In) to 400Vac: 1.85A.
- Number of motor poles: 4.
- Engine revolutions: 1390 rpm.
- Engine housing size: 80.
- Degree of protection: IP-55.
- Reducer size: 80.
- Output rpm range approx: 950..190 rpm.
- Output flange: B5.
- Output axle: 19mm.
- Output flange: 200mm.
- Lubrication: ISO VG320 oil.
- Housing material: Aluminum.
- Color: Blue.
Dimension Summary:
It should be noted that this type of mechanical drives require maintenance, the amount of lubrication oil must be checked and that they cannot be regulated standing still, if regulation is attempted with the inverter stopped, there will be a mismatch of the planetarium system, you cannot work under these conditions, there will be excessive heating of the regulator and if this situation is maintained over time , a serious breakdown thereof. Please note that such incidents are not covered by the warranty.
| Material for professional use, install in compliance with the regulations in force at the installation site. |
