Current transformer 100/5A size 40 AV40SH series
Current transformer 100/5A size 40 AV40SH series

Current transformer 100/5A size 40 AV40SH series

€13.52 Tax included

€10.99 tax excl.

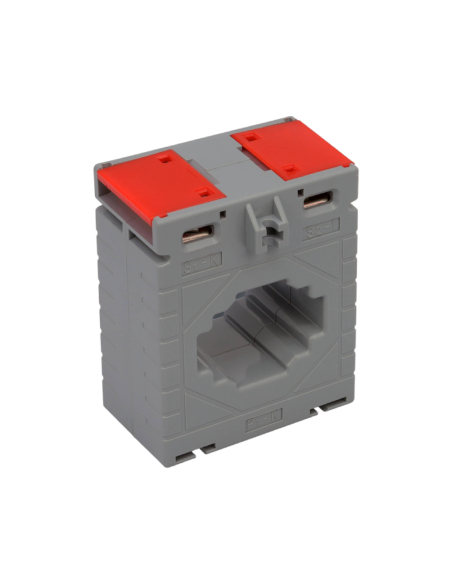

Window type current transformer size 40 for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame, with cable or bus bar . Accuracy class 0.5. Current transformation ratio 100/5A.


Reference: AV40100SH


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Current transformer, with 100/5A ratio, for use with measurement and control elements. Window type transformer, the conductor passes through the central hole and can be a cable or bar. Supplied with mounting accessories.

The usual application is for measurement and control instruments, providing a transformer ratio of 100/5A, that is, when a current of 100A flows through the central conductor, 5A will flow through its secondary.

This current transformer is not suitable for safety applications.




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: AV40100SH
  • Ratio: 100/5A
  • Type: Window
  • Accuracy class: 0.5
  • Secondary power: 2.5VA
  • Nominal voltage: 660Vac
  • Nominal insulation voltage (Ui): 720V
  • Nominal thermal current (Ith): 50xIn
  • Nominal dynamic current (Idin): 2.5xIth
  • Safety factor: FS 5
  • Driver diameter: 30mm
  • Bar width: 40mm
  • Ambient temperature: -5ºC to 45ºC
  • Weight: 500g
  • Use: indoor
  • Standards: EN 60051, EN 61010








Professional use material, install in compliance with the regulations in force at the installation site.
