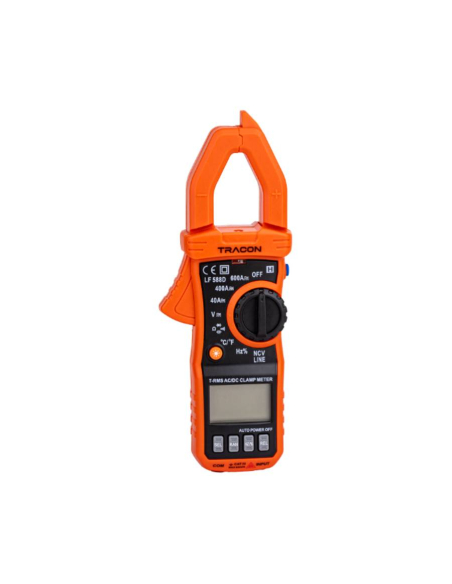

LF588D multifunction AC/DC current Clamp
LF588D multifunction AC/DC current Clamp
LF588D multifunction AC/DC current Clamp
LF588D multifunction AC/DC current Clamp
LF588D multifunction AC/DC current Clamp
LF588D multifunction AC/DC current Clamp

LF588D multifunction AC/DC current Clamp

€77.42 Tax included

€63.98 tax excl.

Current Clamp with true RMS value and CAT III 600V measurement category. Performs measurements of AC/DC voltage (600V), AC/DC current (600A), resistance, frequency, capacity, temperature, diode test and continuity. Ideal for use in laboratories, home and other basic applications.

Reference: LF588D


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Current Clamp with true RMS value and CAT III 600V measurement category. Performs measurements of voltage, current, frequency, capacity, temperature, diode testing, continuity and non-contact voltage detection (NVC). Excellent performance equipment ideal for use in laboratories, factories, homes and other basic applications. Inner diameter of the clamp 23mm.

Manufacturer/Supplier: Tracon
Reference: LF588D


Technical specifications:

  • DC voltage: 400mV - 600V
  • AC voltage: 400mV - 600V
  • AC/DC Current: 40A - 400A - 600A
  • Resistance: 400Ω - 40MΩ
  • Frequency: 10Hz - 10MHz
  • Capacity: 10nF - 100mF
  • Temperature: -20ºC - 1000ºC
  • Diodes: 1.5V / 1mA
  • Continuity:
  • Non-contact voltage detection (NVC): 30 - 1000Vac


Other functions and features:

  • 4 digit LCD display
  • Measurement interval selection: Automatic
  • HOLD function (data retention )
  • Relative value
  • Low battery indicator
  • Auto power off
  • Flashlight
  • Maximum opening size: diameter 23mm
  • Operating temperature: 0～40°C
  • Battery: 1.5V 3xAAA (not included)
  • Protection grade: IP20
  • Dimensions: 194 × 72 × 35mm
  • Weight: 230g

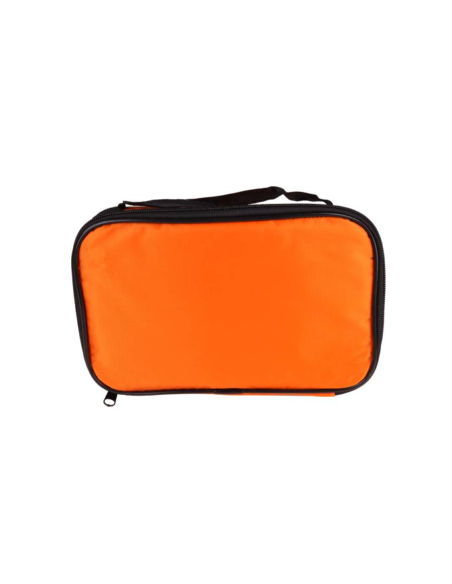

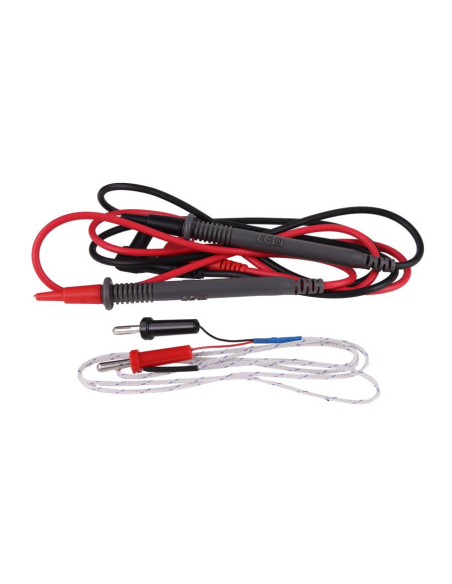

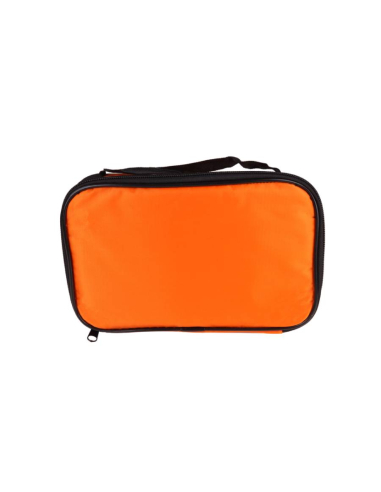

  • Accessories: Case, test leads, temperature probe
  • Regulations: EN 61010
