MCB circuit breaker 2 poles 20A (2x20A) Curve C -  LS
MCB circuit breaker 2 poles 20A (2x20A) Curve C -  LS

MCB circuit breaker 2 poles 20A (2x20A) Curve C - LS

€6.22 Tax included

€5.14 tax excl.

MCB circuit breaker 2 20a Curve C for protection against short circuits and overloads, in single-phase or biphasic installations. With an breaking capacity of 6000A.

Reference: BKJ63N 2P C20A

Esquema eléctrico magnetotérmico 2x16A

Lototipo LS LG Industrial Systems

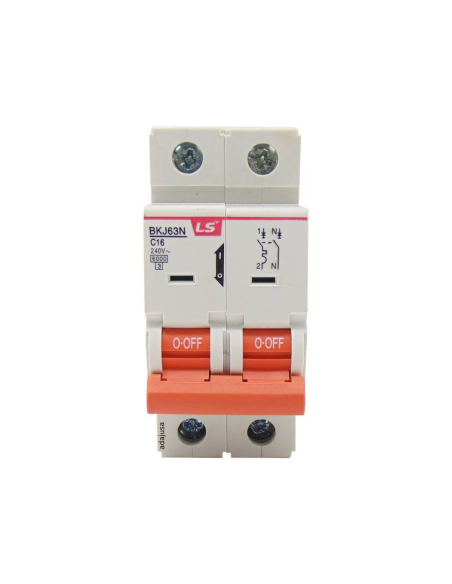

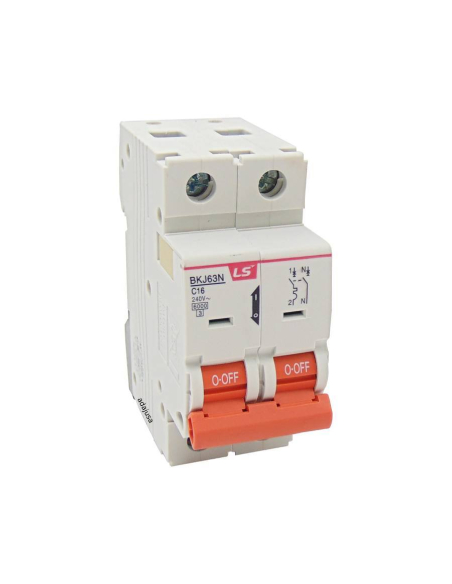

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


MCB circuit breaker 2 poles 20A curve C for protection against short circuits and overloads in domestic and industrial installations. Protects both drivers. Suitable for use in both single and biphasic installations. High cutting power assigned, 6000A according to IEC 60898-1.

High reliability and performance allowing a high number of duty cycles.

Main features of MCB circuit breaker:

  • Manufacturer/Supplier: LS (LG Industrial Systems)
  • Reference: BKJ63N 2P C20A
  • Nominal MCB circuit breaker intensity: 20A
  • Number of poles: 2 (2x20A)
  • Use of MCB circuit breaker: domestic, tertiary and industrial sector
  • MCB circuit breaker cutting power: 6000A
  • Operating voltage: 230/400Vac 50/60Hz
  • Shooting curve: C
  • Mechanical life: >6000 operations
  • Regulations: IEC60898-1
  • Marking: CE
  • Allows the use of Pin-type connection combs
  • Connection capacity: 25mm2 cable
  • Width: 2 modules (2x17.8mm)

Material for professional use, install in compliance with the regulations in force at the installation site.
