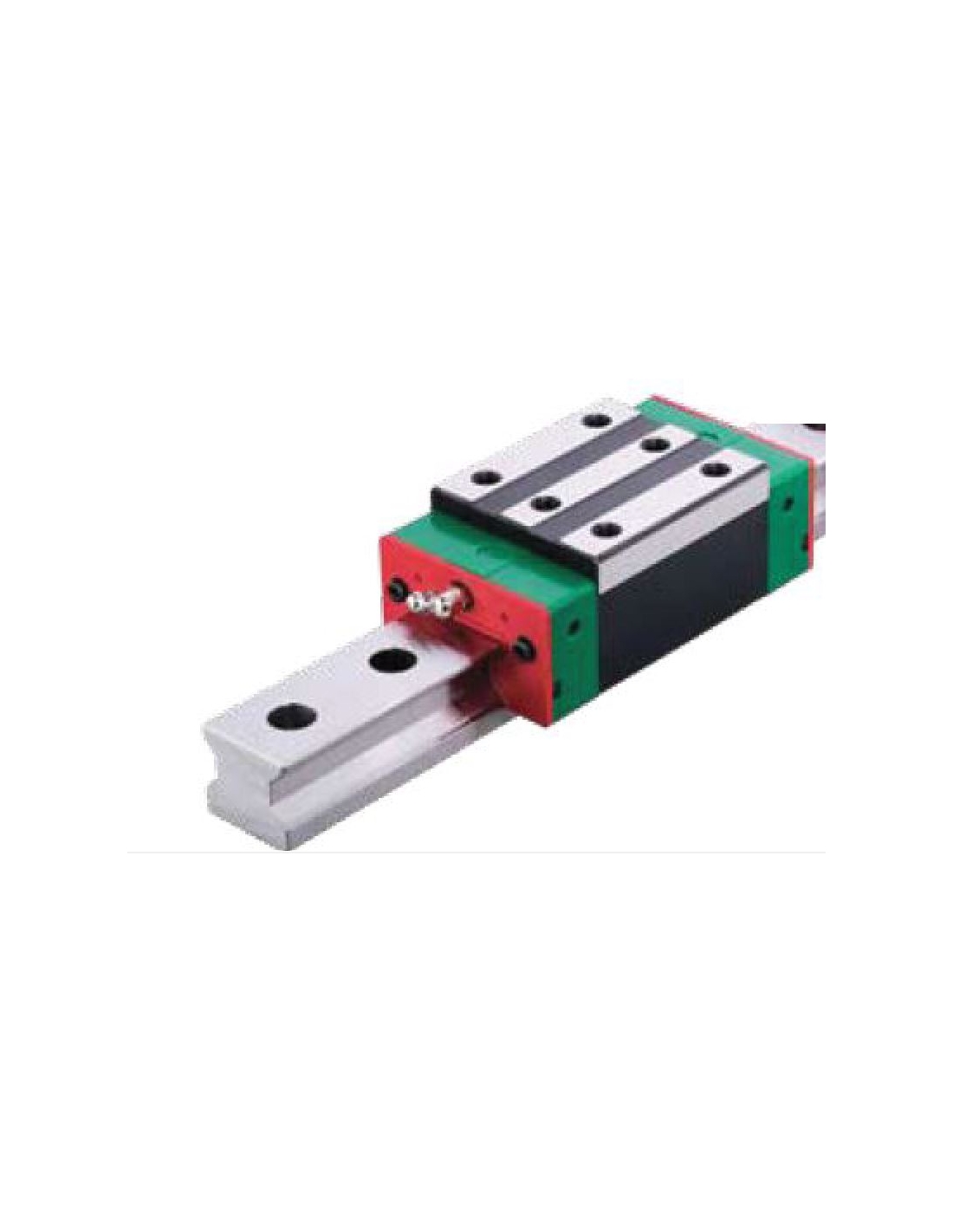

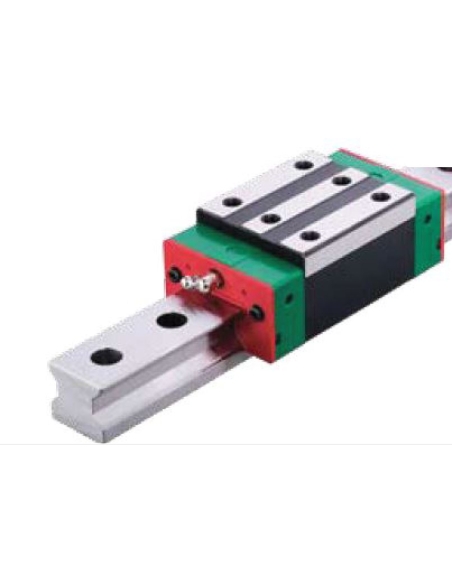

Linear guideways square size 20 light preload HGH20CAC - Hiwin

€52.36 Tax included

€42.57 tax excl.

HGH20CAC

Linear guideways linear ball bearing square HIWIN HGH20CAC size 20, high load (C), standard accuracy (C) and light preload (Z0). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision transport systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement providing the ability to take loads in any direction.



Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!
Privacy
Shipments
Returns


Linear guideways square linear ball bearing HIWIN HGH20CAC size 20, high load (C), standard accuracy (C) and light preload (Z0), allows high positioning accuracy with very low rolling resistance. Manufactured with 4 bearing circuits with a 45° arrangement allows load taking from any direction. Very high load capacity and long service life, it allows high precision movements without producing stick-slip effects. Due to its low coefficient of friction, it allows a high sliding speed.


Supplied with grease nipple for easy maintenance. They only require minimal lubrication. Supplied with a sealing system consisting of front and bottom seals, to prevent the entry of foreign substances, such as dust particles, chips or any other element, in the ball paths of the slide.

They can be installed in any position, and the fixing is by means of threaded holes on the slide body.




HG series recommended for: Grinding machines, milling and drilling machines, lathes, machining centers, woodworking

Preload Z0: Light preload 0 - 0.02 Cdyn. Constant load direction, low vibration, lower accuracy required



Manufacturer: HIWIN

Manufacturer's reference:

- HGH20CAC (high load; skid mounting from above; Z0 preload; C accuracy)

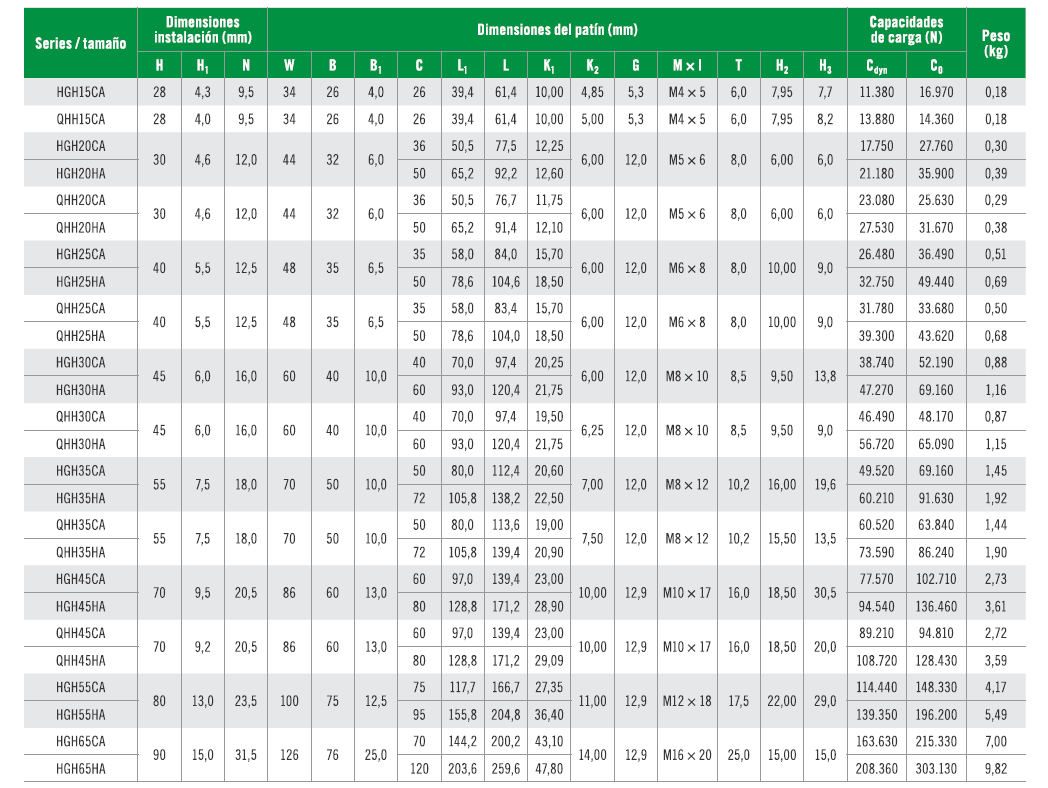

Dimensions:



For other sizes or executions consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments "

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Linear guideways fins size 25 preloaded HGW25CCZAH - Hiwin| ADAJUSA : price
3 days delivery time
Linear and guideways

Linear guideways size 25 fins preloaded HGW25CCZAH - Hiwin

HIWIN
HGW25-CCZAH
€73.81 (€60.01 tax excl.)
Linear guideways linear ball bearing with flange (fins) HIWIN HGW25CCZAH size 25, high load (C), high accuracy (H) and medium preload (ZA). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision conveyor systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement...
Guide rail size 20 HIWIN - ADAJUSA
Special material, cut to size , delivery time approximately 3-5 days
Linear and guideways

Guide rail size 20 HG series precision C- Hiwin

HIWIN
HGR20RC
Starting from €100.39 (€81.62 tax excl.)
Rail (guide) for recirculating ball skates size 20 precision C. Reference: HGR20RC Cut the guide to the desired size between 300 mm and 1,800 mm. Indicate the length you want in the side menu. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
View
3 days delivery time
Linear and guideways

Linear guideways square size 25 light preload HGH25CAC - Hiwin

HIWIN
HGH25CAC
€65.37 (€53.15 tax excl.)
Linear guideways linear ball bearing square HIWIN HGH25CAC size 25, high load (C), standard accuracy (C) and light preload (Z0). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision conveyor systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement providing the...
3 days delivery time
Linear and guideways

Linear guideways square size 25 light preload HGH25HAC - Hiwin

HIWIN
HGH25HAC
€89.78 (€72.99 tax excl.)
Linear guideways square linear ball bearing HIWIN HGH25HAC size 25, super high load (H), standard accuracy (C) and light preload (Z0). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision transport systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement...
3 days delivery time
Linear and guideways

Linear guideways square size 35 preloaded HGH35HAZAH - Hiwin

HIWIN
HGH35HAZAH
€139.06 (€113.06 tax excl.)
Linear guideways linear ball bearing square HIWIN HGH35HAZAH size 35, super high load (H), high accuracy (H) and medium preload (ZA). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision conveyor systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement providing...
Guide rail size 35 HIWIN - ADAJUSA
Special material, custom cut, delivery time 3-5 days approximately
Linear and guideways

Guide rail size 35 HG series precision H - Hiwin

HIWIN
HGR35RH
Starting from €152.08 (€123.64 tax excl.)
Linear rail (guide rail) for HG series recirculating ball slides size 35 with precision H.Reference: HGR-35R-H Cut the guide to the desired size between 300 mm to 2,000 mm. Indicate the length you want in the side menu.Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.
View
3 days delivery time
Linear and guideways

Linear guideways square size 35 light preload HGH35CAC - Hiwin

HIWIN
HGH35CAC
€94.67 (€76.97 tax excl.)
Linear guideways linear ball bearing square HIWIN HGH35CAC size 35, high load (C), standard accuracy (C) and light preload (Z0). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision conveyor systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement providing the...
3 days delivery time
Linear and guideways

Linear guideways square size 25 preloaded HGH25HAZAH - Hiwin

HIWIN
HGH25HAZAH
€96.06 (€78.10 tax excl.)
Linear guideways linear ball bearing square HIWIN HGH25HAZAH size 25, super high load (H), high accuracy (H) and medium preload (ZA). Designed specifically for linear positioning systems in applications such as milling machines, lathes, high precision conveyor systems. The HG series of slides HIWIN consists of four raceways in a 45° arrangement providing...
Guide rail size 25 HIWIN - ADAJUSA
Special material, cut to size , delivery time approximately 3-5 days
Linear and guideways

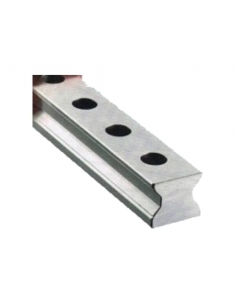

Guide rail size 25 HG series precision H - Hiwin

HIWIN
HGR25RH
Starting from €122.39 (€99.50 tax excl.)
Linear rail (guide rail) for HG series recirculating ball skates size 25 precision H. Reference: HGR-25R-H Cut the guide to the desired size between 300 mm and 1,800 mm. Indicate the length you want in the side menu. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
View
Linear guideways fins size 35 light preload HGW35HCC - Hiwin| ADAJUSA : price
3 days delivery time
Linear and guideways

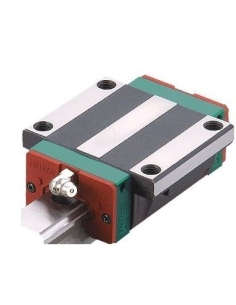

Linear guideways fins size 35 light preload HGW35HCC - Hiwin
