Pressure Regulator with pressure gauge and...
Pressure Regulator with pressure gauge and lockable 1/4 0-8 bar size 1 series FRL EVO - Aignep

Pressure Regulator with pressure gauge and lockable 1/4 0-8 bar size 1 series FRL EVO - Aignep

€37.04 Tax included

€30.11 tax excl.

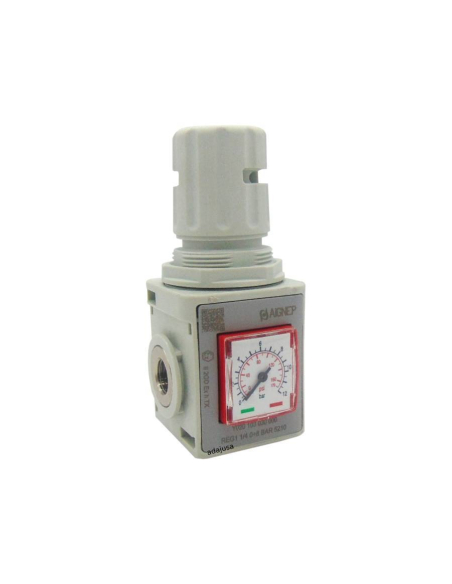

1/4 pressure Regulator with integrated pressure gauge, range of 0-8 bar , size 1, technopolymer body and metal finishes . It allows stability of the outlet pressure at the preset pressure . Possibility of fixing using side holes. Padlock locking system. Made in Italy.

Series: FRL Evo
Reference: Y020103030000

Aignep logo normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 pressure Regulator with integrated pressure gauge, range 0-8 bar . It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Compact size (T1). Fixing using side holes. Knob with padlock lock and possibility of coupling various regulators in series with individual pressure regulation.




FRL EVO LOCK REGULATOR




It supports many different types of assembly, with the appropriate accessories.

Technical characteristics.

  • Manufacturer: Aignep
  • Reference: Y020103030000
  • Regulator size: size 1.
  • Threaded connection size: 1/4".
  • Regulation range: 0-8 bar .
  • Maximum inlet pressure: 15 bar .
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 2600
  • Fluid: Compressed air or other inert gases
  • Wall fixing screws: M5x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Mounting accessories both individually and in series: not included

For other sizes or references: consult.



Dimensions of syntesi regulator size 1 Metal Work

REGULATOR FLOW T1

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
