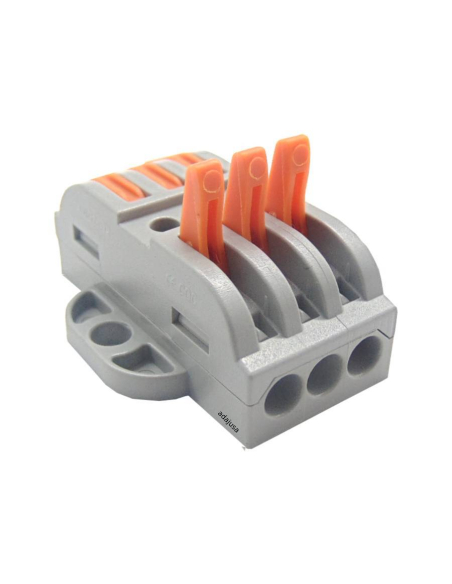

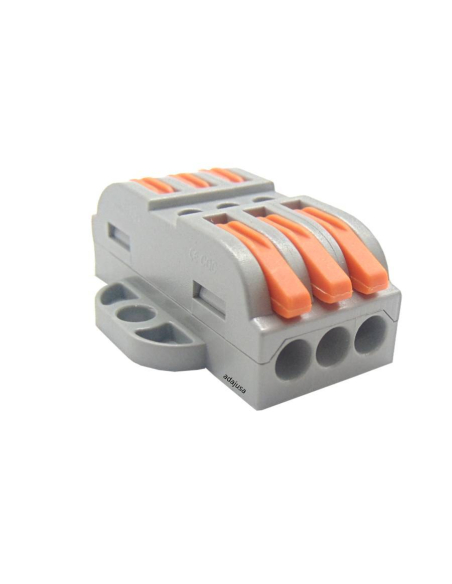

Double quick connection terminal 3 poles 32A

Name: Double quick connection terminal 3 poles 32A
Brand: TRACON
SKU: OVOFT33
Price: 1.12 EUR
Availability: InStock

€1.12 Tax included

€0.91 tax excl.

OVOFT33

32A, 400Vac 3-pole quick-connect double terminal for conductors from 0.5 to ^4mm2. Screwless quick connection that guarantees a simple and safe electrical connection.

Part number: OVOFT33

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Double 3-pole quick connection terminal 32A 400Vac, for rigid and flexible conductors with cross-section between 0.5 - ^4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.

Features

Manufacturer/Supplier: Tracon
Product reference: OVOFT33
Conductor cross section: 0.5 - 4mm²
Rated current: 32A
Rated voltage: 400V
Number of poles: 3
Insulation material: Polycarbonate (PC)
Material of contact: Tin-plated electrolytic copper
Flammability class of insulation material according to UL94: V0
Operating temperature: ^-10oCto ^+55oC
Degree of protection: IP20

Dimensions:

L: 39.3mm; W:30.3mm; H: 14.5mm

Material for professional use, install in compliance with the regulations in force at the place of installation .

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

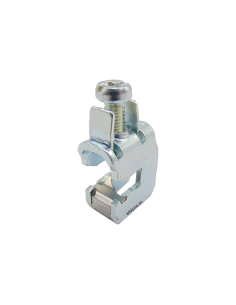

Direct mounting terminal block 120-300mm2 thickness 10mm | Adajusa
