€5.76 Tax included

€4.76 tax excl.

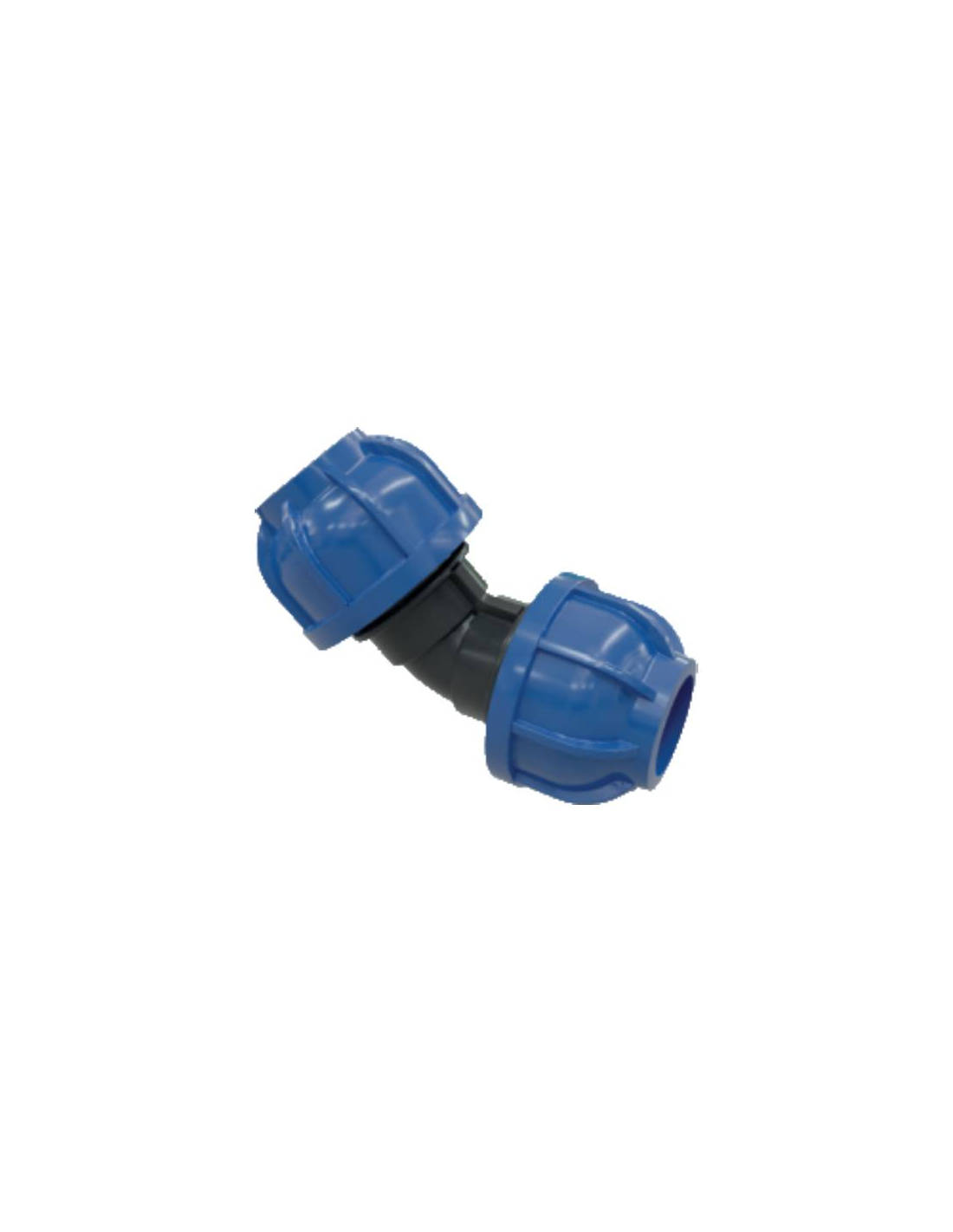

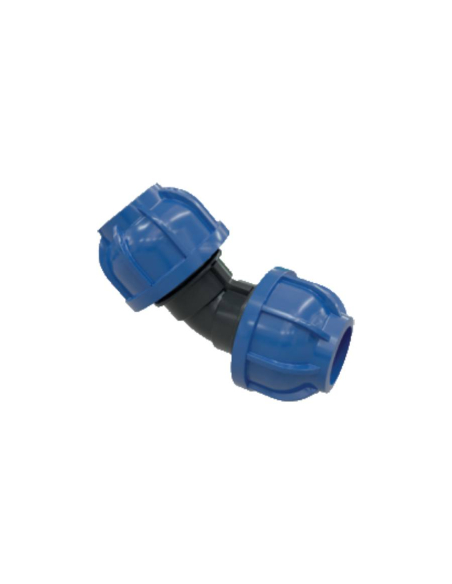

45º elbow union fitting for 20mm outer diameter tube, body and nut made of nylon. Fitting for 45º elbow joints, with a quick coupling system that guarantees easy assembly and design versatility in compressed air, vacuum and inert gas networks and installations.


Reference: R245.020.020




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

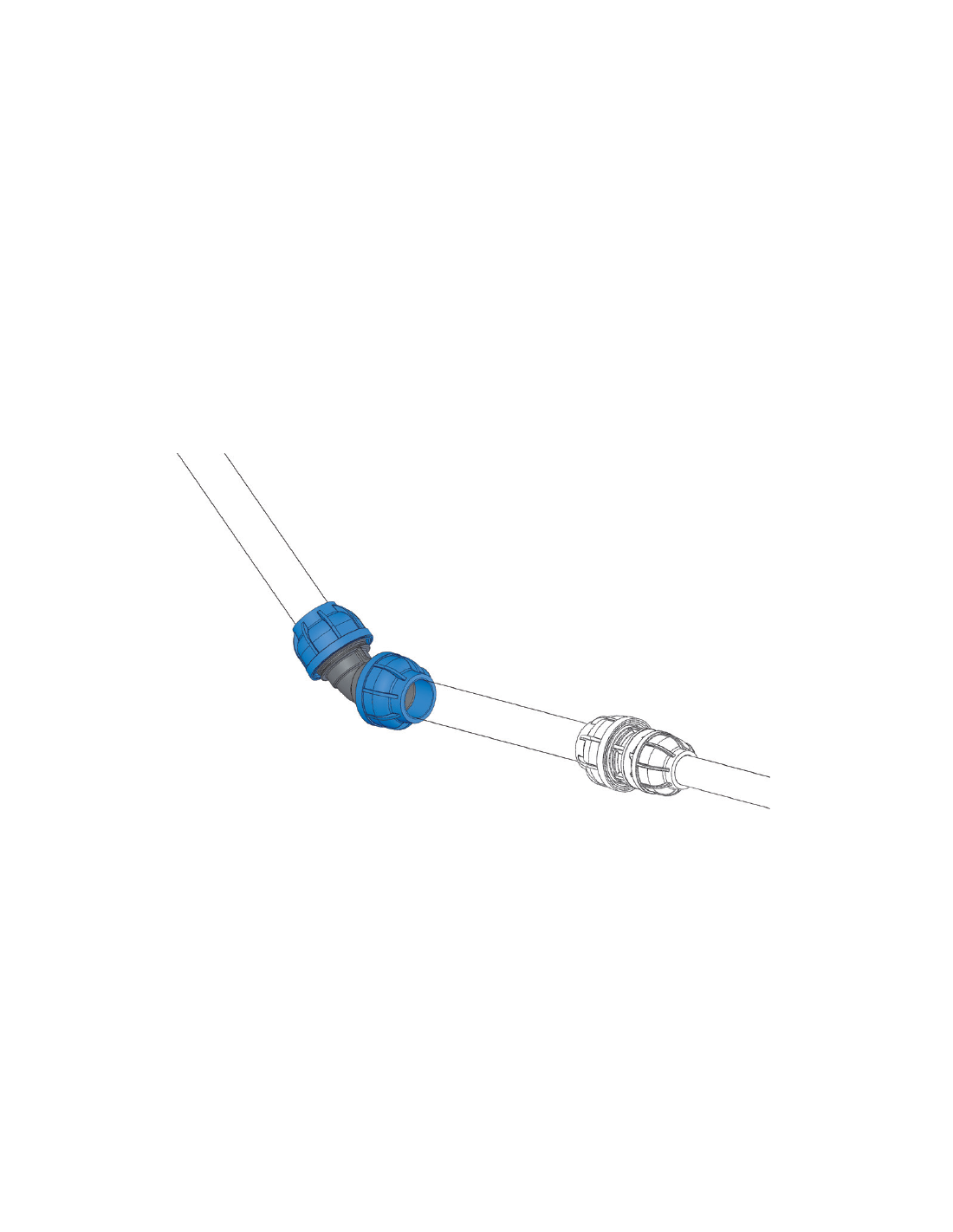

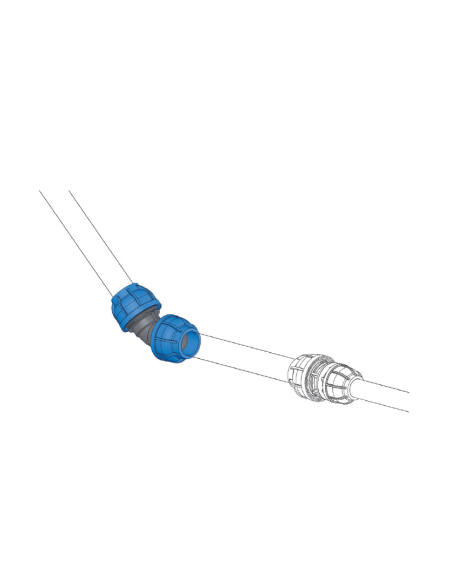

angled intermediate fitting for 20mm outer diameter tube, black nylon body and blue nylon nut, NBR O-ring. This type of 45º elbow fitting allows a simple and quick union of straight sections of pipes of the same diameter in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need for welding or tighten the ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: R245.020.020
  • Diameter: 20mm
  • Fitting type: 45º elbow
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Clamping ring: AISI 301 Stainless steel
  • Retention: NBR
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 44mm; B = 66.50mm
  • Weight: 65g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.


dimensionselbow45





Material for professional use, install in compliance with the regulations in force at the installation site.
