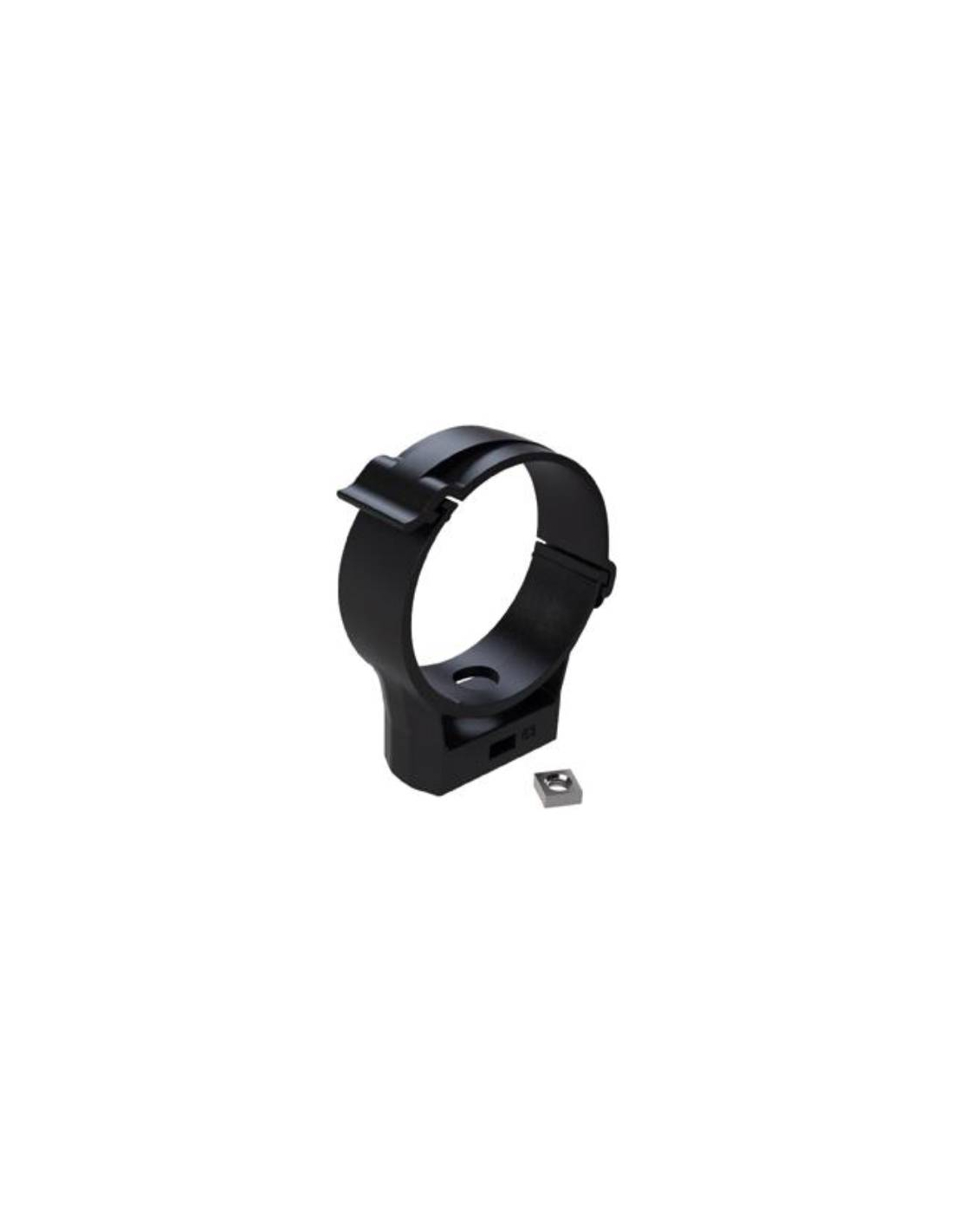

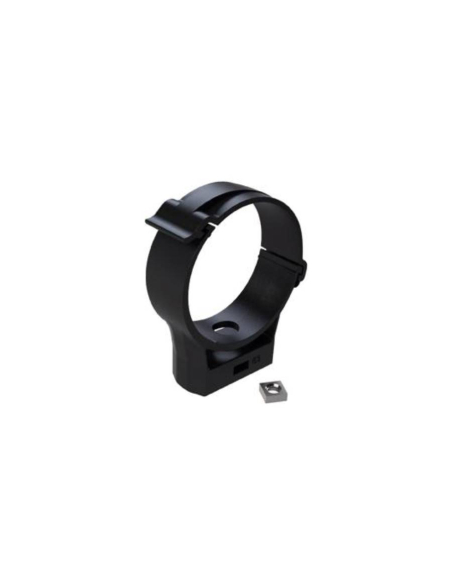

Clamp for 20mm pipe

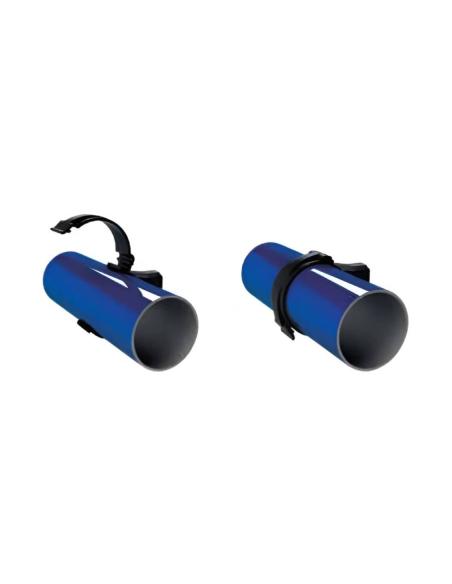

Clamp or collar for the clamping of 20 mm diameter aluminum pipe in distribution networks. The clamp, made of technopolymer, has a fast and safe clip-type mechanism for closing and gripping the pipe, presenting a great resistance to opening thanks to its wide hooking surface. Includes M6 metric nut for mounting.

Quick and easy mounting on walls, ceilings, partitions, beams, supports... both in horizontal and vertical position, depending on the desired configuration of the distribution network. It can be fixed in different ways depending on the place where it is to be installed: with screw and locknut, with nut and external screw, with threaded plug...


This type of element has the function of supporting the pipe, a sufficient number of clamps must be fixed to guarantee the correct fastening of the pipe, being these an essential accessory to guarantee a good stability and fixation of the pipe network in the installations. It is recommended to install at least two clamps per pipe; in addition, this type of fastening allows the phenomena of expansion and contraction due to the pressure of the fluid circulating inside the ducts to occur freely, and can also create a fixed point of blockage without allowing it to slip.

Characteristics:

• Manufacturer: Aignep
• Part number: 90815 20
• Series: Infinity
• Tube diameter: 20mm
• Material: Technopolymer
• Application: Compressed air, vacuum, inert gas (nitrogen, argon)

Material for professional use, install in compliance with the regulations in force at the place of installation.
