€14.30 Tax included

€11.82 tax excl.

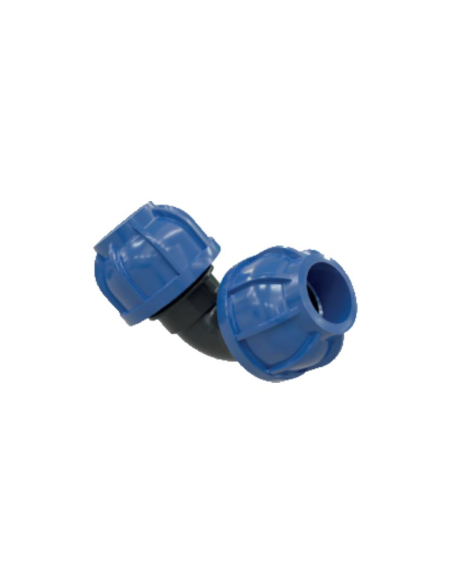

"L" union fitting for 40mm outer diameter tube, body and nut made of nylon. Fitting for 90º elbow joints, with a quick coupling system that guarantees easy assembly and design versatility in compressed air, vacuum and inert gas networks and installations.


Reference: R213.040.040




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

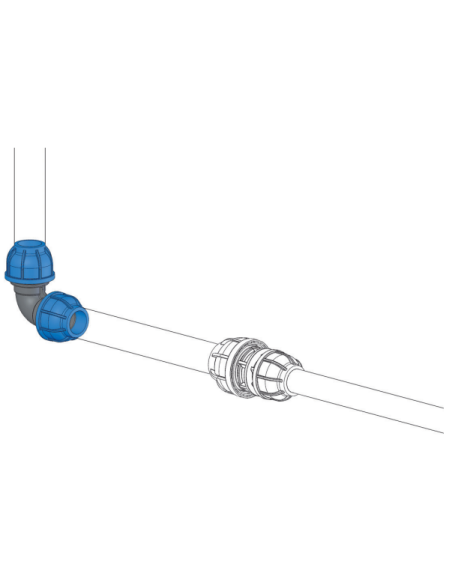

angled intermediate fitting for 40mm outer diameter tube, black nylon body and blue nylon nut, NBR O-ring. This type of "L" shaped fitting allows a simple and quick union of straight sections of pipes of the same diameter in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need soldering or tightening the ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: R213.040.040
  • Diameter: 40mm
  • Fitting type: 90º elbow
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Clamping ring: AISI 301 Stainless steel
  • Retention: NBR
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 72mm; B=127.5mm
  • Weight: 243g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.








Material for professional use, install in compliance with the regulations in force at the installation site.
