Control panel and protection 2x40A electric vehicle charging Schuko socket ECO-VE-COMBI-2P40T15S - Toscano

Delivery time 3-4 days

€212.18 Tax included

172.5 tax excl.

VE-C-2P40T15S

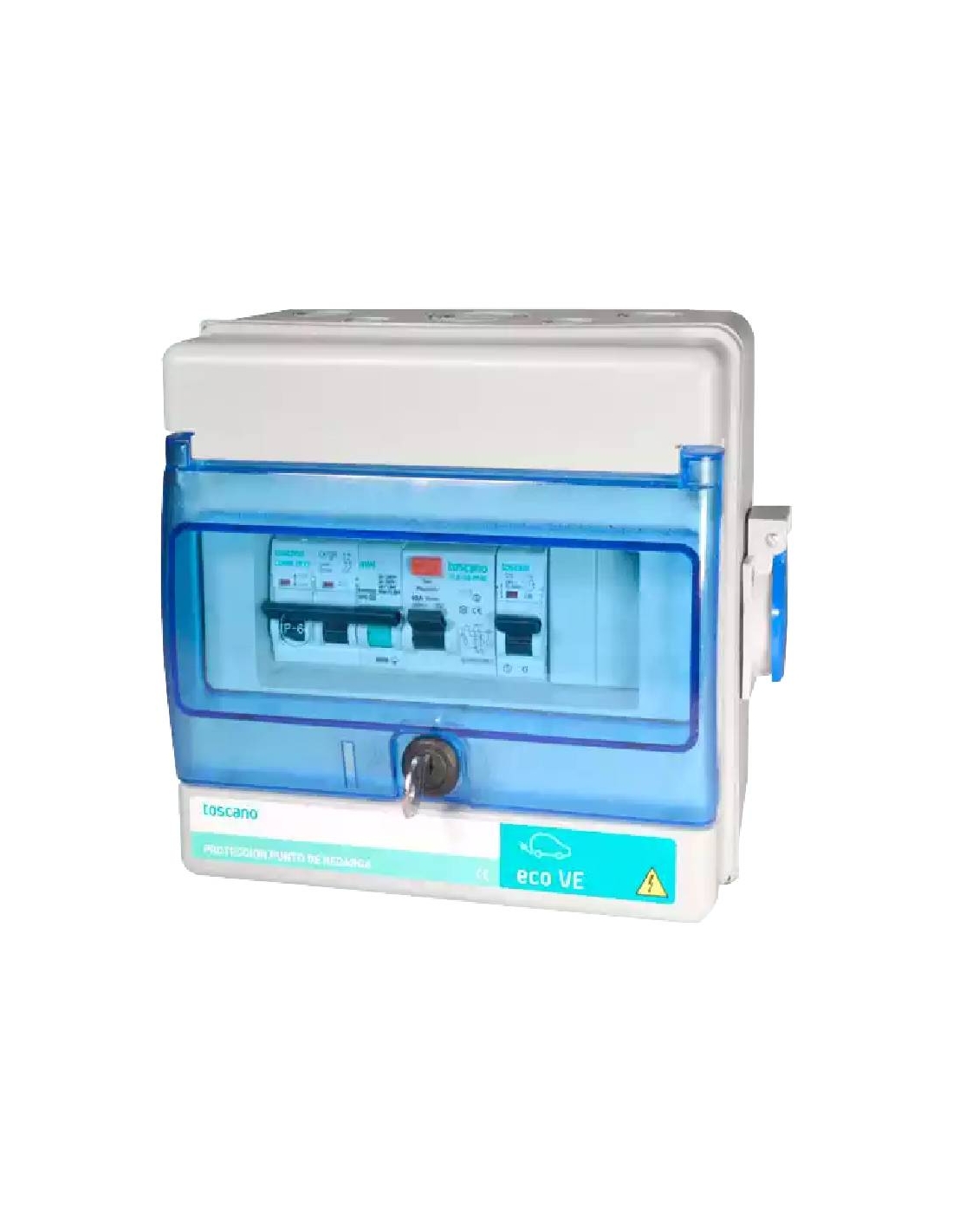

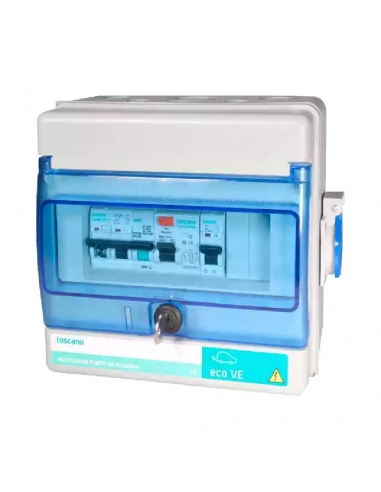

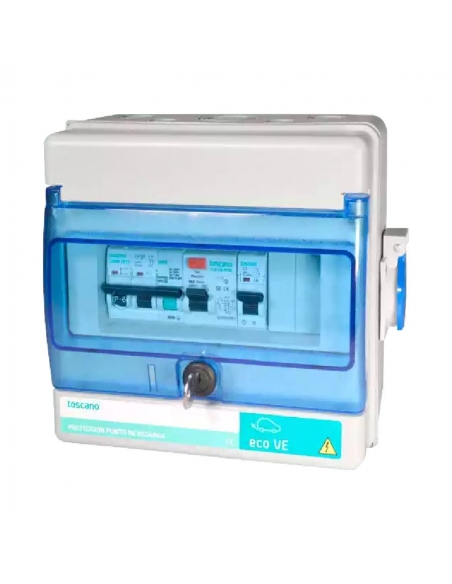

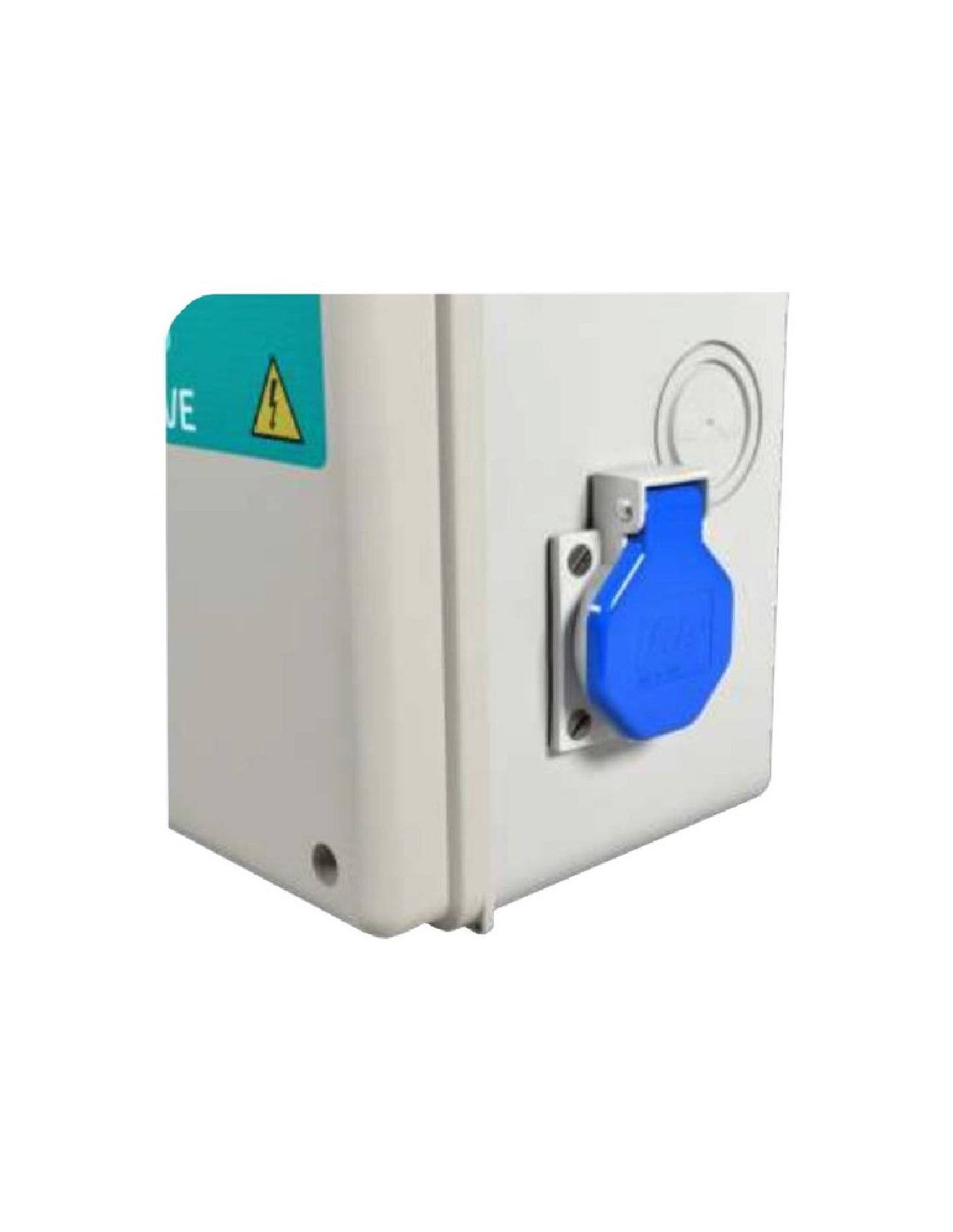

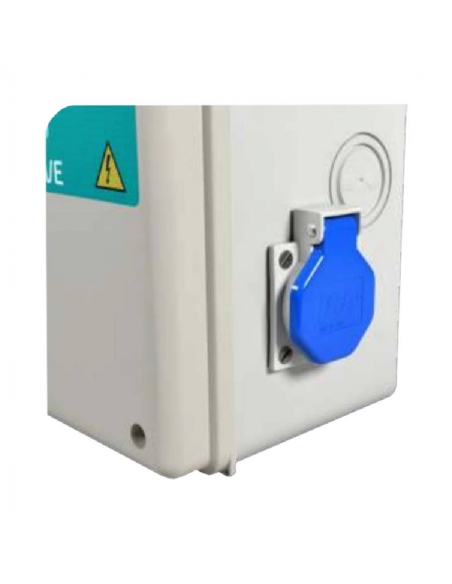

40A single-phase control and protection panel for electric vehicle charging point, according to diagram 1 and 3 of the ITC-BT-52 standard. Equipped with 40A and 10kA IGA, class "A" differential and key lock. Degree of protection IP65. Schuko plug with associated circuit breaker 10A maximum.

This panel is equipped with surge protectors, both transient and permanent.

Part number: ECO-VE-COMBI-2P40T15-S

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

The ECO-VE-COMBI control and protection panels are designed to protect electric vehicle charging stations in accordance with the ITC-BT-52 directive.

The protection panel is equipped with protection against both permanent and transient surges in the electrical network.

The protection against transient surges protects against electrical discharges filtered through the network due to a thunderstorm and impacts caused by lightning or shunting of the transformers supplying the network. This protection shunts such discharge to the ground connection, preventing it from reaching the charging station. If the protection is triggered, red indicators will be displayed on the device and reconnection will be prevented. If this is the case, the transient protection cartridge must be replaced by firmly pulling it out and replacing it with a new one. The permanent protection protects against mains voltage surges above 275 V according to EN 50550, limiting the operation of the equipment and preventing voltage above this from reaching the charging station.

General characteristics:

Manufacturer: Toscano
Part No.: ECO-VE-COMBI-2P40T15-S
Amperage: 2x40A
Power rating: 9.20kW
Rated voltage: 230Vac (L/N) 50/60Hz
Vigivolt protection consumption: 0.1VA
Maximum terminal cross-section: 25mm²
Environmental ranges: -5ºC to +40ºC / 80º RH
Degree of protection: IP65
Dimensions (mm): 245x190x155
Lock: Metal key lock

Permanent characteristics:

Tripping voltage: >270Vac
Overvoltage response time: according to norm EN 50550

IGA Characteristics

Rated current: 40A
Tripping curve: C
Breaking capacity: 10kA

Differential Characteristics:

Class A: Alternating and pulsed current
Leakage current: 30mA

Transient Characteristics:

Maximum voltage Uc: 320VAC (L/N)
Protection level Up (L/N) (N/PE):
Maximum discharge current (8/20µs) Imax (L/N) (N/PE): 15kA
Class: II

Standards:

IEC 61643-11 / EN 61643-11/ IEC 61439-123 / ITC-BT-52 / EN 50539-11:2013/A1:2014 / EN 60269-6:2011 / IEC 60364-7-712:2017 RLV / EN 60947 3:2009/A2:2015 / EN 61439-1:2012/ EN 61439-2:2012 / A11:2018

Connection :

For further information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

ECO-VE-COMBI Toscano Manual

Download (2.42MB)
