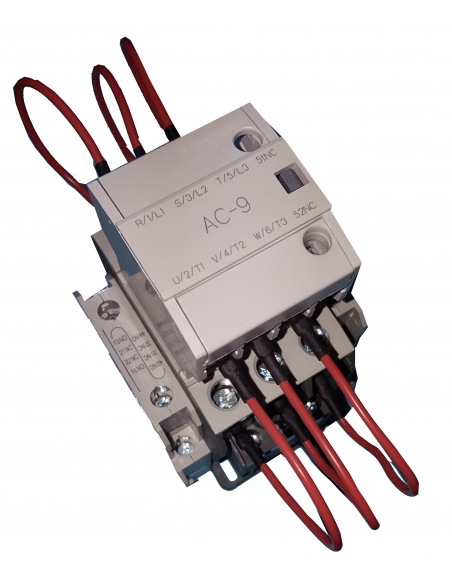

Condenser contactor 10kVar coil 230Vac
Condenser contactor 10kVar coil 230Vac

Condenser contactor 10kVar coil 230Vac

€39.46 Tax included

€32.61 tax excl.

Three-phase contactor for 10kVar (400Vac) capacitor with 230Vac coil, used for capacitor control in power factor correction units. Composed of three-phase contactor and preload unit.

Reference: 97MC9A230AC9

Esquema eléctrico contactor batería condensadores

Logotipo LS LG industrial Systems

This pack contains

No queries yet, leave the first!


Three-phase contactor for capacitor control for a maximum power of 10kVar (400Vac) with coil at 230vas used in power factor correction systems. The contactor mounts a preload unit on the front of the contactor. it also has 2 auxiliary contacts, with an open CONTACT NA and another closed NC.

This preload unit contactor prevents the destruction of contactor contacts due to the transient overcurrent produced by the capacitors.

Contactor Reference: MC-9b AC230Vac

Preload unit: AC-9

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-9b AC230Vac 50/60Hz 1a1b 3P
  • Preload unit reference: AC-9.
  • Maximum operating voltage: 400-440Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 9A.
  • Current assigned for contactor in AC1 (Ith): 25A.
  • Maximum current per set: 14A.
  • Maximum peak current: 560A.
  • Maximum power (kVar) 380-400Vac: 9.7.
  • Maximum power (kVar) 220-230Vac: 5.
  • Maximum residual voltage in the contacts: ≤50V.
  • Maximum number of maneuvers per hour: 240.
  • Electrical power: 200,000 maneuvers.
  • Auxiliary contacts: 2 sides (1 open and 1 closed)
