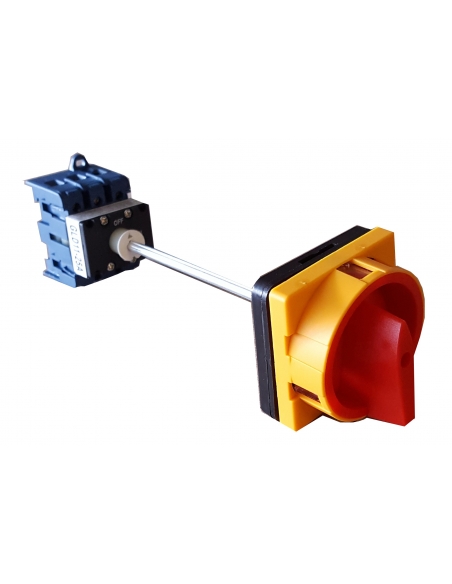

Three-phase disconnector switch 25A cabinet bottom
Three-phase disconnector switch 25A cabinet bottom
Three-phase disconnector switch 25A cabinet bottom
Three-phase disconnector switch 25A cabinet bottom

32A three-phase Switch disconnector at the bottom of the cabinet

€24.67 Tax included

€20.06 tax excl.

Rotary switch, three-phase main disconnector cabinet bottom mounting, 32 A. 0-I, with yellow-red actuation, lockable in position O.

Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and main switch in machines.

Reference: LW30-F-32-3P

Three-phase switch electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Cabinet bottom mounting rotary switch, 32A three-phase 3-pole disconnector , to be used as a main switch in machinery, AC motors, water and ventilation pumps, and general use. It has a high separation distance between contacts and a very fast response, this provides a very good response even in direct current circuits.

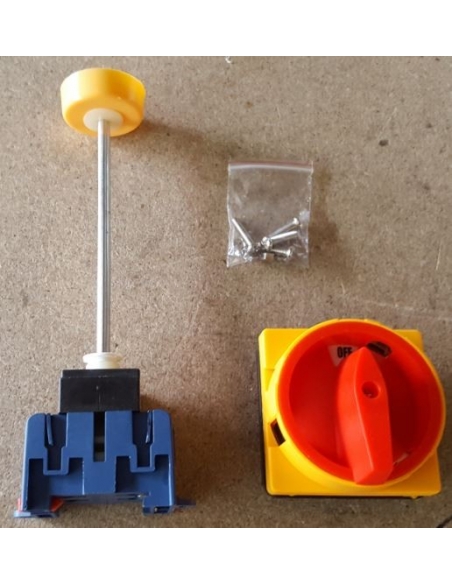

Cabinet bottom mounting, on DIN rail, red-yellow main control, for panel or door mounting, includes clutch to operate the switch.

Characteristics:

  • Manufacturer/Supplier: Denor
  • Reference: LW30-F-32-3P
  • Number of switch poles: 3.
  • Rated voltage Ue: 690V.
  • Rated current Ie (AC21A): 25A.
  • Rated power category AC23A 230Vac ~ III: 4 Kva.
  • Rated power category AC23A 400Vac ~ III: 7.5 Kva.
  • Rated power category AC3 230Vac ~ III: 3 Kva.
  • Rated power category AC3 400Vac ~ III: 5.5 Kva.
  • Nominal interrupting capacity: 10 kA.
  • Number of maneuvers / hours: 50.
  • Mechanical durability: 60,000 maneuvers.
  • Switch mounting: transpanel, DIN rail, front control with clutch.
  • Protection degree: IP-54 front.
  • Standards: IEC 60947-3

LW30-F

Material for professional use, install in compliance with the regulations in force at the installation site.
