Tretrapolar disconnector switch (4P) 100A cabinet bottom

€66.56 Tax included

€55.01 tax excl.

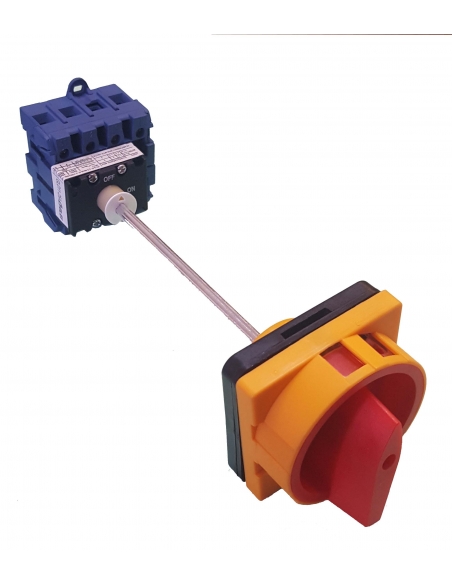

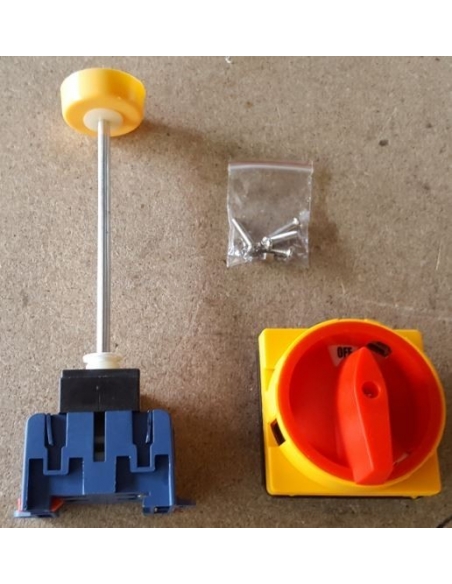

Rotary switch, main disconnector 4 poles (tetrapolar) mounting cabinet bottom, 100 A. 0-I, with yellow-red drive, lockable in position O.

Suitable for interruption, connection and switching of electrical circuits as well as main switch in machines.

Ref: LW30-F-100-4P

Esquema interruptor eléctrico 4 polos


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Rotary switch mounting cabinet bottom, tretrapolar disconnector, 4 poles, 100A,to be used as main switch in machinery, AC motors, water and ventilation pumps, and general use. It has a high distance of separation between contacts and a very fast response, this provides a very good response even in DC circuits.

Mounting cabinet bottom, on DIN rail, red-yellow main control for panel or door mounting, incorporates clutch to operate on the switch.

Features:

  • Manufacturer/Supplier: Denor
  • Ref: LW30-F-100-4P
  • Number of switch poles: 4.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 100A.
  • Assigned power category AC23A 230Vac x III: 22 Kva.
  • Assigned power category AC23A 400Vac x III: 22 Kva.
  • Assigned power category AC3 230Vac x III: 18.5 Kva.
  • Assigned power category AC3 400Vac x III: 30 Kva.
  • Nominal interrupt capacity: 10 kA.
  • Number of manoeuvres / hours: 50.
  • Mechanical durability: 60,000 maneuvers.
  • Switch mounting: transpanel, DIN rail, front control with clutch.
  • Degree of protection: IP-54 front.
  • Standards: IEC 60947-3
LW30-F

Material for professional use, install in compliance with the regulations in force at the installation site.
