€4.77 Tax included

€3.88 tax excl.

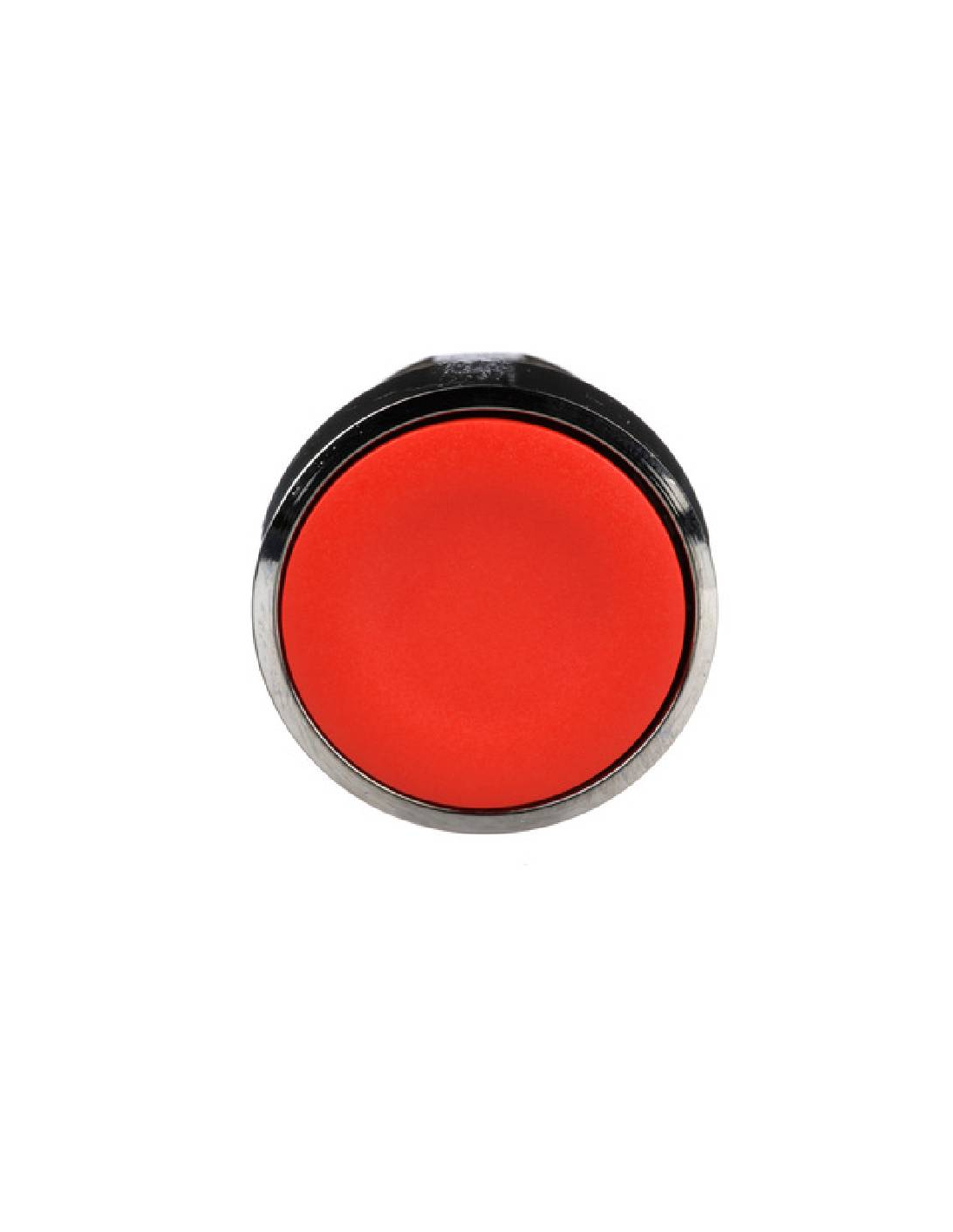

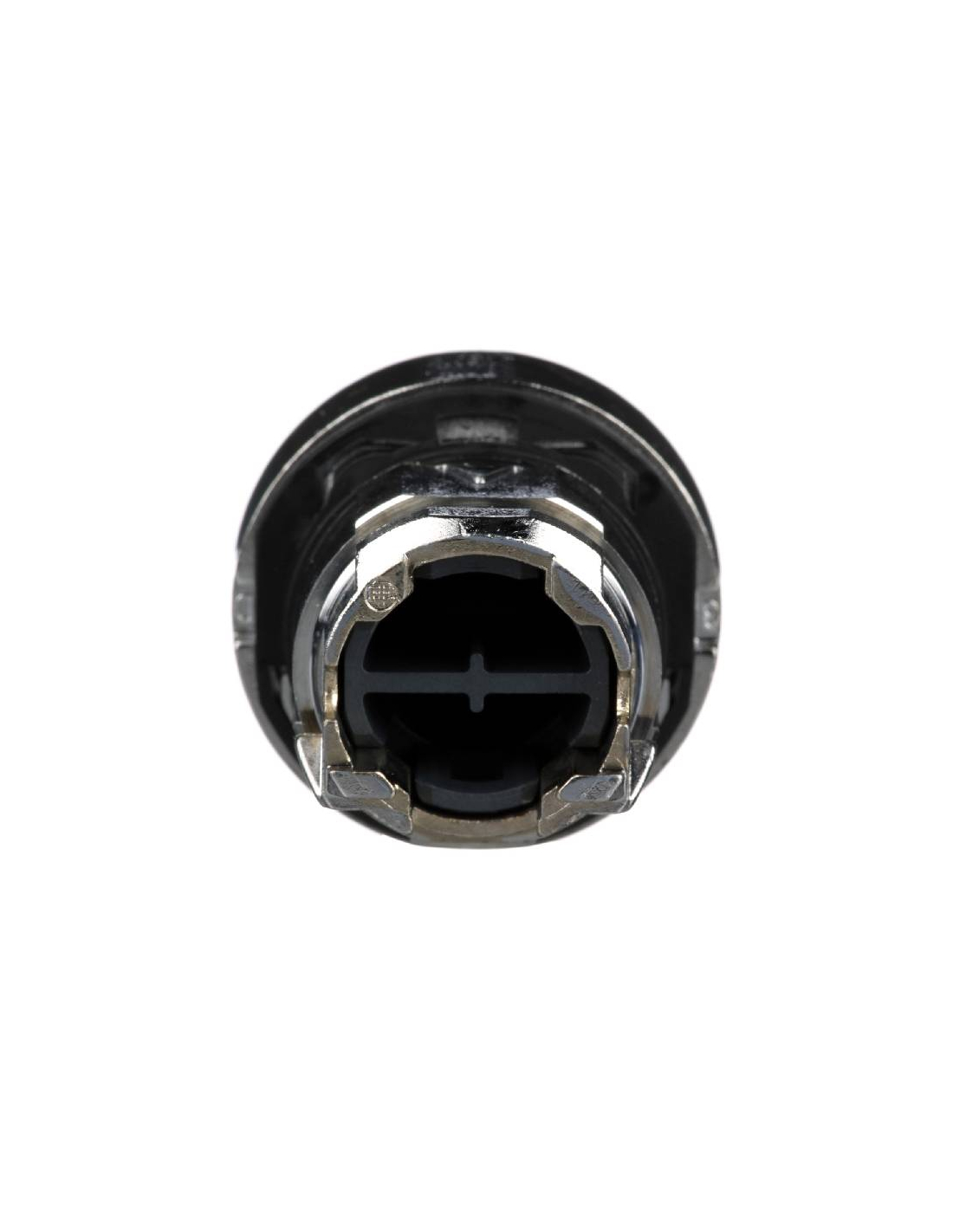

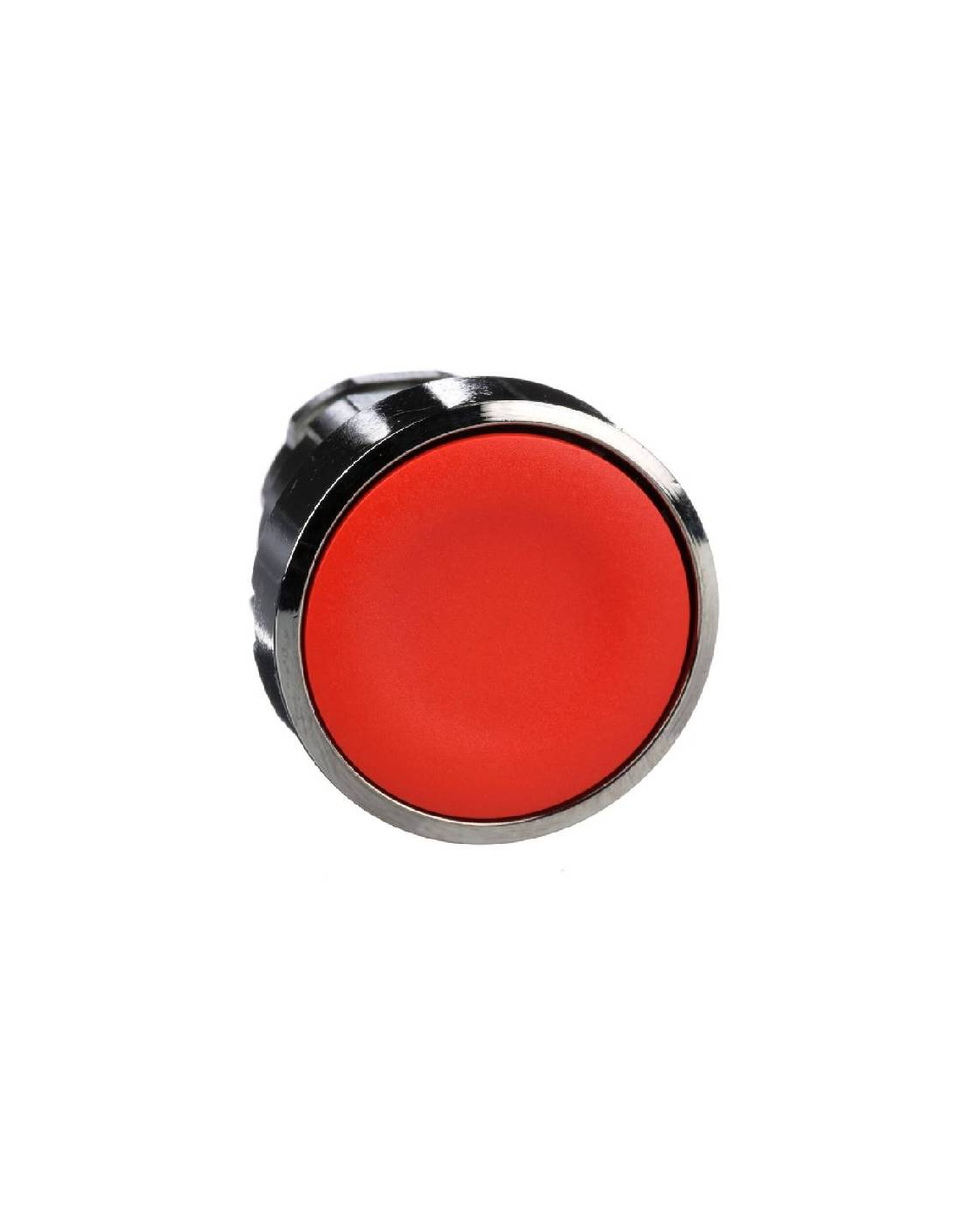

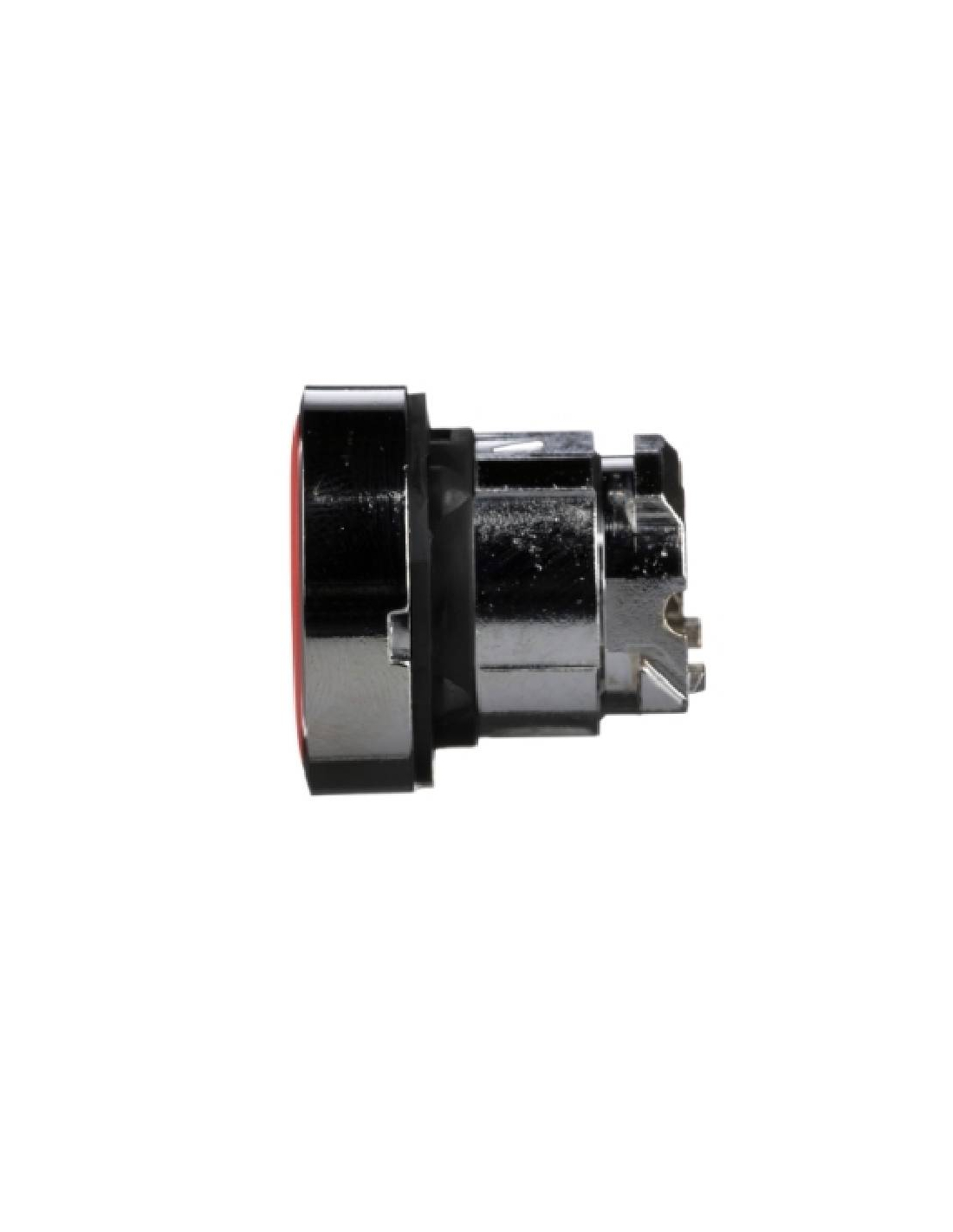

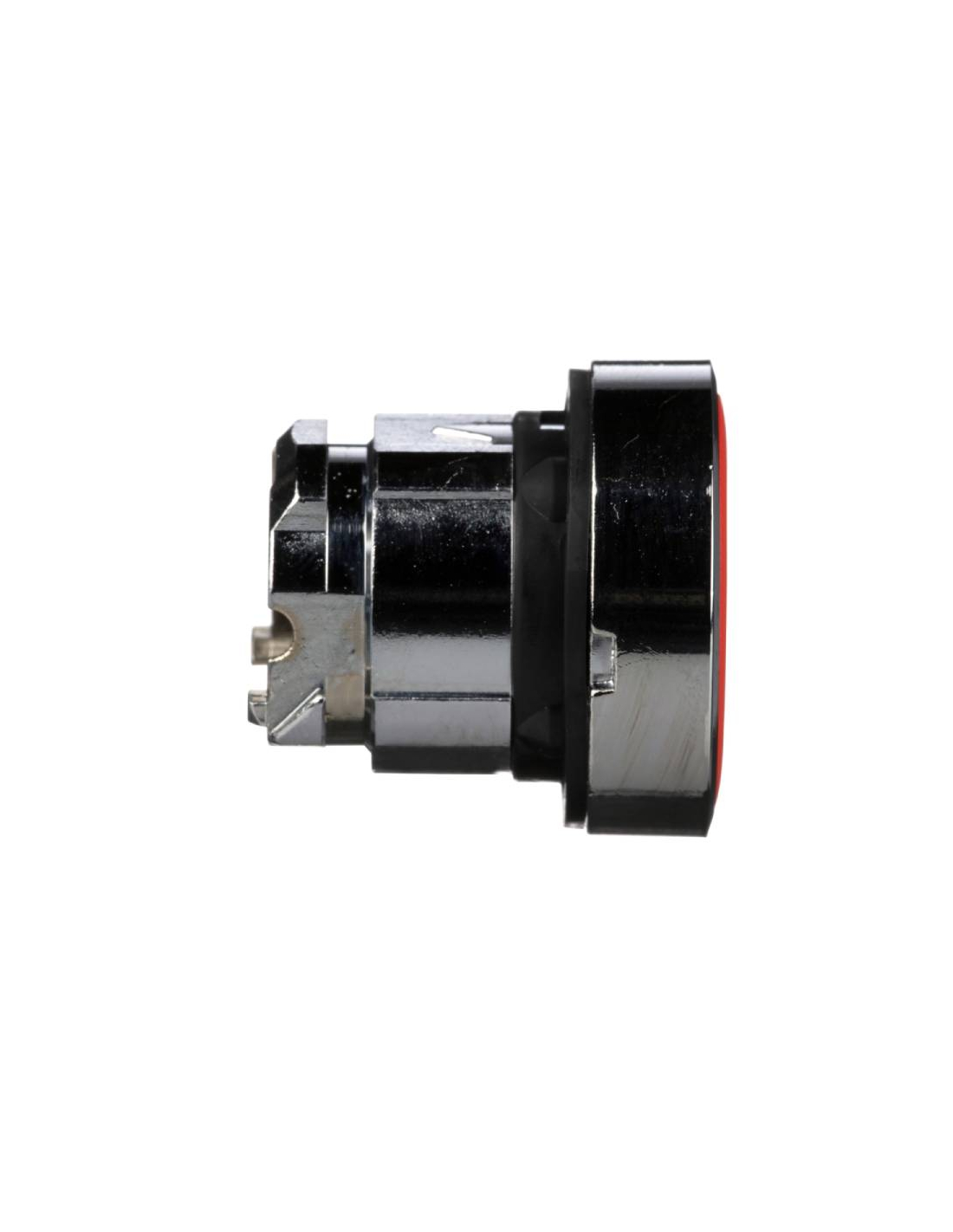

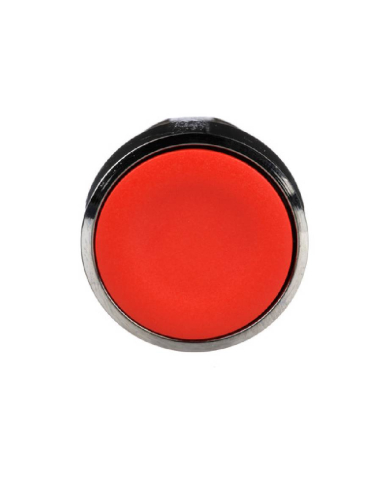

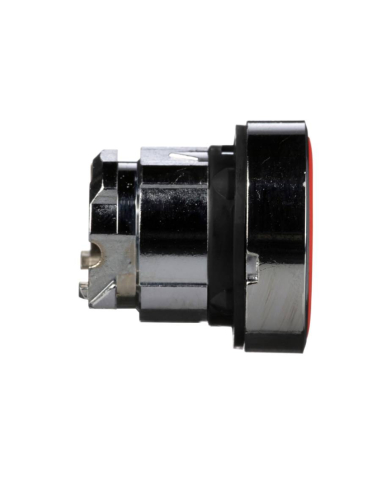

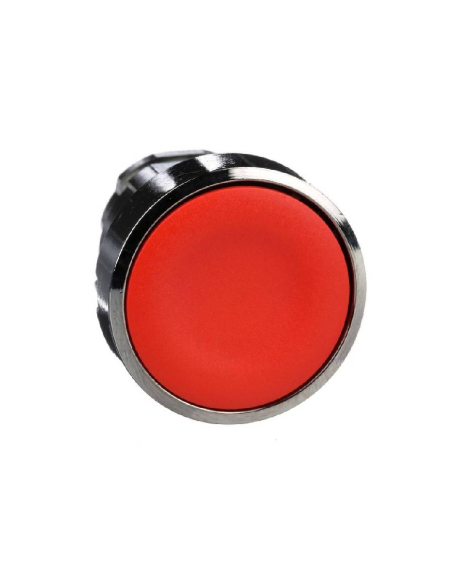

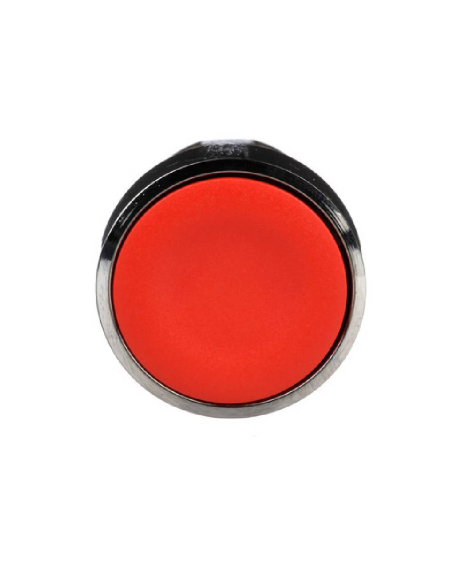

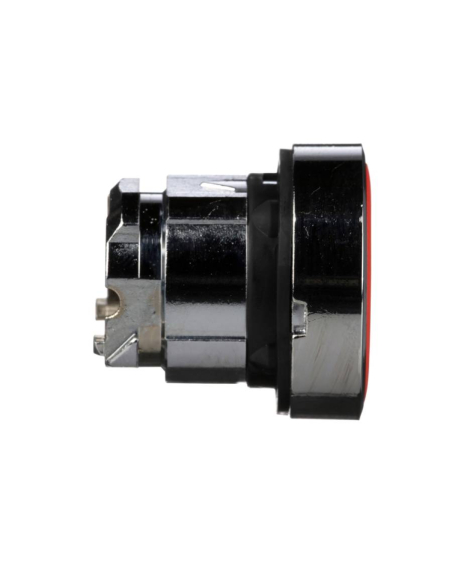

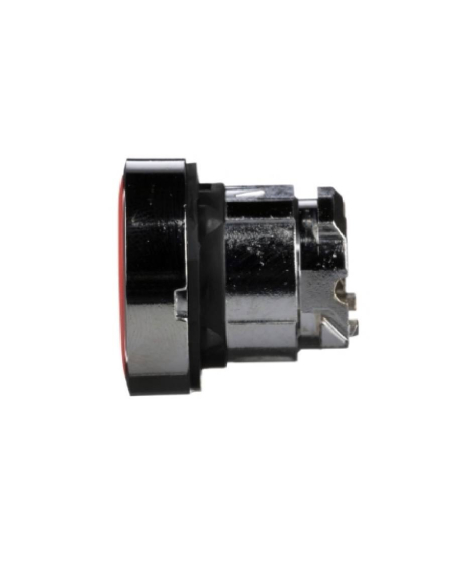

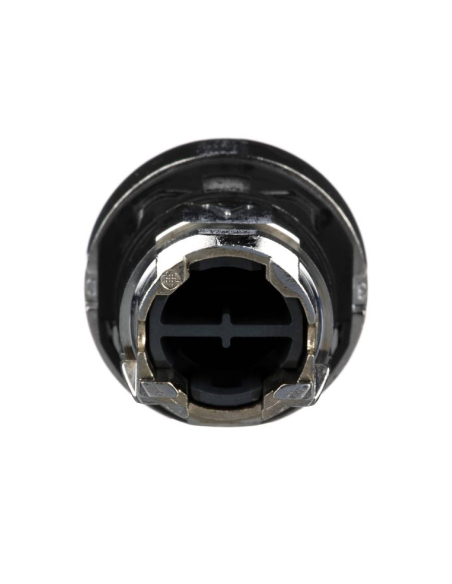

Red push button head with a diameter of 22 mm. Manufactured with metal body and silver plated chrome bezel, making it ideal for applications requiring high resistance to impact and vibration.


Part number: ZB4BA4



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Flush metal push button head in red color, diameter 22 mm. Based on a spring-loaded impulse/return mechanism (instantaneous action), it features an ergonomic interface for machine and process control. Easily replaced on complete pushbutton units and compatible contact blocks by snap-in mounting. Installs in standard 22.5 mm diameter knockouts.

Its design features high impact, dust, water and vibration resistance due to its IP66 degree of protection, making it suitable for operation in harsh environments. Its chrome-plated bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation.

No contacts are included in the scope of delivery, these must be purchased separately.



Characteristics:

  • Manufacturer: SCHNEIDER
  • Ref. No.: ZB5AA4
  • HARMONY XB4 SERIES
  • Operator profile: Flush red, without marking
  • Operator type: Spring return
  • Mounting diameter: 22,5mm
  • Mechanical durability: 10000000 cycles
  • Operating Temperature: -40...70C
  • Overvoltage category: Class I according to IEC 60536
  • IP degree of protection: IP66 according to IEC 60529
  • IK degree of protection: IK06 according to IEC 50102

Dimensions




    For further information, you can download the data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
