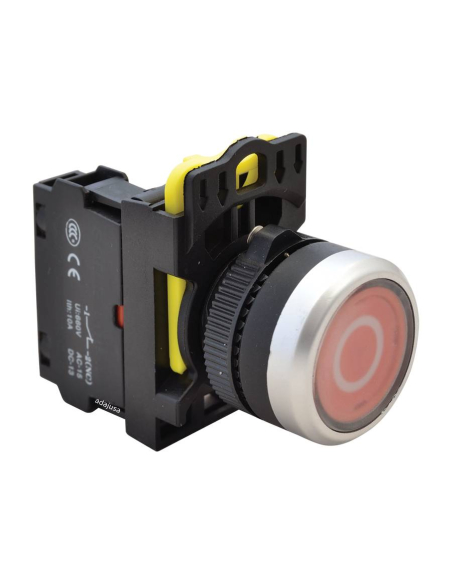

Flush-mounted red plastic illuminated pushbutton with "O" inscription and one closed (NC) contact, 22 mm in diameter. This snap-action pushbutton is made of high-strength plastic and features a modern design incorporating a silver bezel. It is suitable for mounting on electrical control panels for machinery and electrical control boxes in general. The pushbutton head bracket allows for mounting up to two contacts, both open and closed. This electric pushbutton is typically used as a cycle stop, machine stop, or general stop button.
Designed for intensive applications requiring high operational reliability and ease of assembly. The pushbutton can be installed on panels, electrical control cabinets, and control boxes for machinery, air conditioning, industrial, and general applications. Compliant with IEC 60947. It features high protection on the front side, IP65.
The supply includes the complete pushbutton with a closed contact and the lamp holder with a BA9S LED bulb. Additional contacts can be added, up to a maximum of two.
Characteristics:
- Manufacturer: TRACON
- Reference: NYG3-P2L
- Head color: Red
- Head inscription: "O"
- Cap type: Ba9s
- Bulb voltage: 230V
- Mounting hole: 22mm
- Material: Plastic
- Contact : 1 closed (NC). Possibility of mounting additional contacts
- Nominal working current Ie (AC 1, 230V): 6A
- Nominal working current Ie (AC 15, 230V): 3A
- Nominal working current Ie (DC 13, 250V): 0.27A
- Nominal insulation voltage Ui: 660V
- Mechanical durability: 1,000,000 cycles
- Operating temperature: -25 to +40ºC
- Protection class: IP65 (from the front side)
- Regulation: EN 60947-1, EN 60947-5-1
Professional use material, install in compliance with the regulations in force at the place of installation.
