Valve retention non-return vacuum 1 1/2" europe : ADAJUSA : price

Valve retention non-return vacuum 1 1/2" europe : ADAJUSA : price

Valve retention 1 1/2 - Aignep

Delivery 3-5 days.

€25.53 Tax included

€20.76 tax excl.

6036 1 1/2

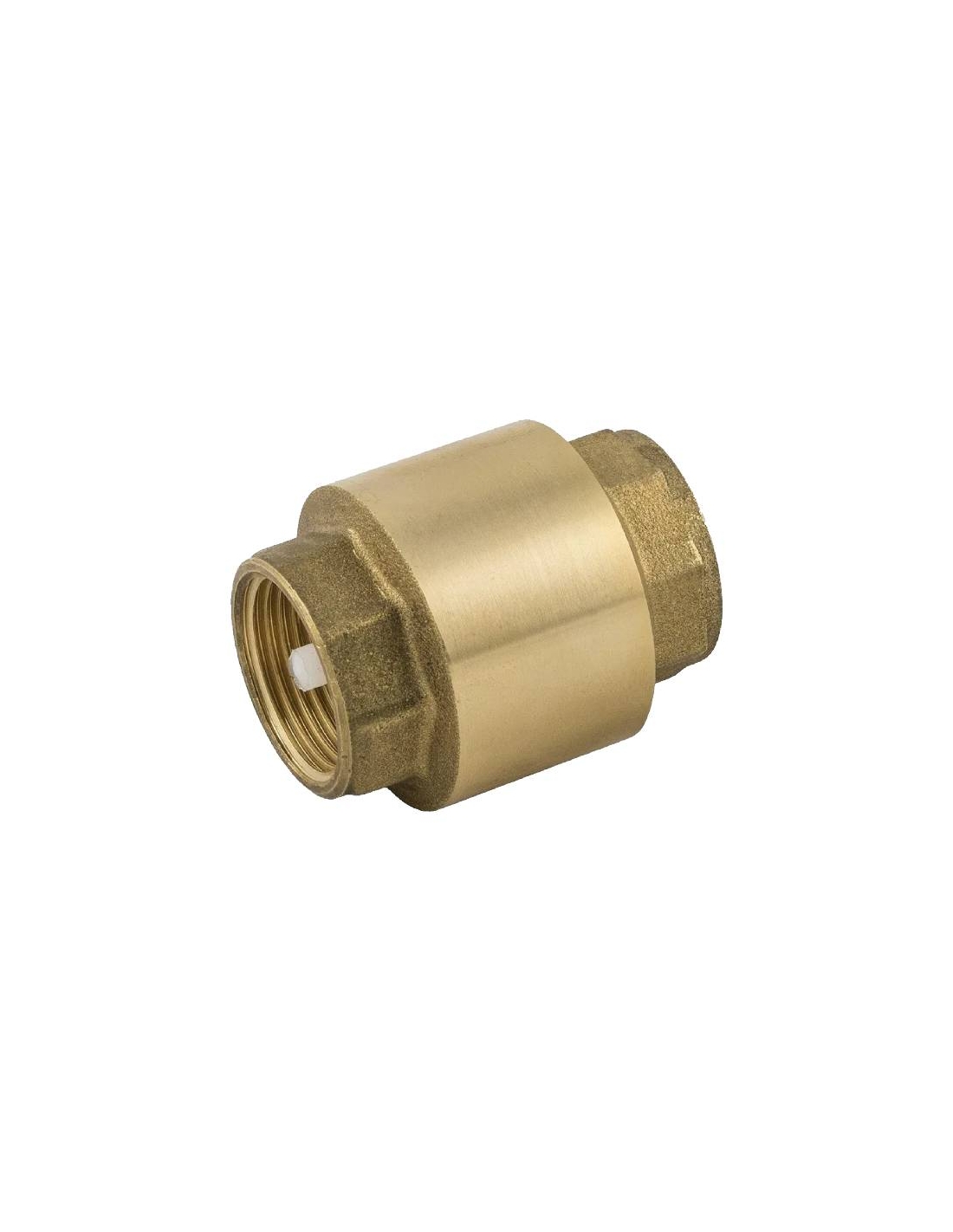

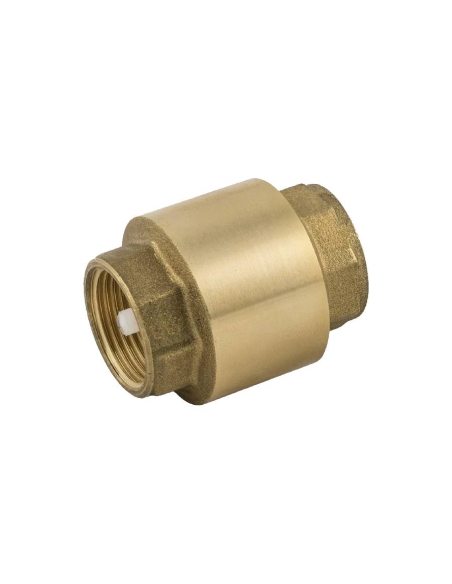

Valve retention non-return 1" 1/2, metallic, GHILUX series. Allows the passage of air, vacuum or fluid, only in one of the two directions of travel.

Made of chrome-plated brass with NBR seals. Female thread on both sides.

Series: GHILUX
Reference: 6036 1" 1/2

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Valve non-return (retention) of 1" 1/2 metallic GHILUX series with female threaded body at both ends, allows the passage of air, vacuum or fluid, only in one of the two directions of travel.

These retention valves are made of chrome-plated brass with NBR sealing gaskets. They can be installed in any position and with a maximum working temperature of 90ºC.

They can be used for pneumatic applications, vacuum or non-corrosive and non-flammable fluids. They should also not be installed in applications for food use.

6036material

Technical characteristics:

Manufacturer: Aignep
Part number: 6036 1" 1/2
Thread size: Female G 1" 1/2
Material: brass
Seals: NBR
Spring: stainless steel
Maximum temperature: 90ºC
Pressure: 10 bar
Opening pressure: 15,9 mbar
Application fluids: Compressed air / water / oil

Dimensions:

6036dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
